Cabin Temperature Sensor / Switch: Testing and Inspection

In-car Temperature Sensor Test




Check for a change in resistance by heating or cooling the sensor with a hair drier.

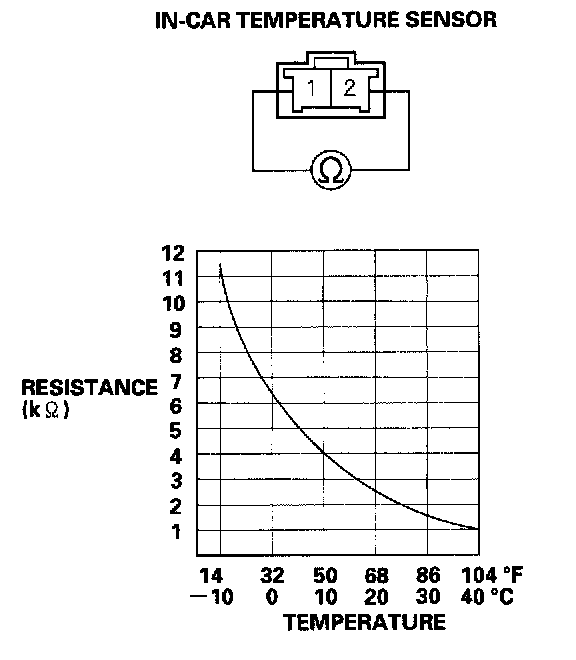

Compare the resistance reading between the No.1 and No.2 terminals of the in-car temperature sensor with the specifications shown in the graph; the resistance should be within the specifications.
