FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Acura
>>
2002
>>
RSX L4-2.0L (VTEC)
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Sensors and Switches - Restraints and Safety Systems
>>
Seat Belt Buckle Switch
>>
Locations
>>
Connector Locations
Connector Locations

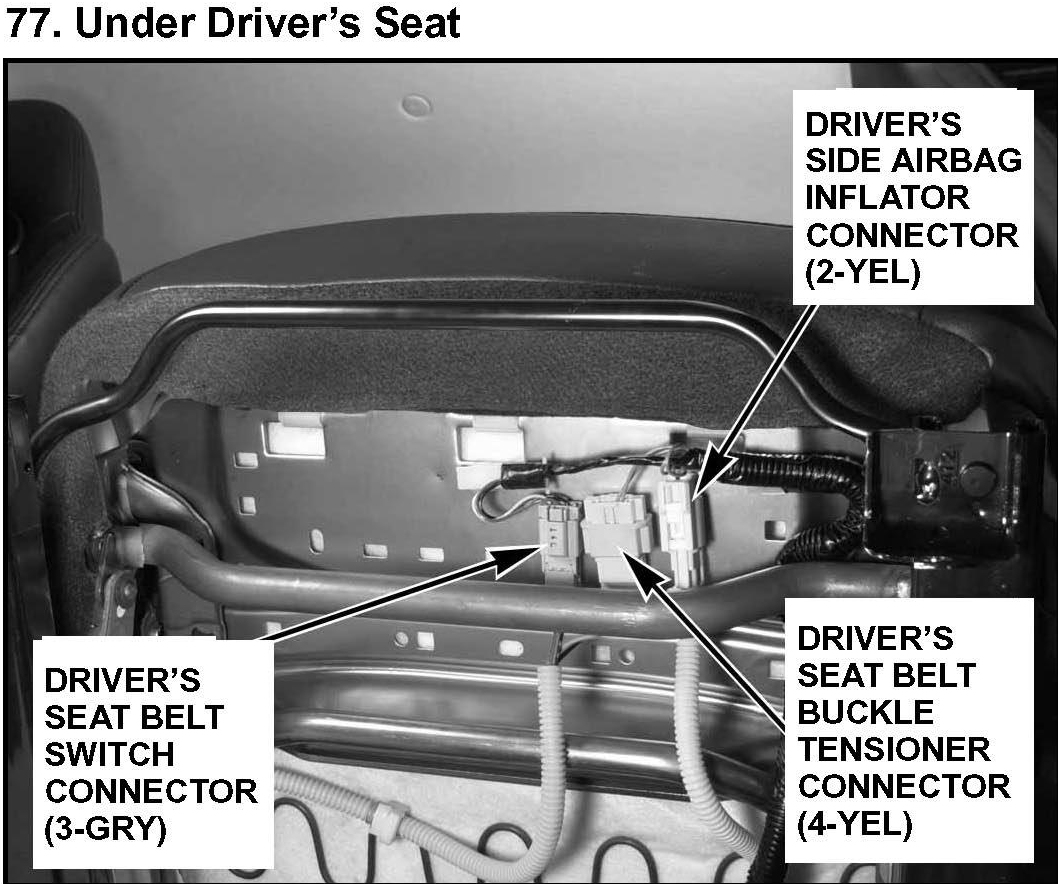

77. Under Driver's Seat:

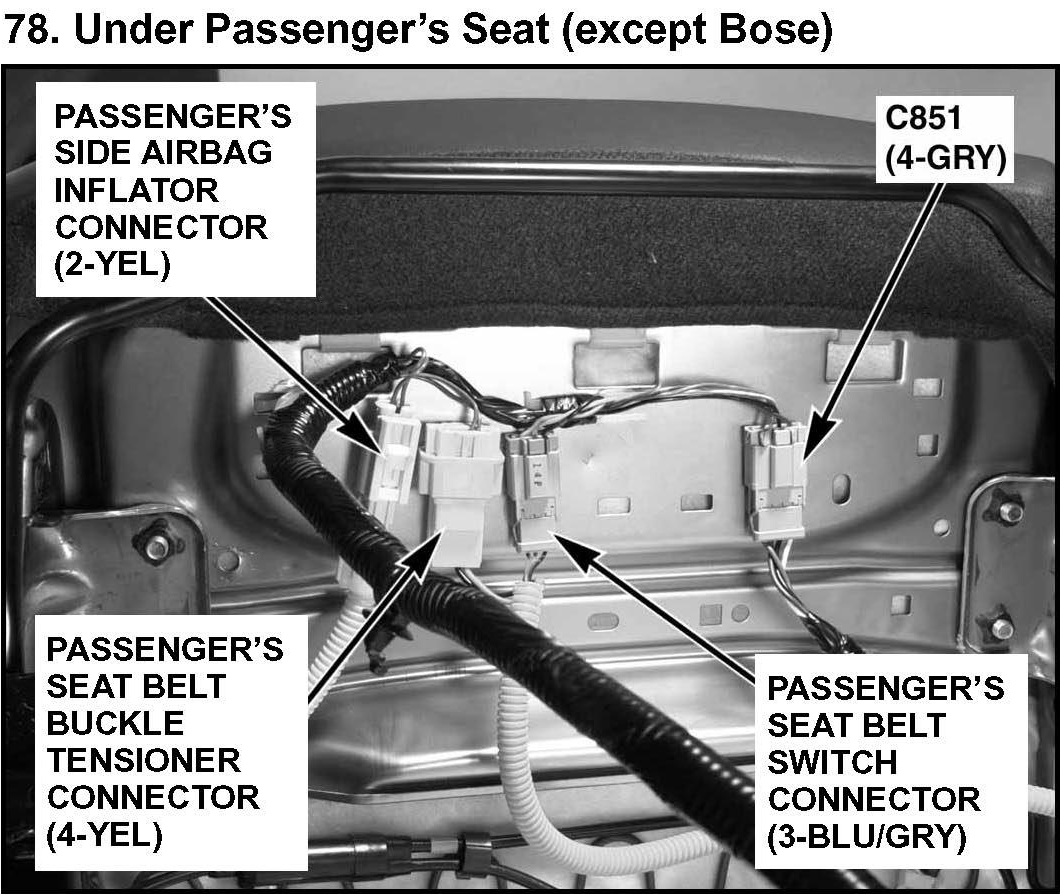

78. Under Passenger's Seat (except Bose):

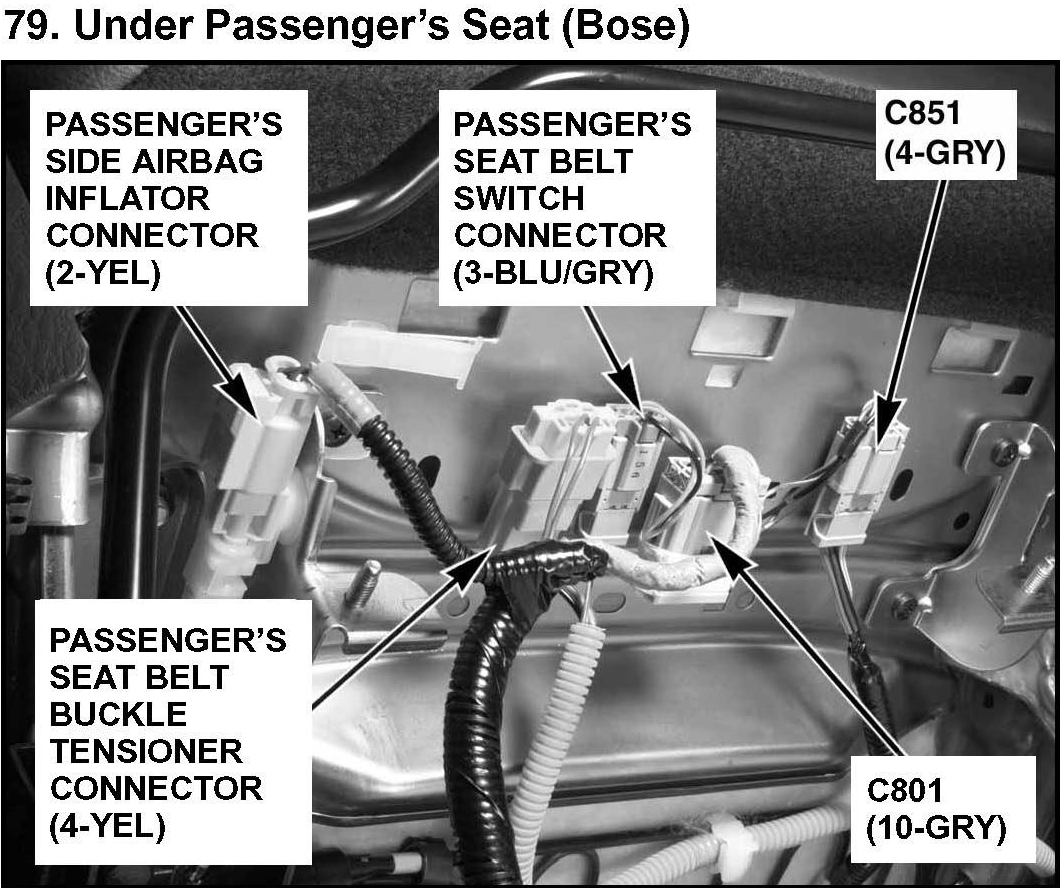

79. Under Passenger's Seat (Bose):
