Seat Belt Buckle Switch
>>
Locations
>>
Component Locations
Component Locations

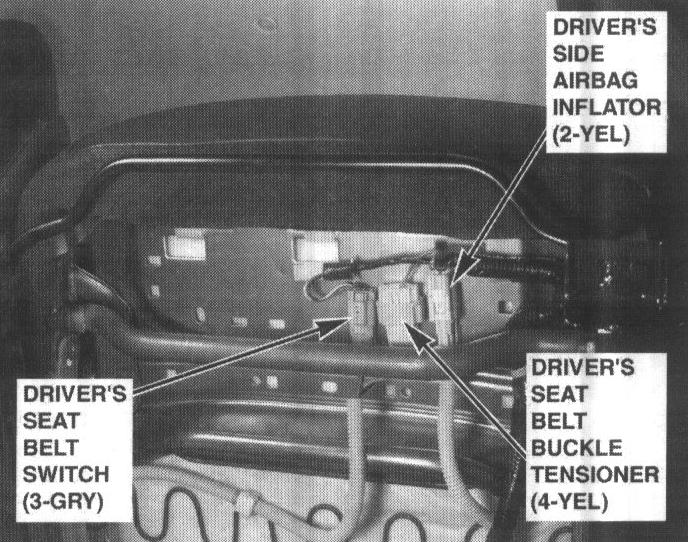

77. Under Driver's Seat:

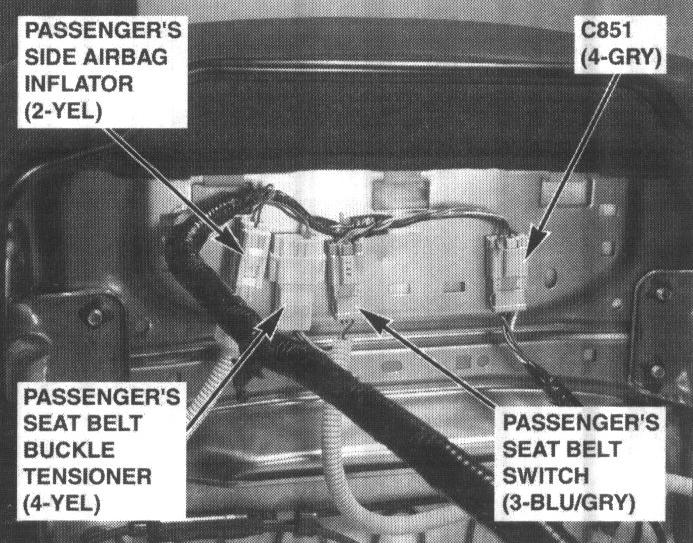

78. Under Passenger's Seat (Without Bose):

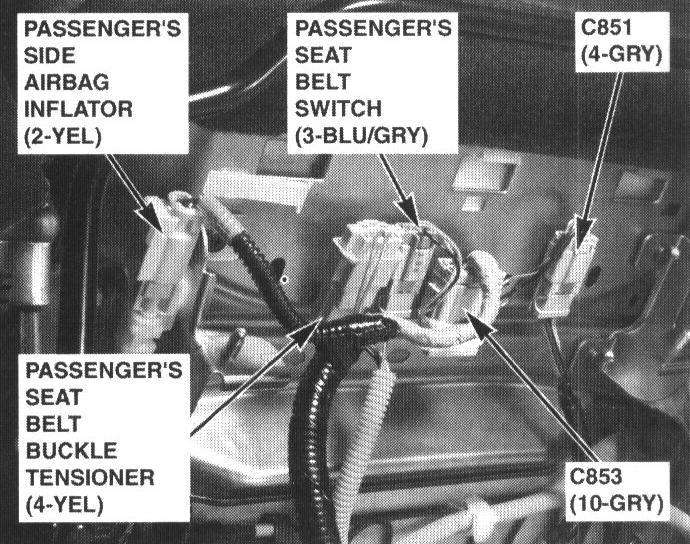

79. Under Passenger's Seat (With Bose):
