Seat Belt Buckle Switch: Diagrams

123. Seat Belt Switch, Driver's:

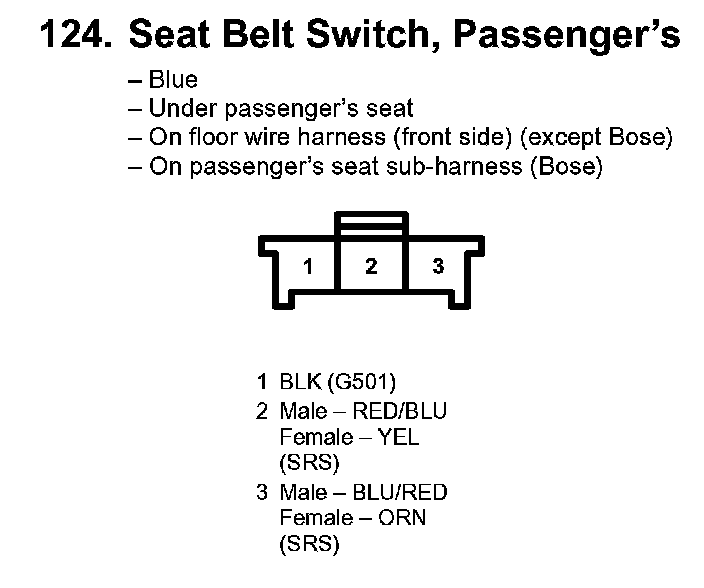

124. Seat Belt Switch, Passenger's:
