Component Locations

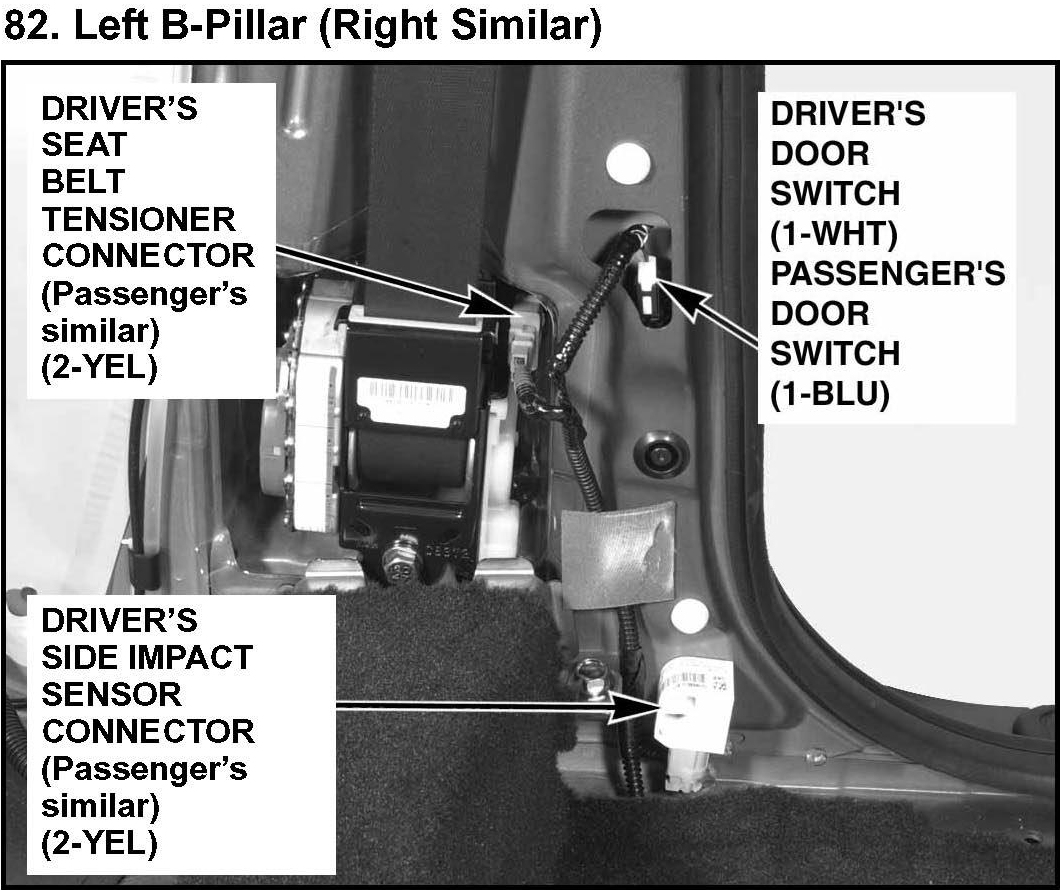

82. Left B-pillar (Right Similar):

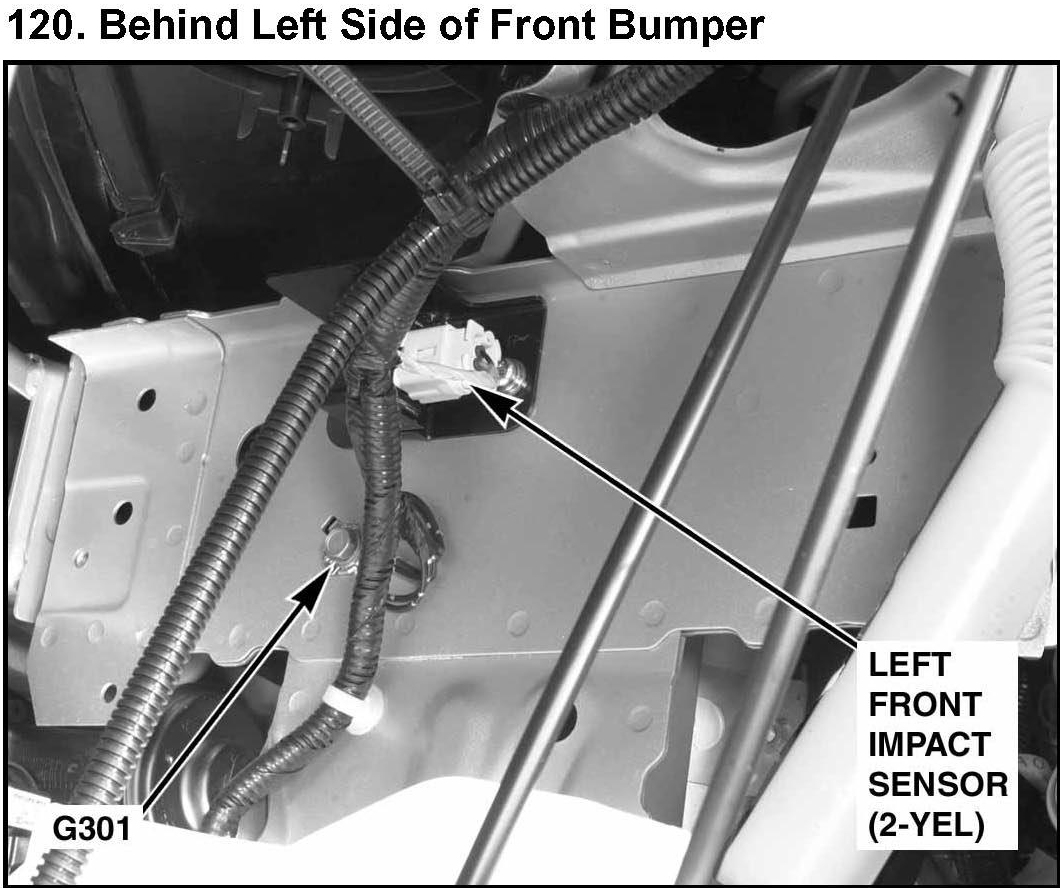

120. Behind Left Side Of Front Bumper:

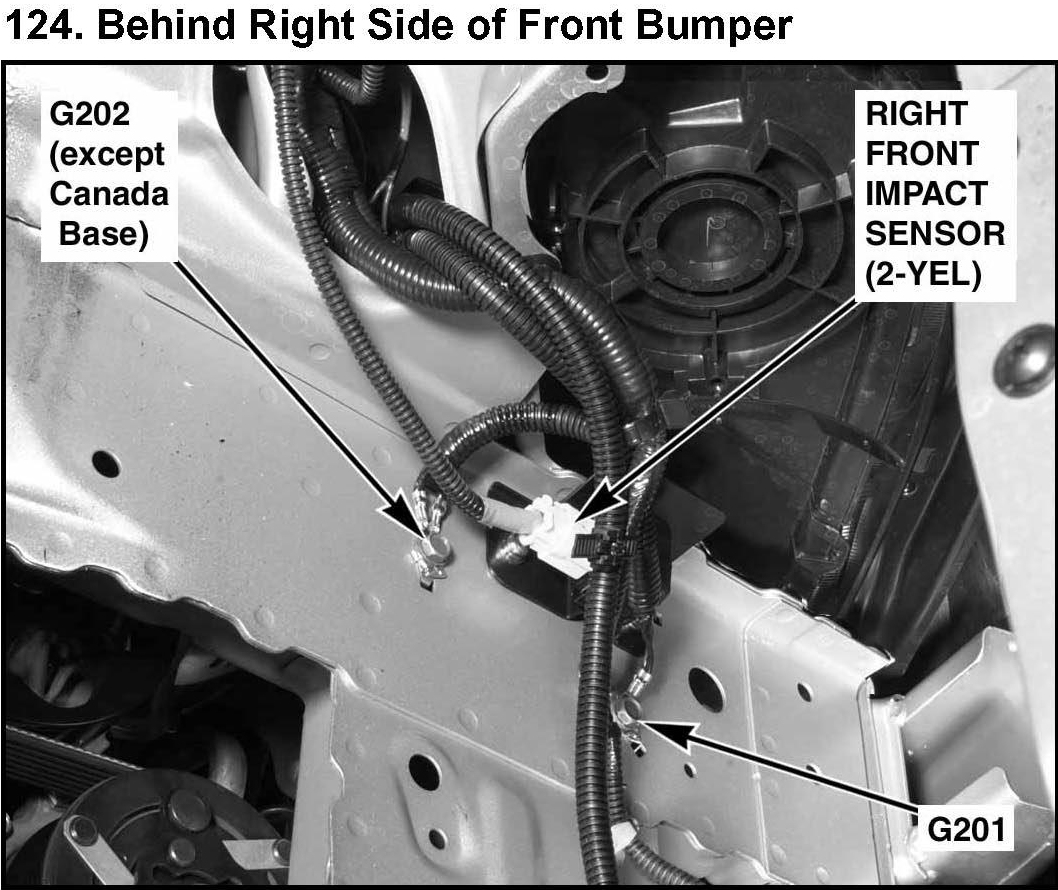

124. Behind Right Side Of Front Bumper:
