SRS Indicator Stays On When In "SCS" Menu Method
The SRS Indicator Stays On When in "SCS" Menu MethodNOTE:
- Inability to retrieve DTCs with the PGM Tester. Retrieve the flash codes with the SCS mode.
- A new SRS unit must sense the entire system is OK before completing its initial self-test. The most common cause of an incomplete self-test
Is the failure to replace all deployed pants after a collision, in particular, seat belt tensioners and seat belt buckle tensioners.
- An incomplete self-test prevents the PGM Tester from retrieving DTCs, although flash codes are available in the Tester's SCS mode.
1. Erase the DTC memory.
Does the SRS indicator go off when the DTC memory is erased?
YES - Go to step 42.
NO - Go to step 2.

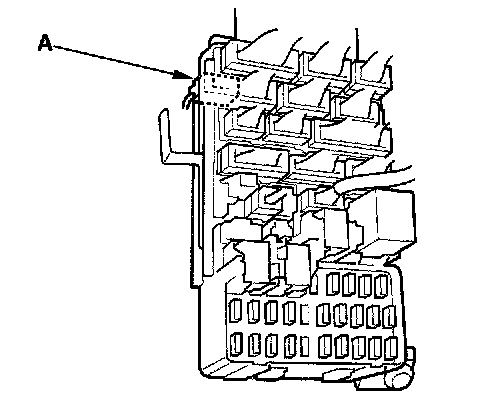

2. Check the No.13 (10 A) fuse in the under-dash fuse/relay box.
Is the fuse OK?
YES - Go to step 19.
NO - Go to step 3.
3. Replace the No.13 (10 A) fuse in the under-dash fuse/relay box.
4. Turn the ignition switch ON (II) and wait for 30 seconds. Then turn the ignition switch OFF.
5. Check the No.13 (10 A) fuse in the under-dash fuse/relay box.
Is the fuse OK?
YES - The system is OK at this time.
NO - Go to step 6.
6. Replace the No.13 (10 A) fuse in the under-dash fuse/relay box.
7. Disconnect the battery negative cable, and wait for 3 minutes.

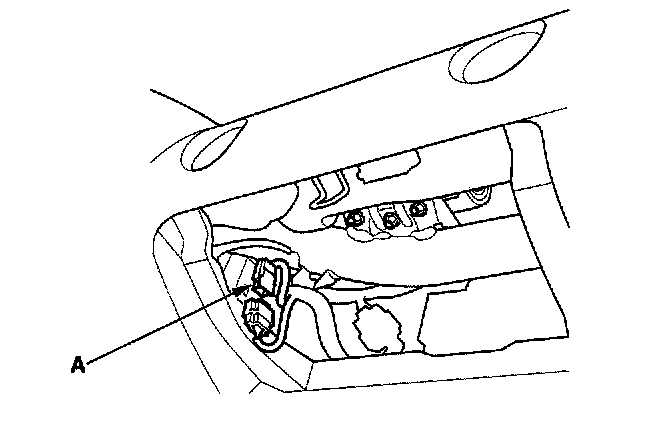

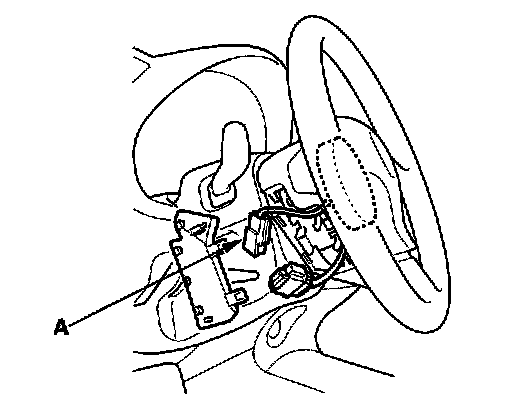

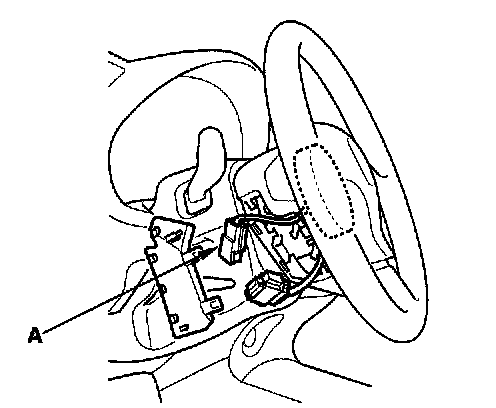

8. Disconnect the driver's airbag 4P connector (A).

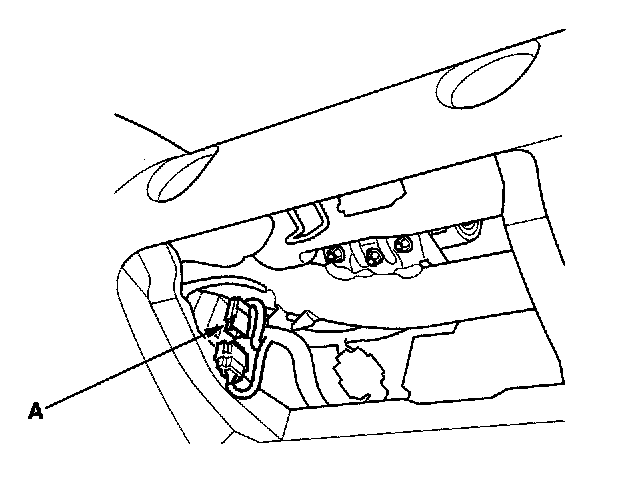

9. Disconnect the front passenger's airbag 4P connector (A).

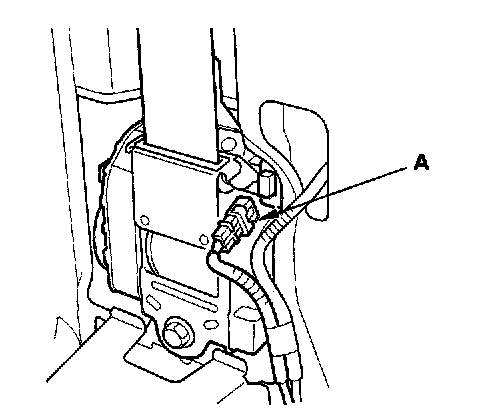

10. Disconnect both seat belt tensioner 2P connectors (A).

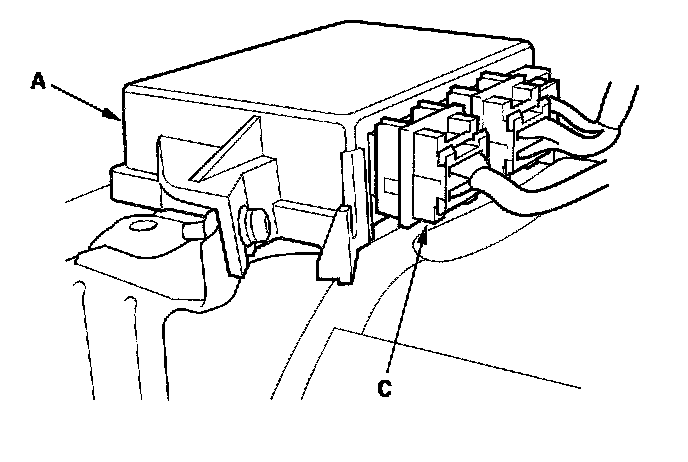

11. Disconnect SRS unit connector C (18P) from the SRS unit (A).
12. Reconnect the negative battery cable.
13. Turn the ignition switch ON (II), and wait for 30 seconds. Then turn the ignition switch OFF.
14. Check the No.13 (10 A) fuse in the under-dash fuse/relay box.
Is the fuse OK?
YES - Short to ground in the SRS unit; replace the SRS unit.
NO - Go to step 15.
15. Replace the No.13 (10 A) fuse in the under-dash fuse/relay box.

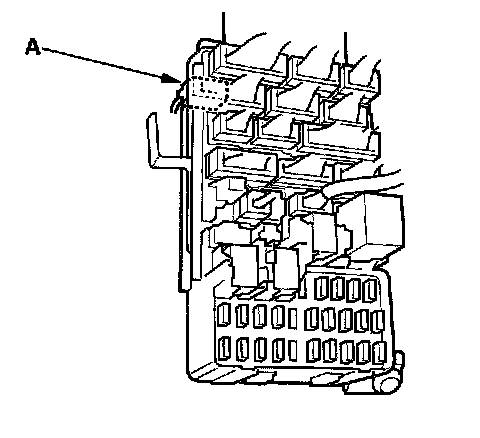

16. Disconnect the dashboard wire harness 2P connector (A) from the under-dash fuse/relay box.
17. Turn the ignition switch ON (II), and wait for 30 seconds. Then turn the ignition switch OFF.
18. Check the No.13 (10 A) fuse in the under-dash fuse/relay box.
Is the fuse OK?
YES - Short to ground in the dashboard wire harness; replace the dashboard wire harness.
NO - Repair the short to ground in the under-dash fuse/relay box No.13 (10 A) fuse line; replace the under-dash fuse/relay box or repair it.
19. Disconnect the battery negative cable, and wait for 3 minutes.
20. Disconnect the driver's airbag 4P connector (A).
21. Disconnect the front passenger's airbag 4P connector (A).
22. Disconnect both seat belt tensioner 2P connectors (A).
23. Disconnect SRS unit connector C (18P) from the SRS unit (A).
24. Reconnect the battery negative cable.

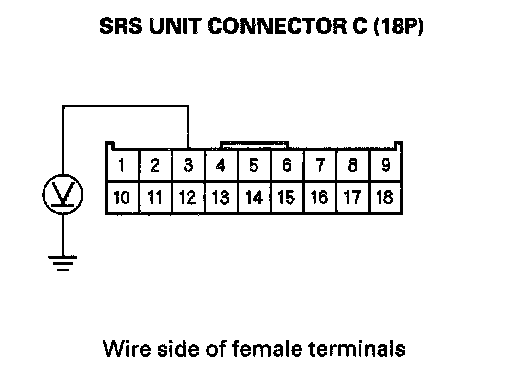

25. Connect a voltmeter between the No.3 terminal (+) of SRS unit connector C (18P) and body ground. Turn the ignition switch ON (II), and measure the voltage. There should be battery voltage.
Is there battery voltage?
YES - Go to step 29.
NO - Go to step 26.
26. Turn the ignition switch OFF.
27. Disconnect the dashboard wire harness 2P connector (A) from the under-dash fuse/relay box.

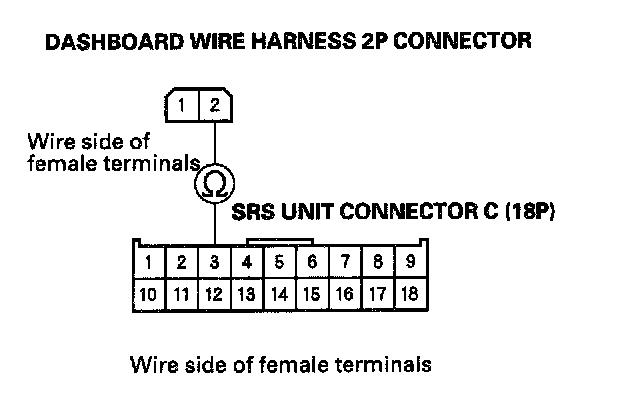

28. Check resistance between the No.3 terminal of SRS unit connector C (18P) and the No.2 terminal of the dashboard wire harness 2P connector. There should be 0 - 1.0 Ohms.
Is the resistance as specified?
YES - Open in the under-dash fuse/relay box or poor contact at the dashboard wire harness 2P connector; check the connection. If the connection is OK, replace the under-dash fuse/relay box.
NO - Open in the dashboard wire harness; replace the dashboard wire harness.
29. Turn the ignition switch OFF.

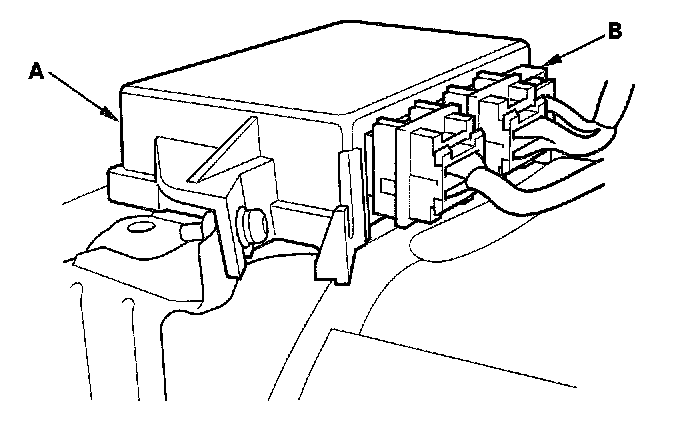

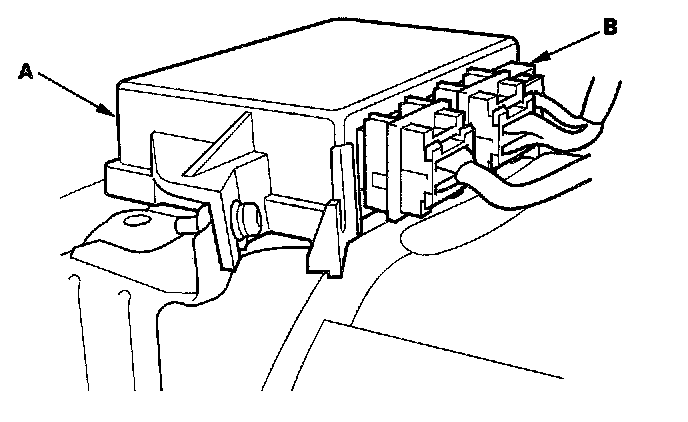

30. Disconnect SRS unit connector B (8P) from the SRS unit (A).

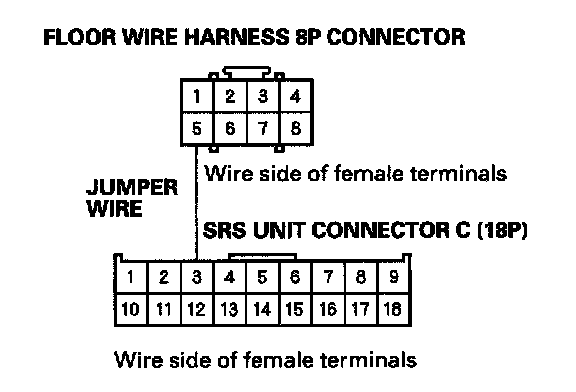

31. Connect the No.3 terminal of SRS unit connector C (18P) and the No.5 terminal of the floor wire harness 8P connector with a jumper wire.
32. Turn the ignition switch ON (II).
33. Check the SRS indicator.
Does the SRS indicator go off?
YES - Faulty SRS unit; replace the SRS unit.
NO - Go to step 34.
34. Turn the ignition switch OFF.
35. Disconnect the jumper wire between the No.3 terminal of SRS unit 18P connector C (18P) and the No.5 terminal of the floor wire harness 8P connector.
36. Check the No.13 (10 A) fuse in the under-dash fuse/relay box.
Is the fuse OK?
YES - Go to step 40.
NO - Go to step 37.
37. Replace the No.13 (10 A) fuse in the under-dash fuse/relay box.

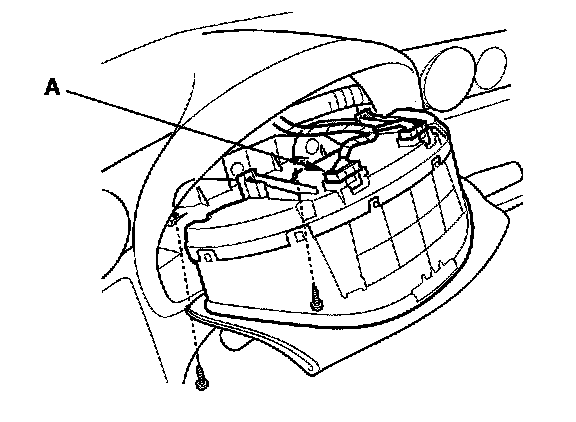

38. Disconnect gauge assembly connector A (22P) from the gauge assembly.

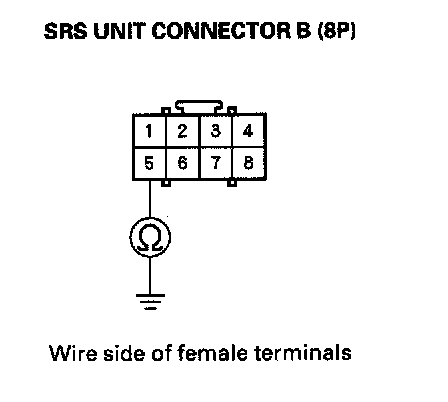

39. Check resistance between the No.5 terminal of SRS unit connector B (8P) and body ground. There should be 1 MOhm or more.
Is the resistance as specified?
YES - Faulty SRS indicator circuit in the gauge assembly; replace the gauge assembly.
NO - Short to ground in the floor wire harness or in the dashboard wire harness; replace the faulty harness.
40. Disconnect gauge assembly connector A (22P) from the gauge assembly.

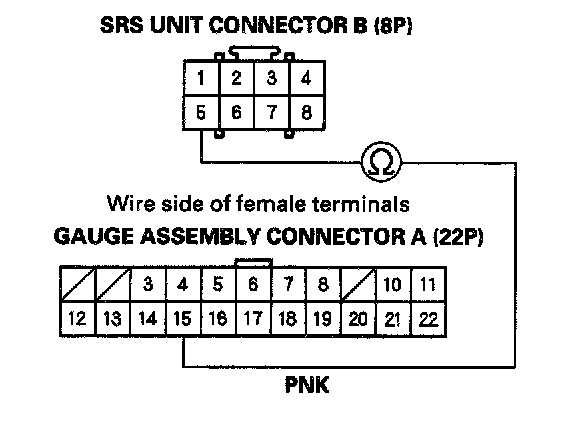

41. Check resistance between the No.15 terminal of gauge assembly connector A (22P) and the No.5 terminal of SRS unit connector B (8P). There should be 1 Ohm or less.
Is the resistance as specified?
YES - Faulty SRS indicator circuit in the gauge assembly or poor contact at the gauge assembly connector A (22P); check the connection. If the connection is OK, replace the gauge assembly.
NO - Open in the floor wire harness or in the dashboard wire harness; replace the faulty harness.
42. Disconnect SRS unit connector B (8P) from the SRS unit (A).

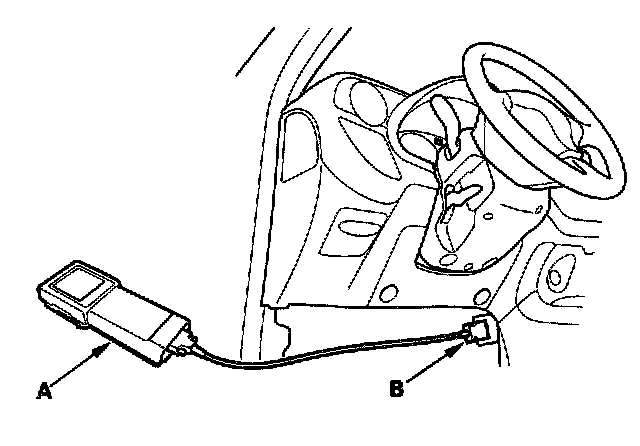

43. Connect the Honda PGM Tester (A) to the Data Link Connector (16P) (B), and follow the Tester's prompts in the "SCS" menu.

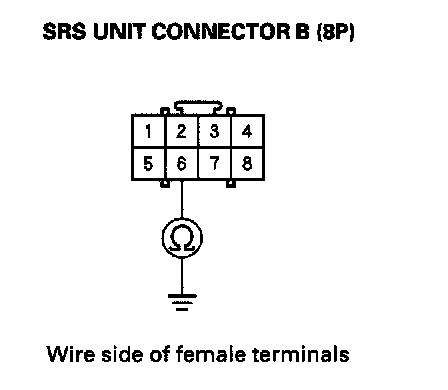

44. Check resistance between the No.6 terminal of SRS unit connector B (8P) and body ground. There should be 0 - 1.0 Ohms.
Is the resistance as specified?
YES - Faulty SRS unit or poor contact at the floor wire harness BP connector; check the connection at SRS unit connector B (8P) and the SRS unit. If the connection is OK, replace the SRS unit.
NO - Open in the SCS line between the No.6 terminal of SRS unit connector B (8P) and the No.9 terminal (BRN wire) of the Data Link Connector (DLC) (16P) or open between the No.4 terminal of the Data Link Connector (DLC) (16P) and body ground. Repair the open wire(s).
