Clearing Trouble Codes

NOTE: This is the only information provided by the manufacturer for reading diagnostic trouble codes.

Erasing the DTC Memory

Special Tools Required
SCS service connector 07PAZ-0010100

To erase the DTC(s) from the SRS unit, use a Honda PGM Tester (see the Honda PGM Tester SRS vehicle System Supplement) or the following procedure.

1. Make sure the ignition switch is OFF.

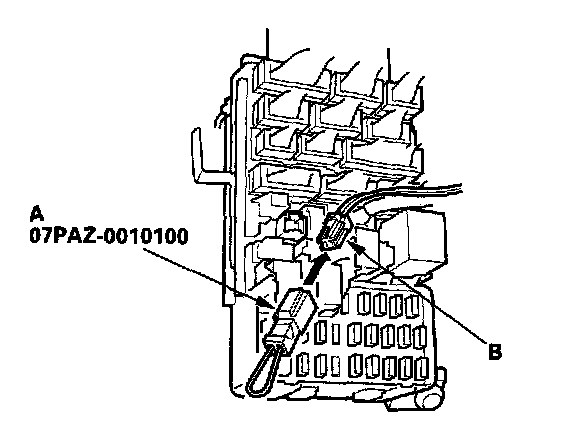

2. Connect the SCS service connector (A) to the MES connector (2P) (B). Do not use a jumper wire.
3. Turn the ignition switch ON (II).
4. The SRS indicator will come on for about 6 seconds, and then go off. Remove the SCS service connector from the MES connector (2P) within 4 seconds after the indicator goes off.
5. The SRS indicator will come on again. Reconnect the SCS service connector to the MES connector (2P) within 4 seconds after the indicator comes on.
6. When the SRS indicator goes off, remove the SCS service connector from the MES connector (2P) within 4 seconds.
7. The SRS indicator will blink two times indicating that the memory has been erased.
8. Turn the ignition switch OFF, and wait for 10 seconds.

Turn the ignition switch ON (II) again after the procedure. The SRS system is OK if the SRS indicator comes on for 6 seconds, and then goes off.
