Driver Side

Driver's Airbag Replacement

Removal

1. Disconnect the battery negative cable, and wait at least 3 minutes before beginning work.

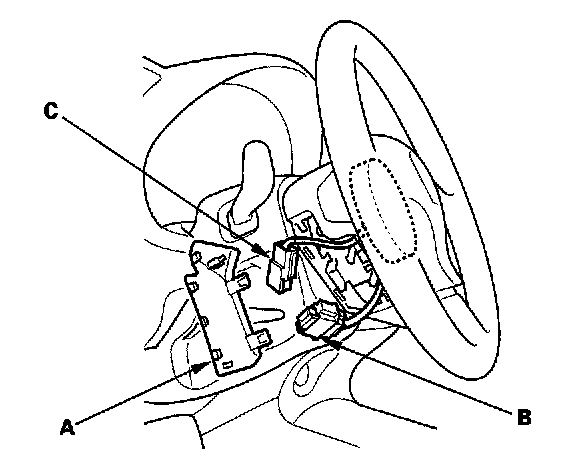

2. Remove the access pane (A) from the steering wheel, then disconnect the connector between the cable reel 4P connector (B) and driver's airbag 4P connector (C).

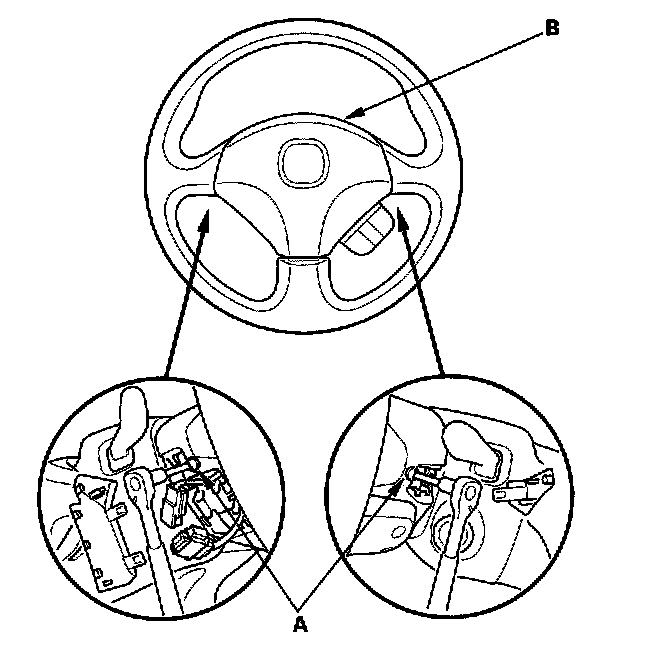

3. Remove the two Torx bolts (A) using a Torx T30 bit. Then remove the driver's airbag (B).

Installation

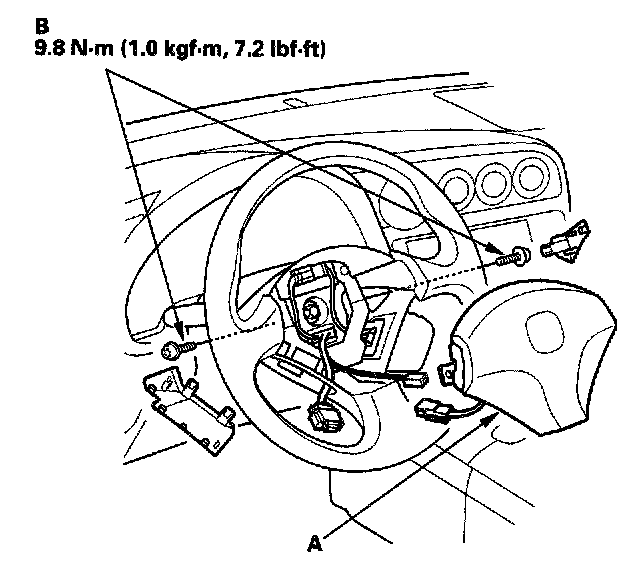

1. Place the new driver's airbag (A) in the steering wheel, and secure it with new Torx bolts (B).

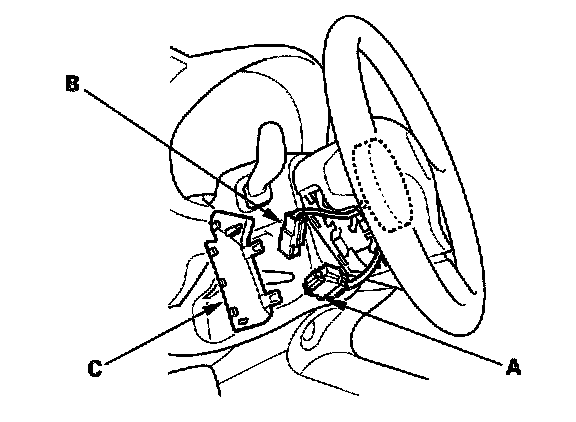

2. Connect the cable reel 4P connector (A) to the driver's airbag 4P connector (B), then install the access panel (C) on the steering wheel.
3. Connect the battery negative cable.
4. After installing the airbag, confirm proper system operation:
- Turn the ignition switch ON (II); the SRS indicator should come on for about 6 seconds and then go off.
- Make sure the horn button works.
