Home >> Acura >> 2002 >> RSX L4-2.0L (VTEC) >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Windows and Glass >> Heated Glass Element Relay >> Locations

Heated Glass Element Relay: Locations

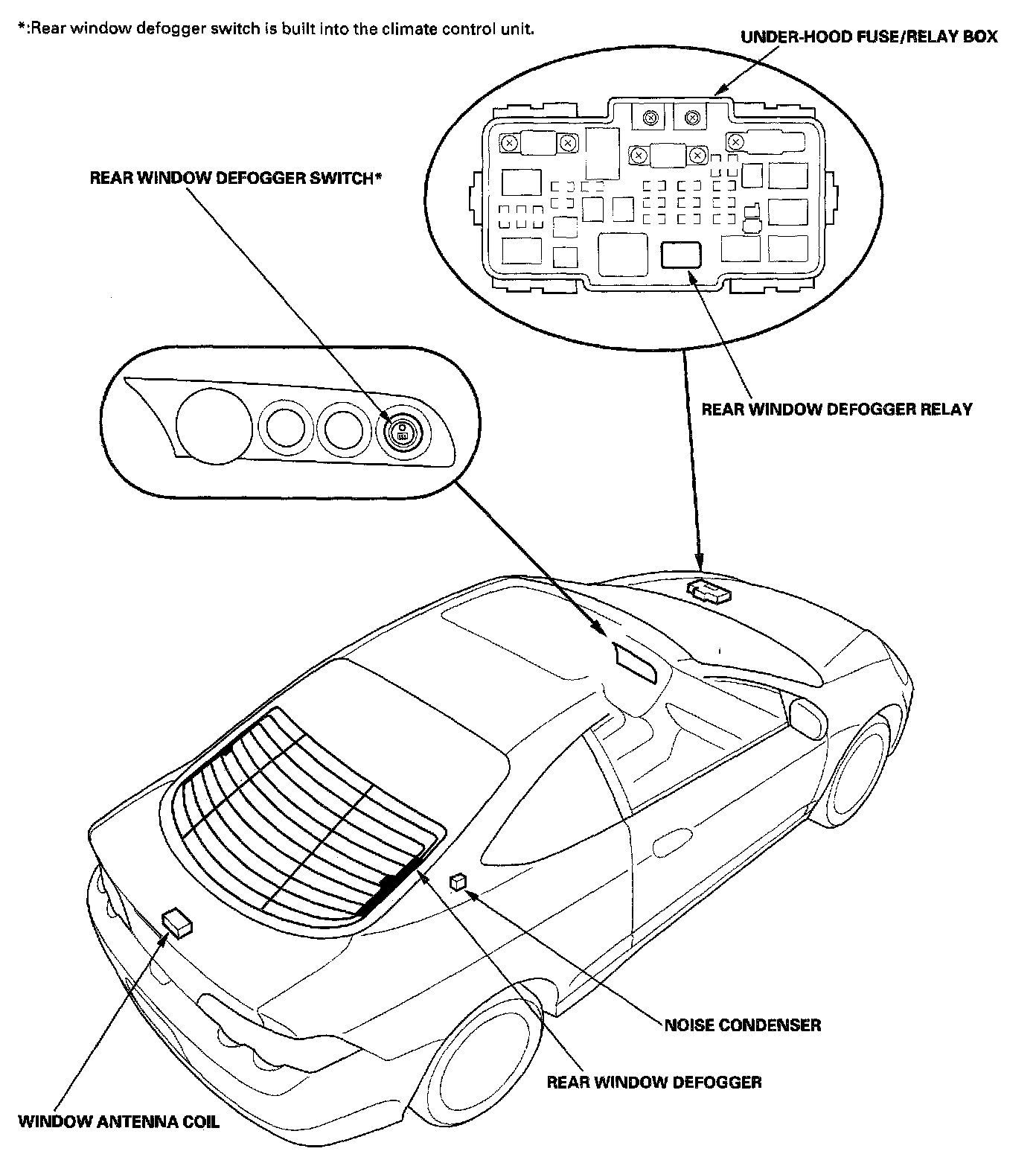

Rear Window Defogger Component Location Index:



Relay And Control Unit Locations - Engine Compartment:
