Daytime Running Lamp Relay: Locations

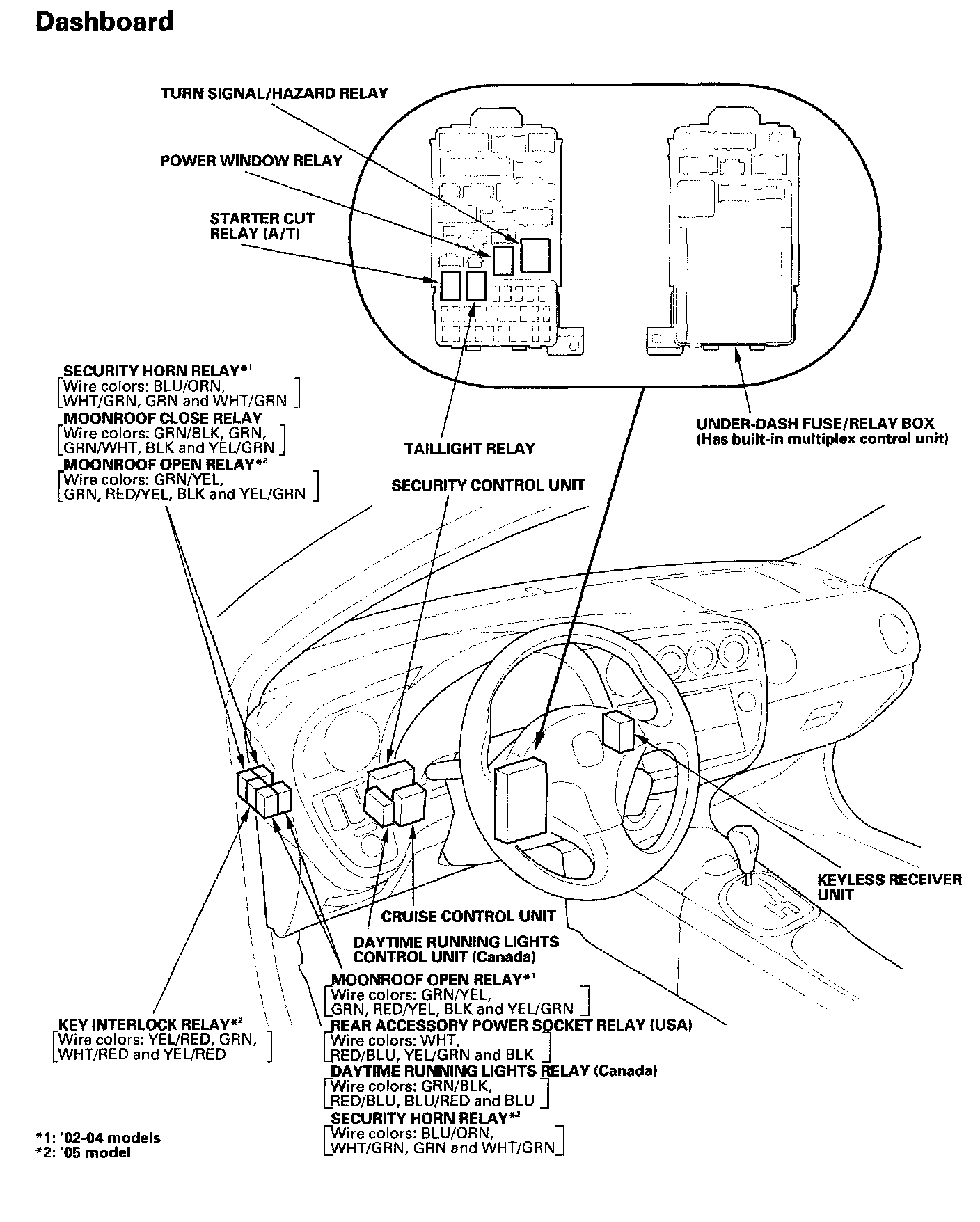

Relay And Control Unit Locations - Dash Board:

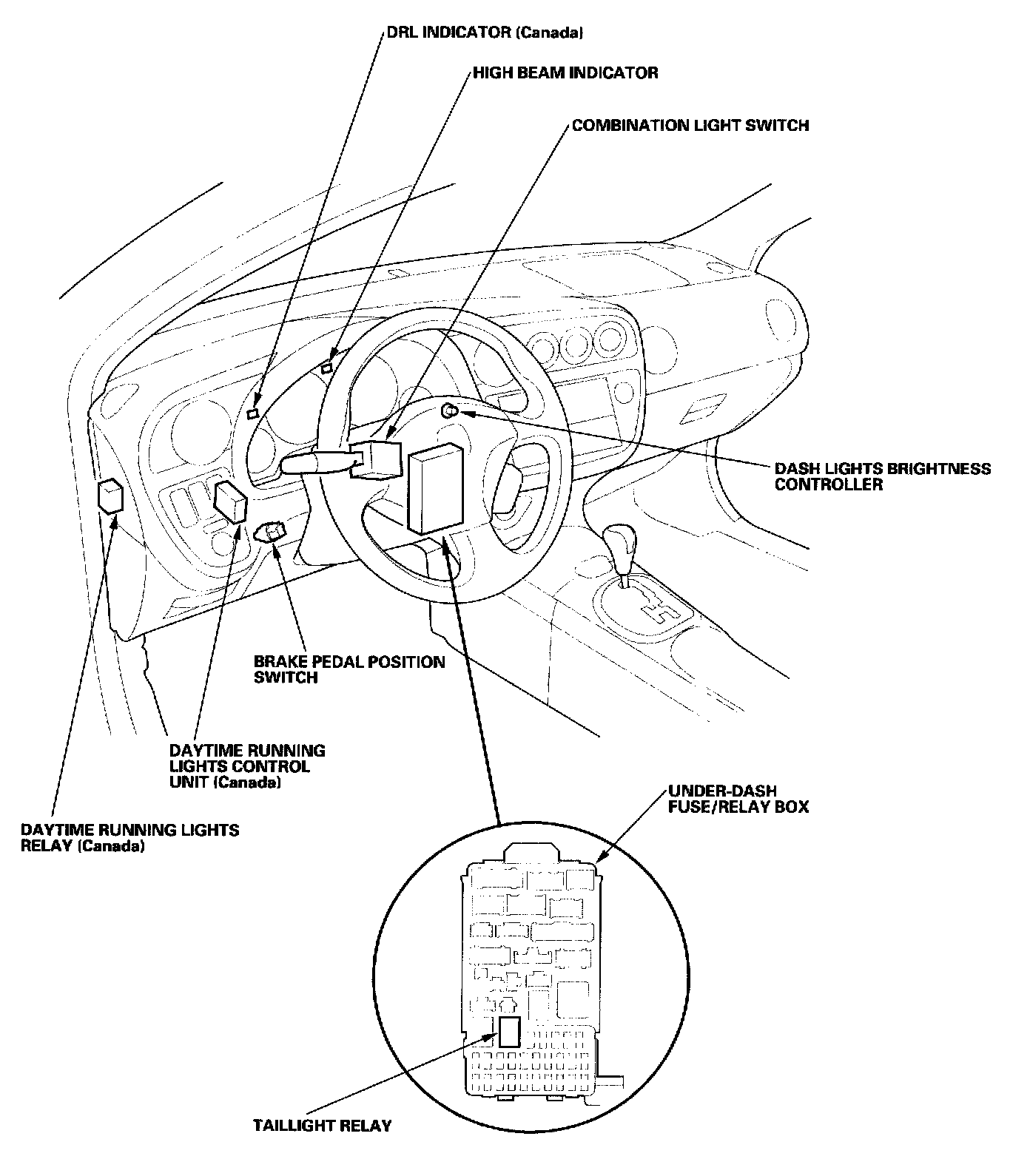

Exterior Lights - Component Location Index:



33. Left Side Of Dash:
