Radiator Cooling Fan Motor Relay: Locations

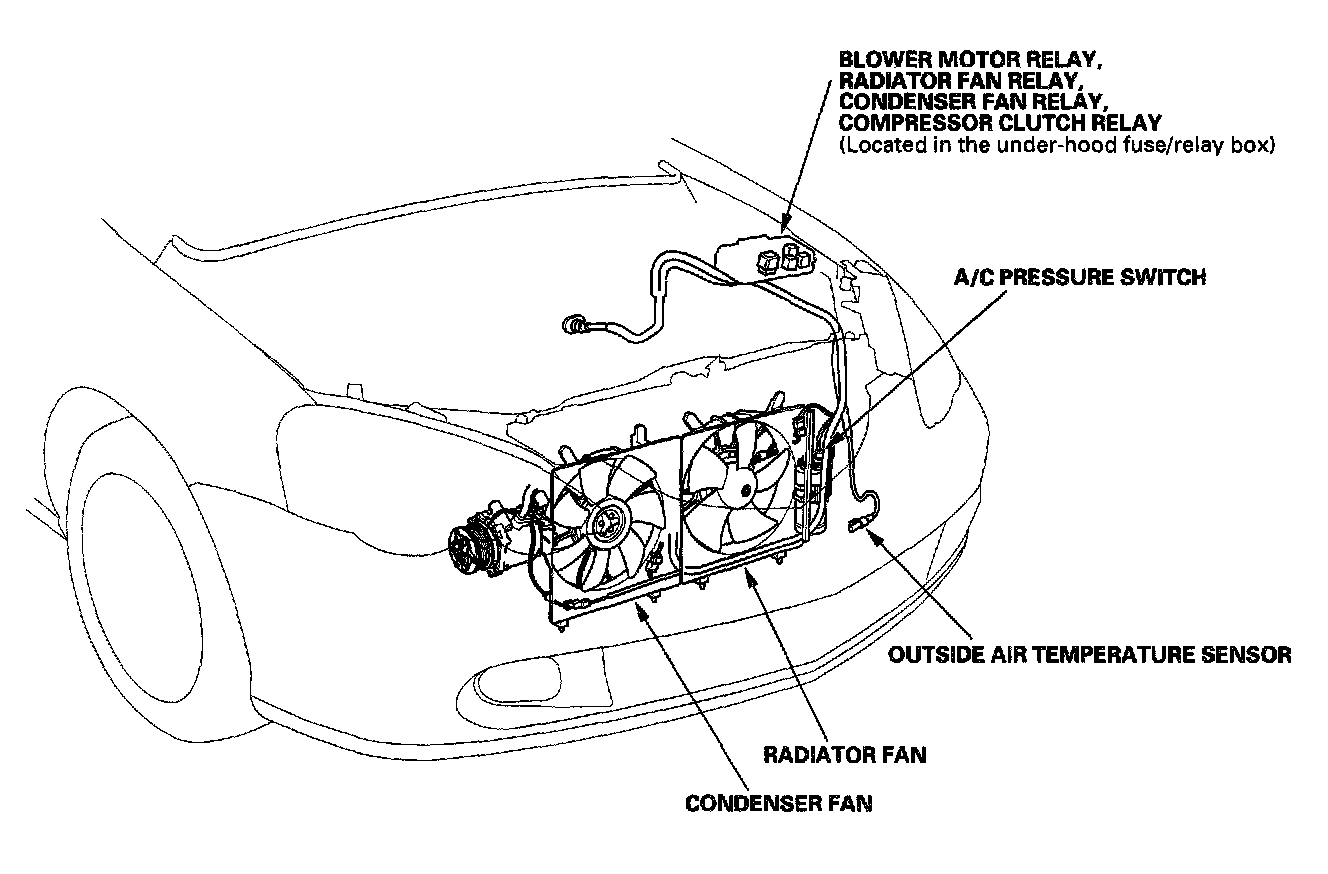

Climate Control Component Location Index Part 2:



Relay And Control Unit Locations - Engine Compartment:
