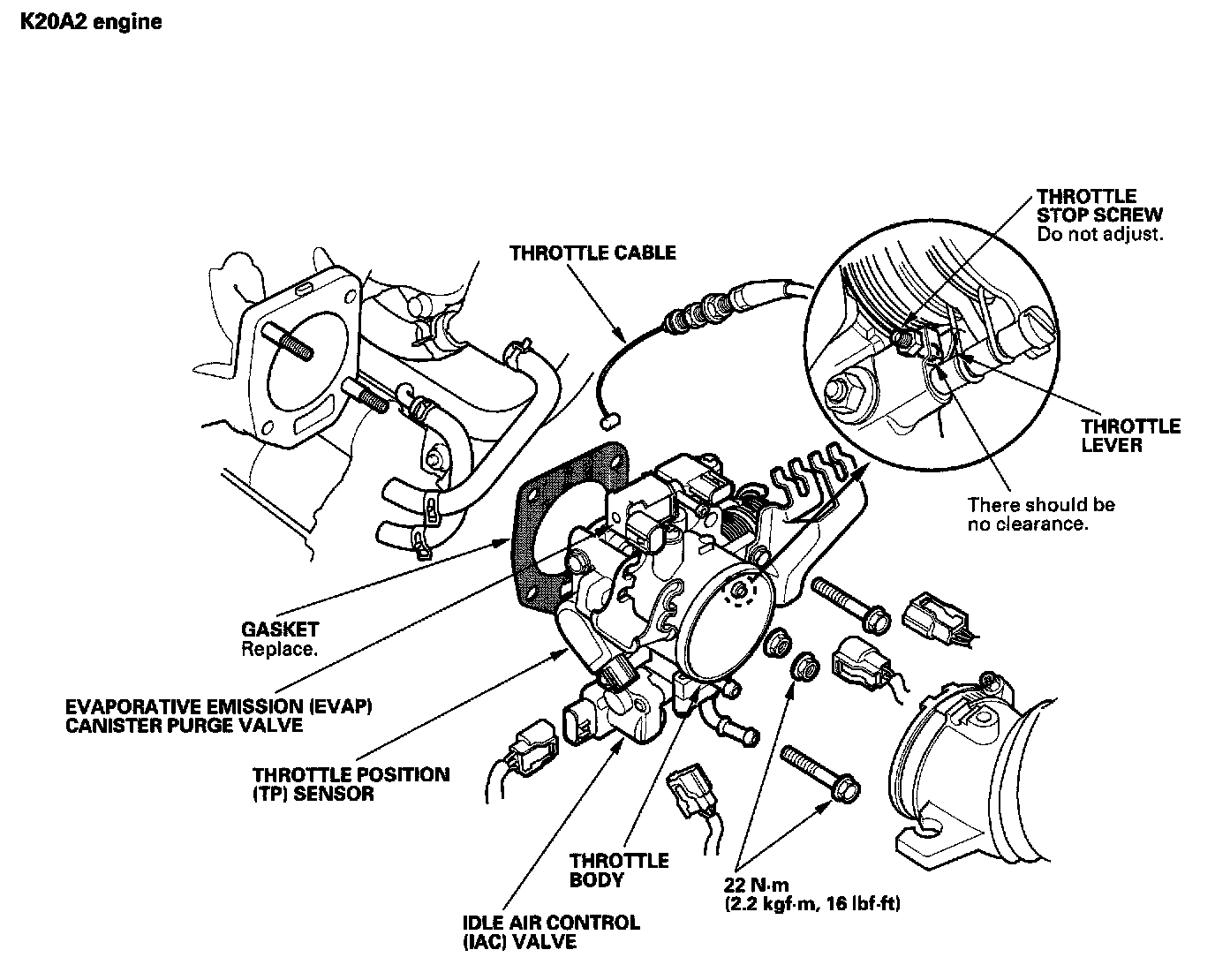

Removal and Installation
NOTE:
-
Do Not Adjust The Throttle Stop Screw.
-
After reassembly, adjust the cruise control cable and the throttle cable.
-
The Throttle Position (TP) sensor is not removable.
