Fuel Filler Hose: Service and Repair

Fuel Pipe Protector Replacement

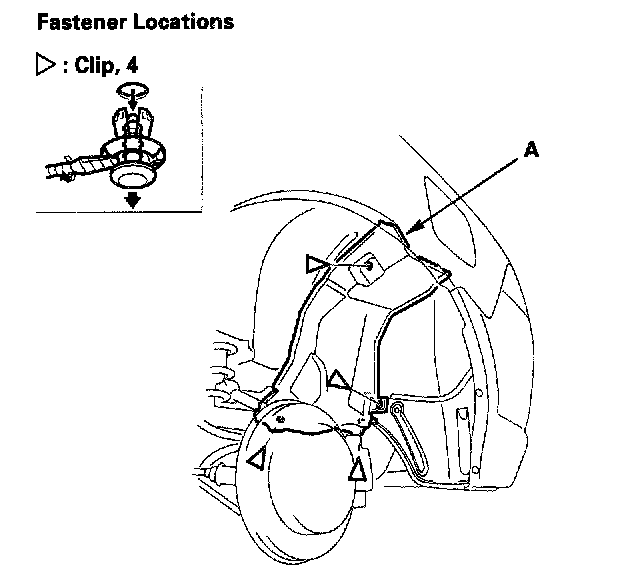

1. Remove the clips, then remove the fuel pipe protector (A). Take care not to scratch the body.
2. Install the protector in the reverse order of removal, and replace any damaged clips.
