Home >> Acura >> 2002 >> RSX L4-2.0L (VTEC) >> Repair and Diagnosis >> Powertrain Management >> Fuel Delivery and Air Induction >> Fuel Return Line >> Testing and Inspection

Fuel Return Line: Testing and Inspection

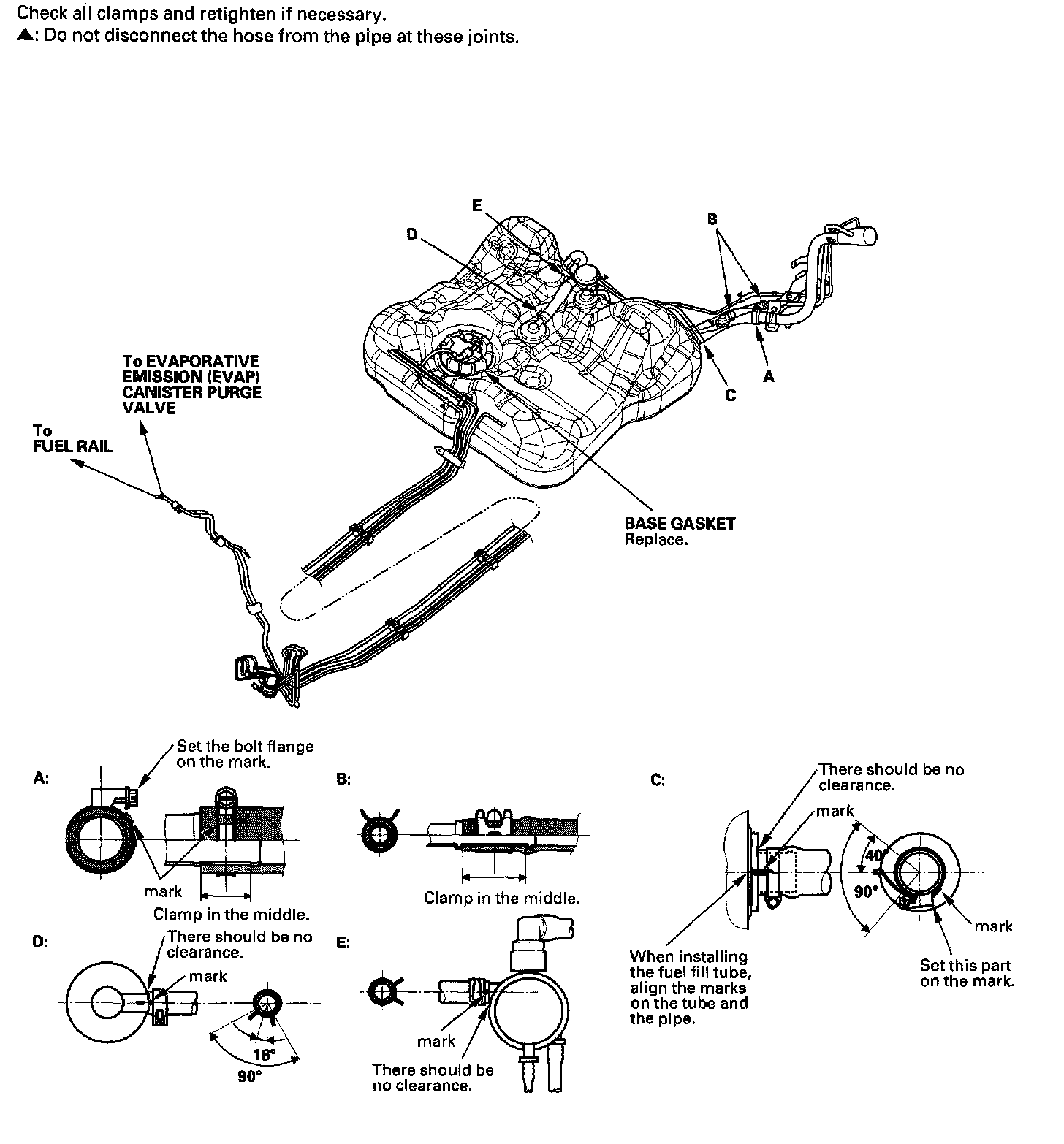

Fuel Line Inspection Part 1:



Fuel Line Inspection Part 2:
