How to Remove the ECM/PCM for Testing

If the inspection for a trouble code requires voltage or resistance checks at the ECM/PCM connectors, remove the ECM/PCM and test it:

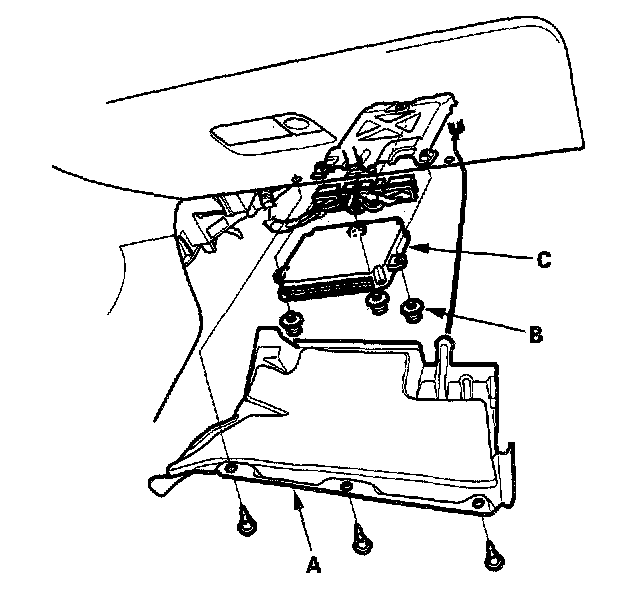

1. Remove the passenger's dashboard lower cover (A).
2. Remove the ECM/PCM mounting bolts (B) and the ECM/PCM (C).
