Computers and Control Systems: Locations

PGM-FI System - Component Location Index:

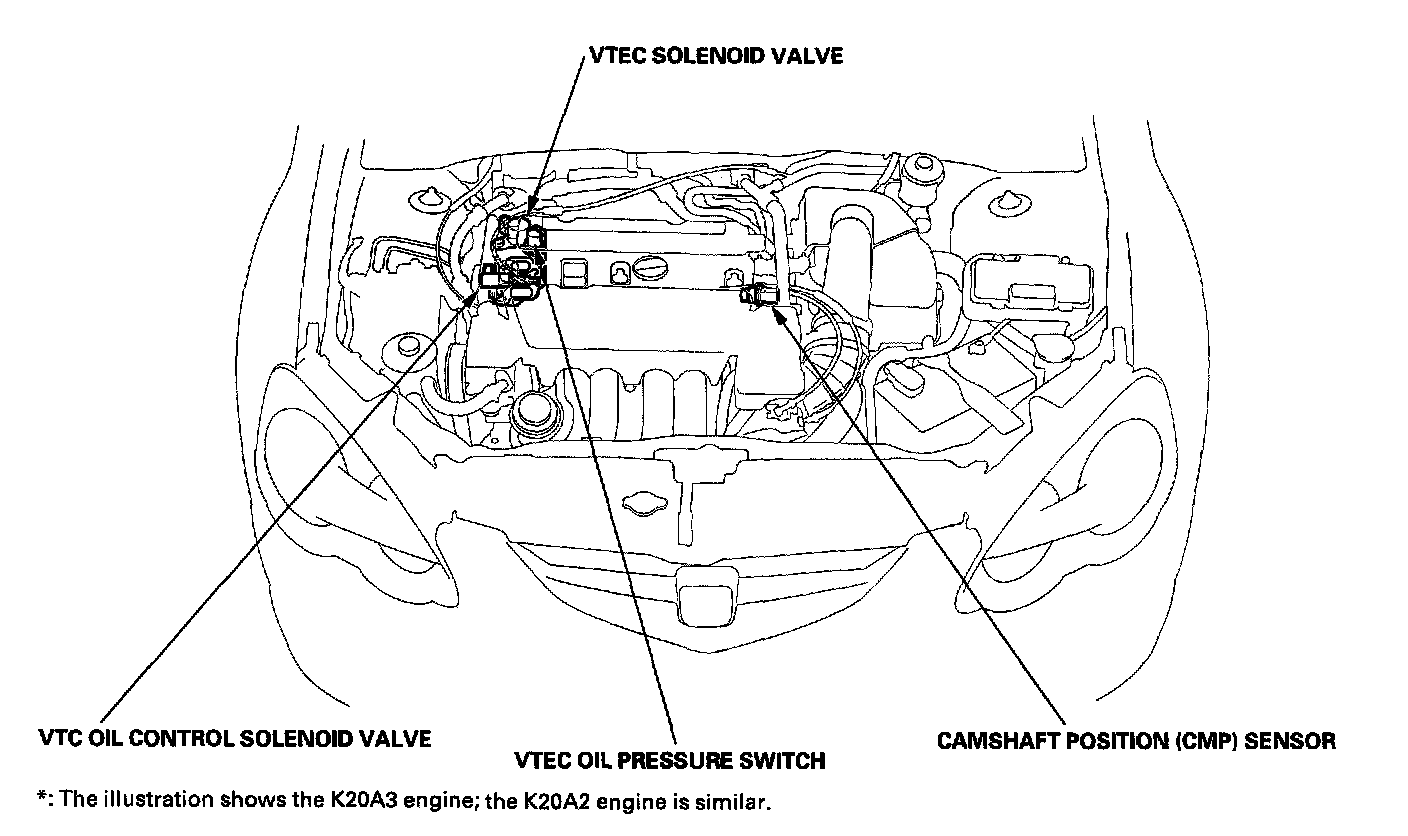

VTEC/VTC - Component Location Index:

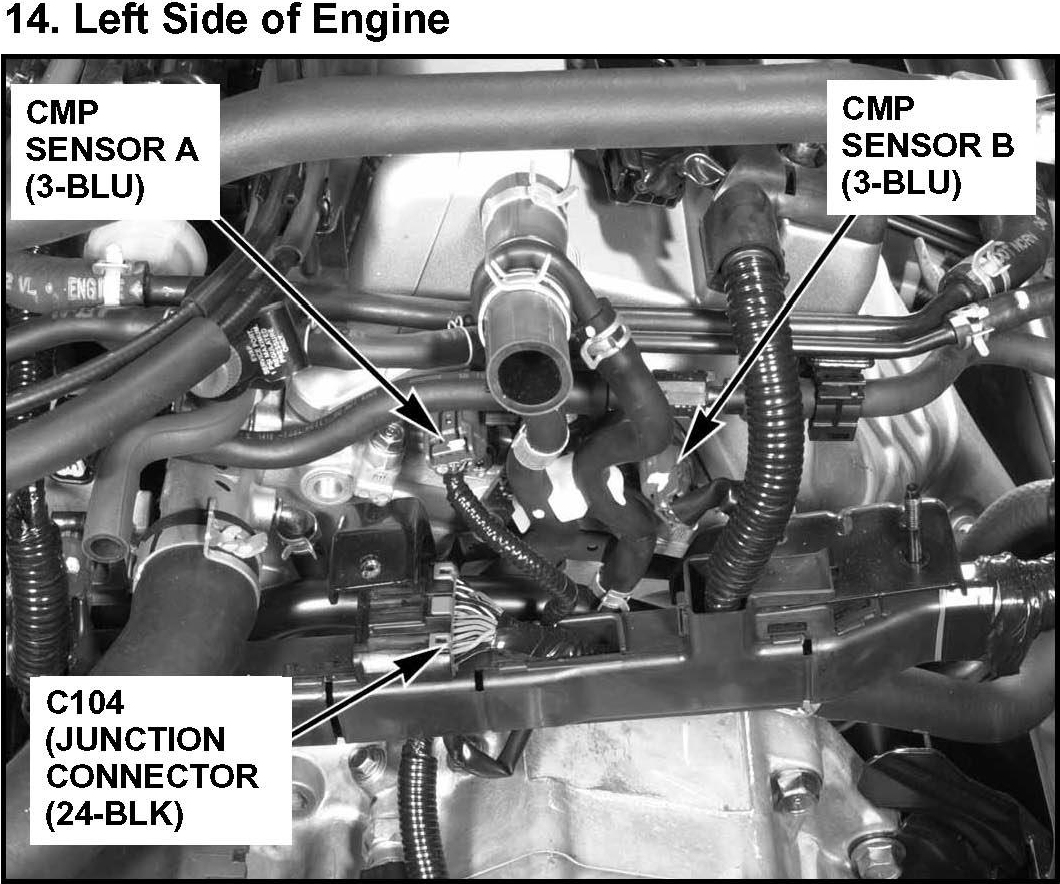

14. Left Side Of Engine:
