Home >> Acura >> 2002 >> RSX L4-2.0L (VTEC) >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Splice and Junction Connector Details >> Circuit Z27 Ground For ECM/PCM Sensors

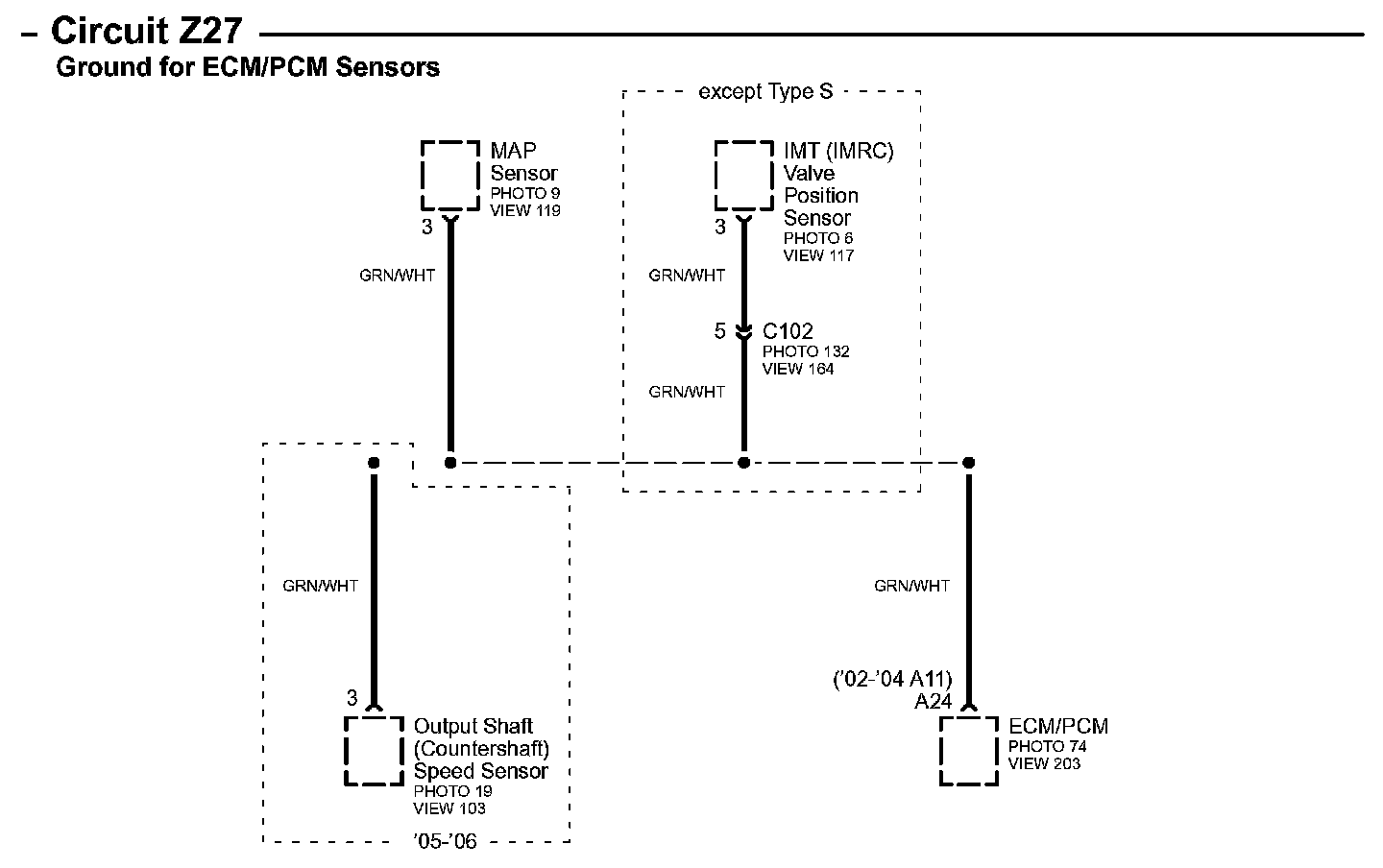

Circuit Z27 Ground For ECM/PCM Sensors

Circuit Z27 Ground For ECM/PCM Sensors:
