Drive Belt: Service and Repair

Drive Belt Replacement

1. Unclip the power steering reservoir.

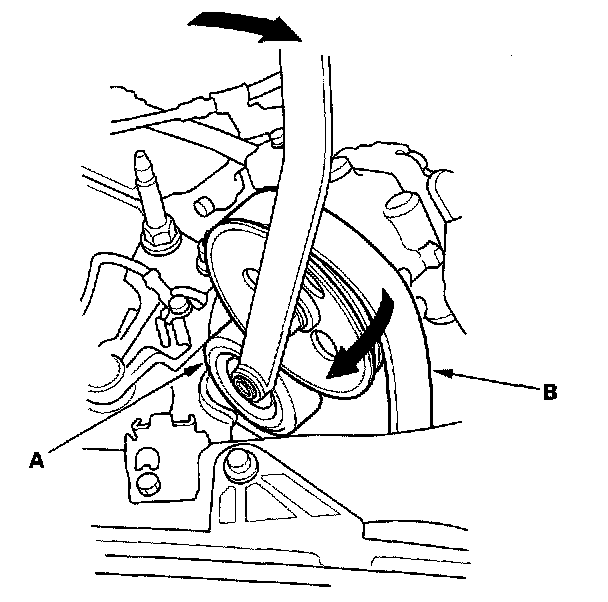

2. Move the auto-tensioner (A) to relieve tension from the drive belt (B), and remove the drive belt.
3. Install the new belt in the reverse order of removal.
