Home >> Acura >> 2002 >> RSX L4-2.0L (VTEC) >> Repair and Diagnosis >> Lighting and Horns >> Turn Signals >> Turn Signal Lamp >> Locations >> Left Rear Turn Signal Light

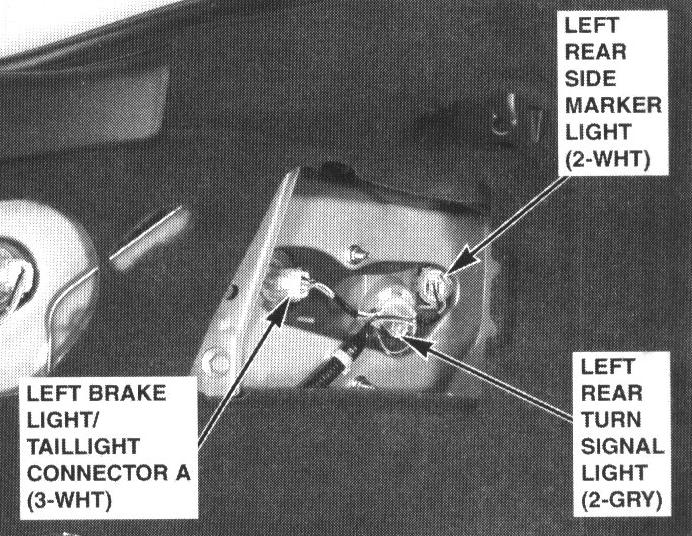

Left Rear Turn Signal Light

117. Left Taillight Assembly (Right Similar):

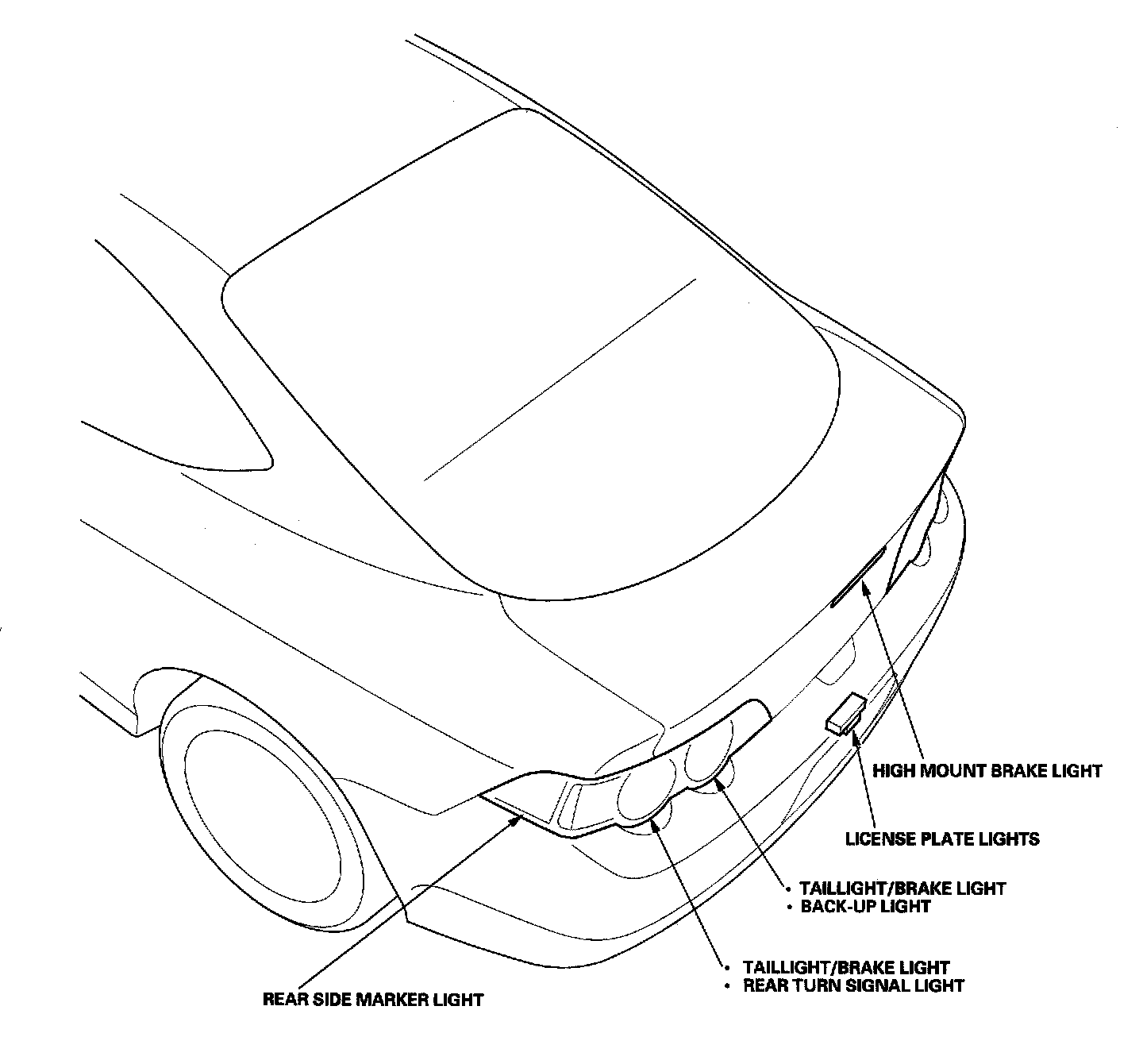

Exterior Lights Component Location Index Part 2:
