Connector Views
Connector Views

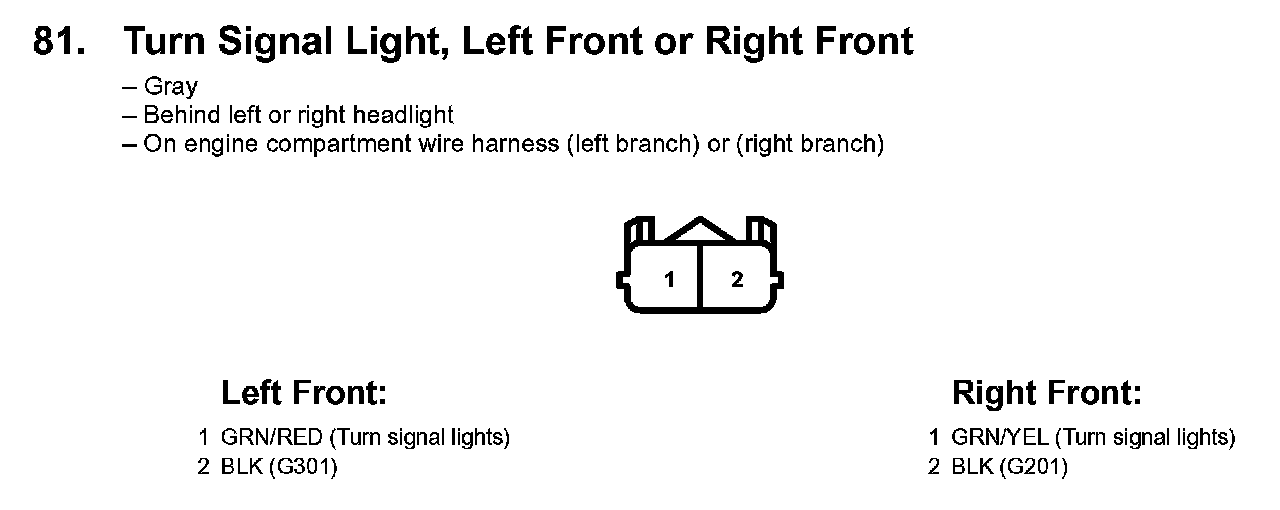

81. Turn Signal Light, Left Front Or Right Front:

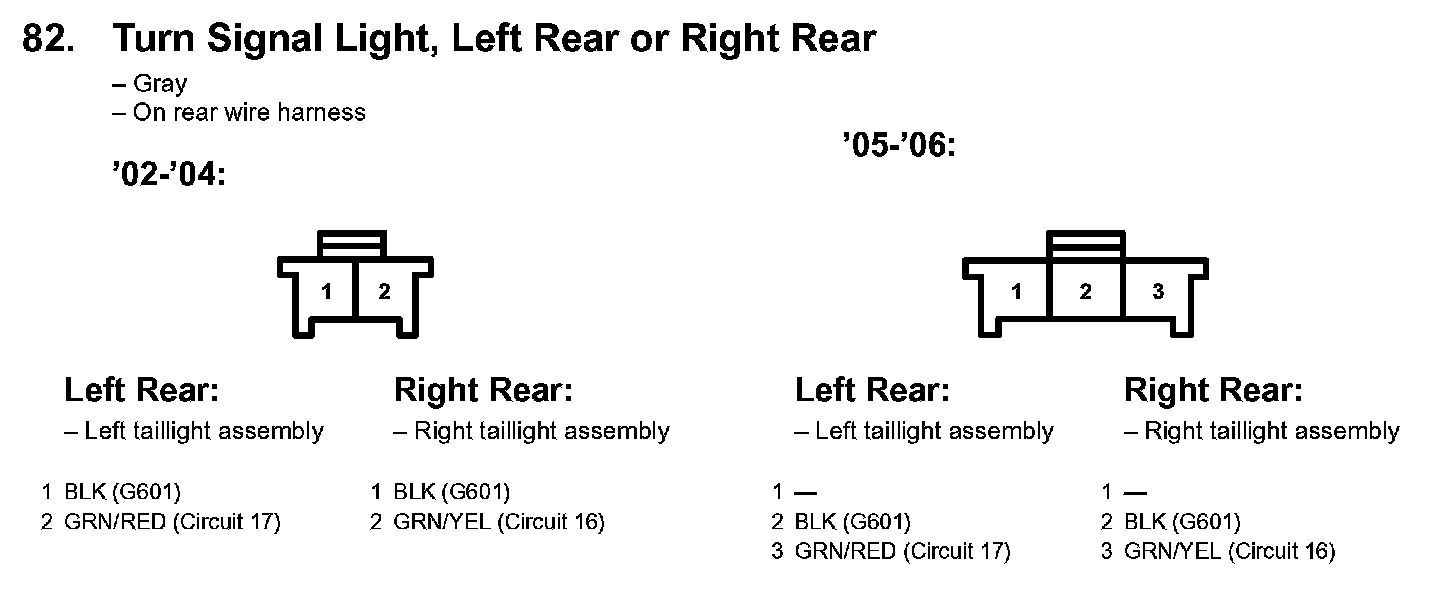

82. Turn Signal Light, Left Rear Or Right Rear:
