Backup Lamp Switch: Testing and Inspection

Back-Up Light Switch Test

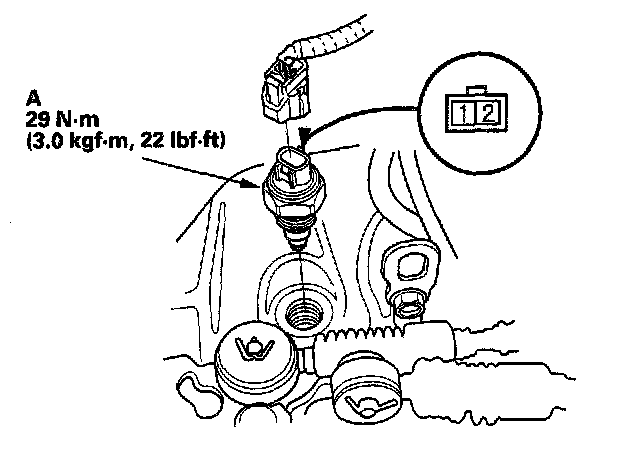

1. Disconnect the back-up light switch (A) connector.
2. Check for continuity between the back-up light switch 2P connector No. 1 and No. 2 terminals. There should be continuity when the shift lever is in reverse.
3. If necessary, replace the back-up light switch. Apply liquid gasket (P/N 08718-0001), and install it on the transmission housing.
