Acura
>>
2002
>>
RSX L4-2.0L (VTEC)
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Fog/Driving Lamp
>>
Diagrams
>>
Connector Views
Connector Views

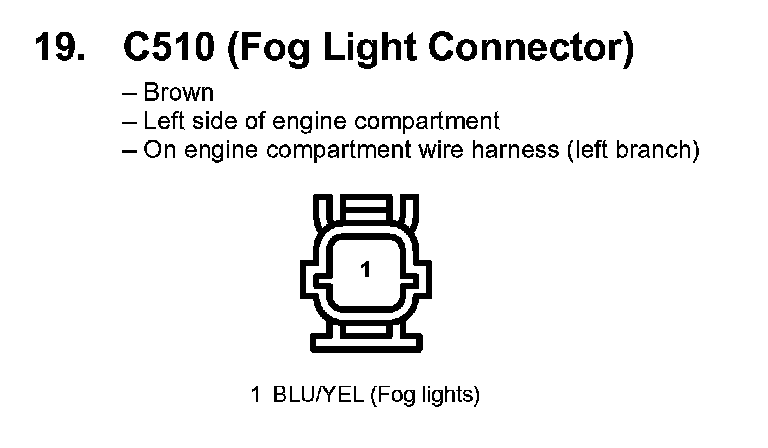

19. C510 (Fog Light Connector):

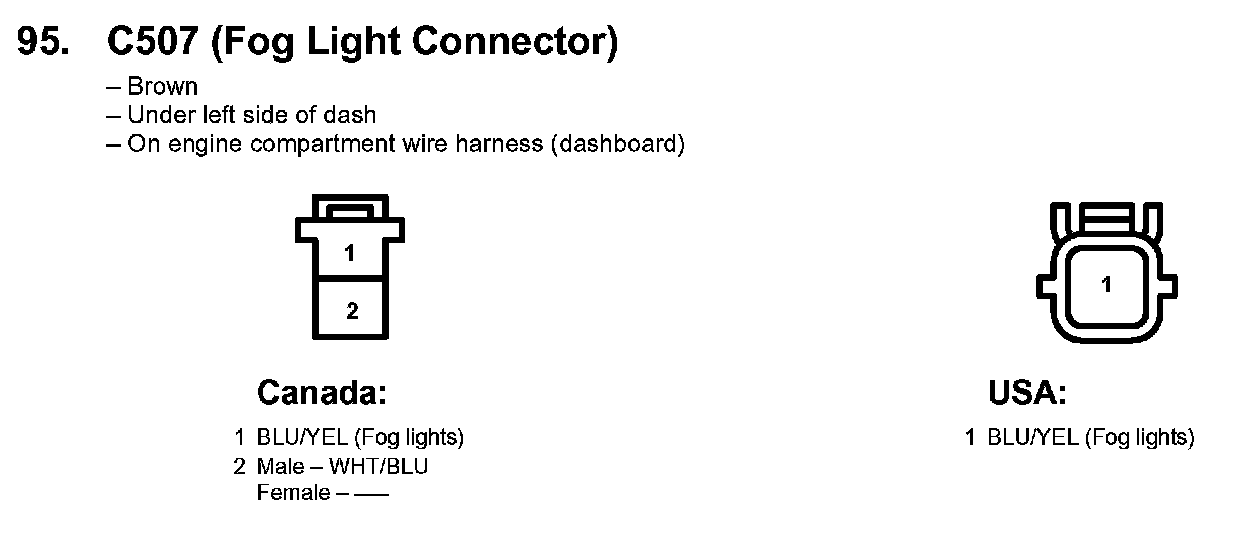

95. C507 (Fog Light Connector):

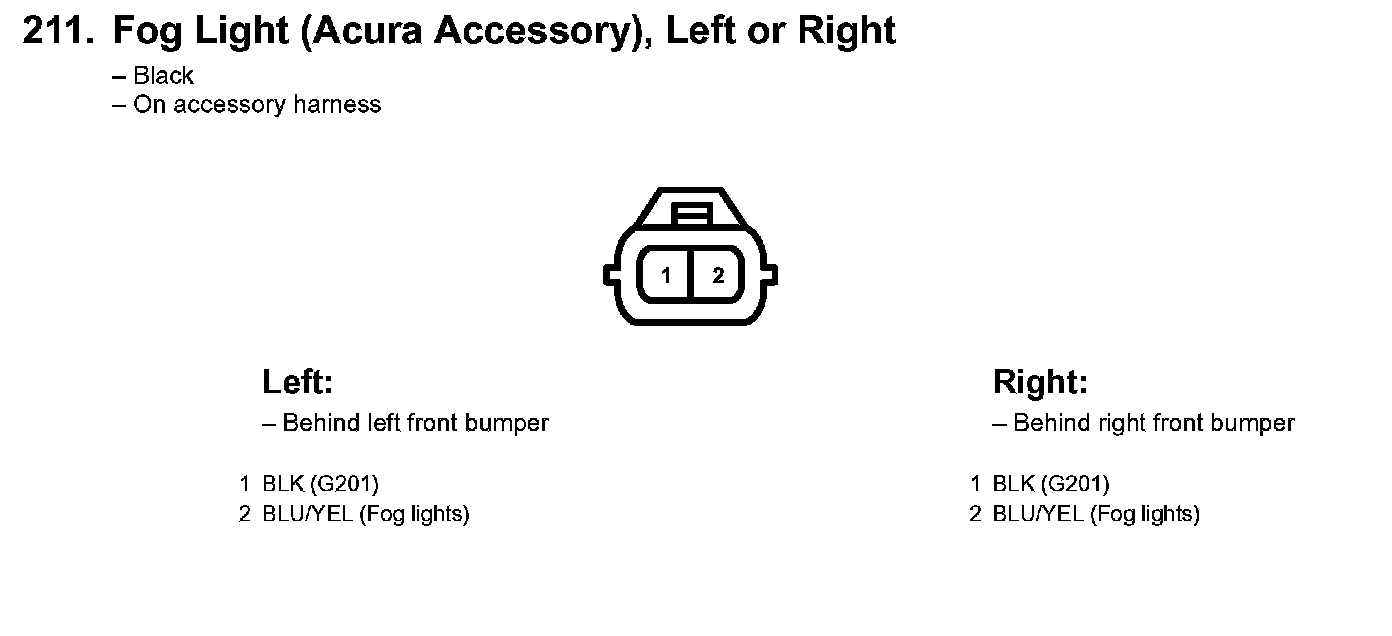

211. Fog Light (Acura Accessory), Left Or Right:
