Home >> Acura >> 2002 >> RSX L4-2.0L (VTEC) >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Transmission Shift Position Indicator Lamp >> Diagrams >> Electrical Diagrams

Electrical Diagrams

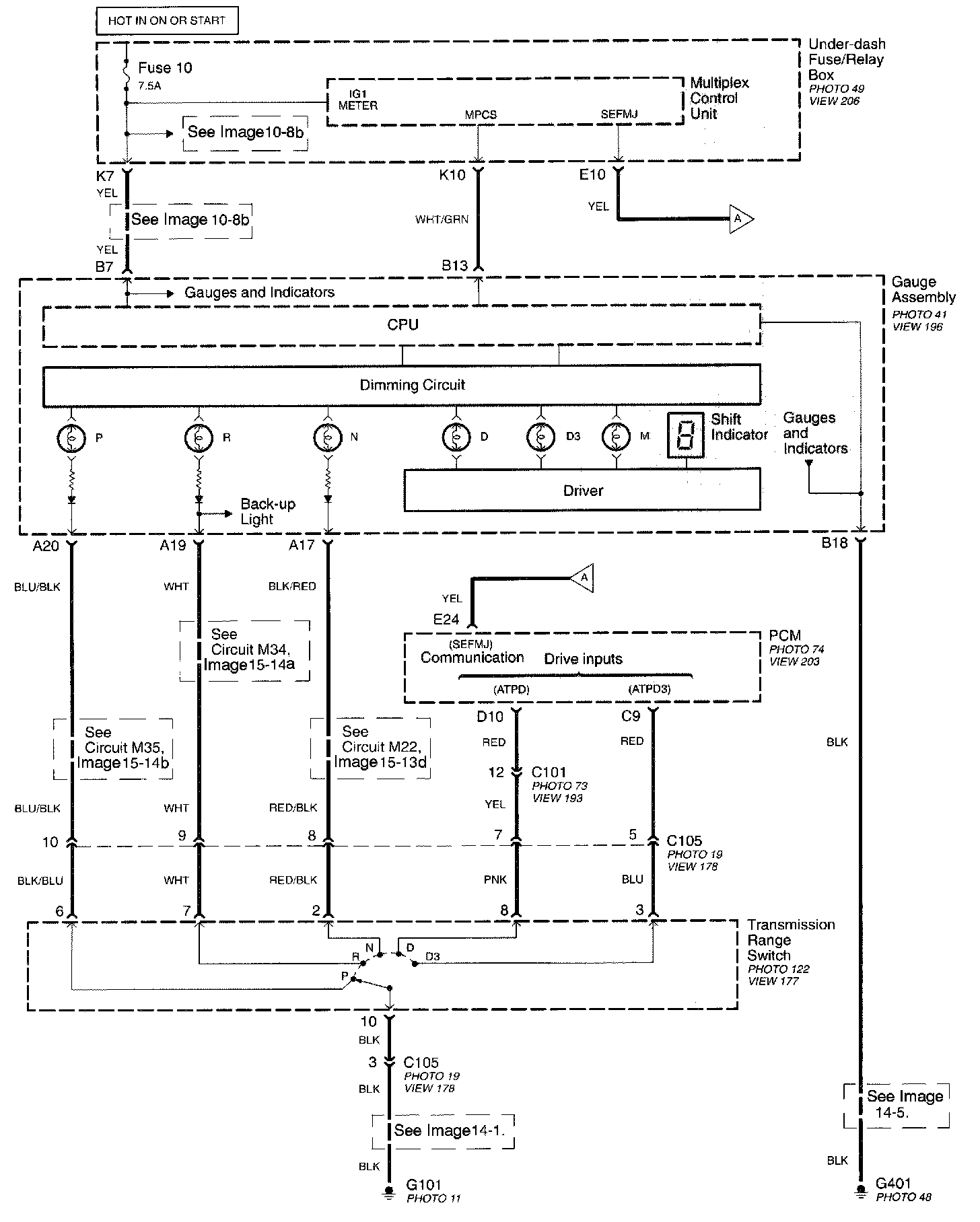

A/T Gear Position Indicator Image 89:

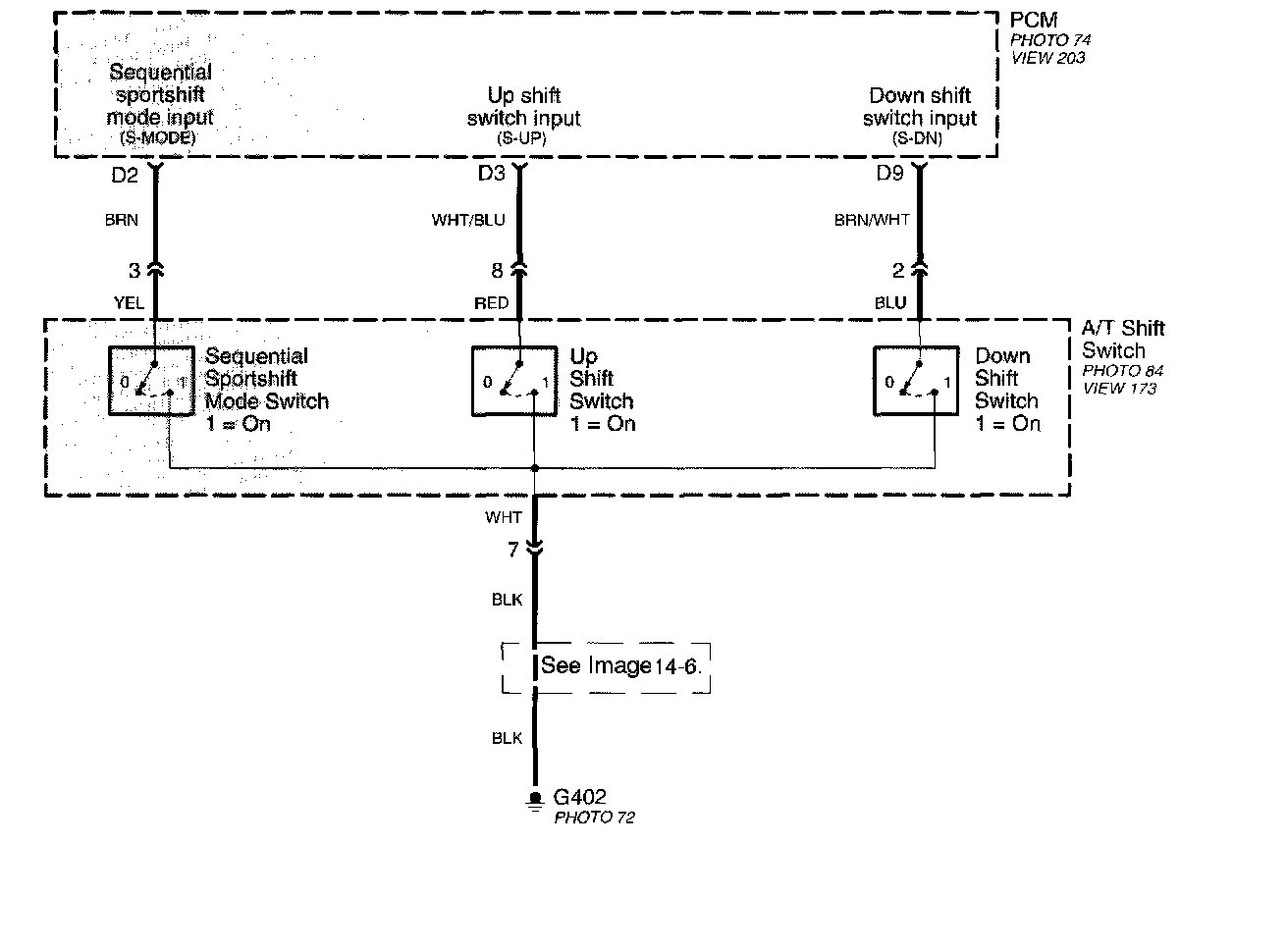

A/T Gear Position Indicator Image 89-1:
