Cabin Temperature Sensor / Switch: Service and Repair

In-car Temperature Sensor Replacement

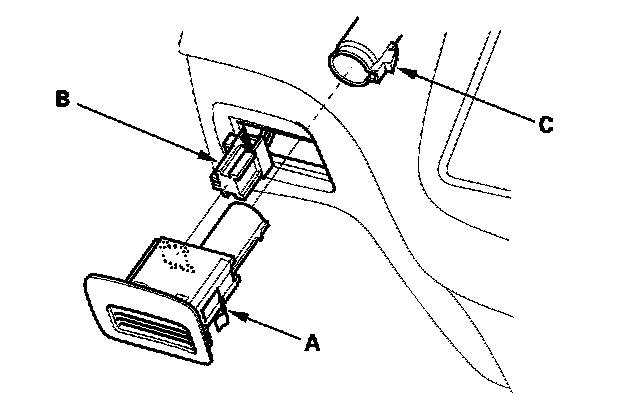

1. Remove the in-car temperature sensor (A) from the dashboard, then disconnect the 2P connector (B) and the air hose (C). Be careful not to damage the sensor and the dashboard.
2. Install the sensor in the reverse order of removal. Be sure to connect the air hose securely.
