Air Mix Control Motor

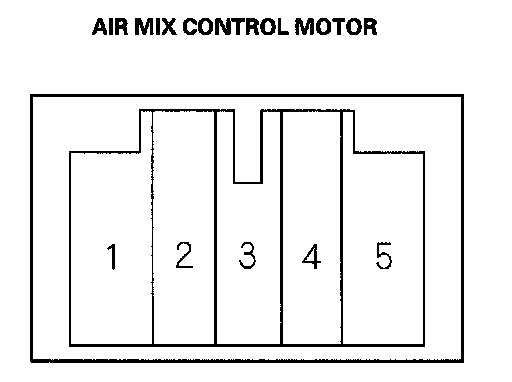

Air Mix Control Motor Test1. Disconnect the 5P connector from the air mix control motor.
2. Connect battery power to the No.1 terminal of the air mix control motor, and ground the No.2 terminal; the air mix control motor should run, and stop at Max Cool. If it doesn't, reverse the connections; the air mix control motor should run, and stop at Max Hot. If the air mix control motor does not run, remove it, then check the air mix control linkage and door for smooth movement.
- If the linkage and door move smoothly, replace the air mix control motor.
- If the linkage or door sticks or binds, repair them as needed.
3. Measure the resistance between the No.4 and No.5 terminals. It should be between 2.1 k to 3.9 kOhm.
4. Measure the resistance between the No.3 and No.4 terminals.
Max Cool - 0.35 k to 0.91 kOhm.
Max Hot - 1.56 k to 3.24 kOhm.
