Mode Control Motor

Mode Control Motor Replacement

1. Open the glove box. Remove the glove box stop on each side, then hang the glove box down.

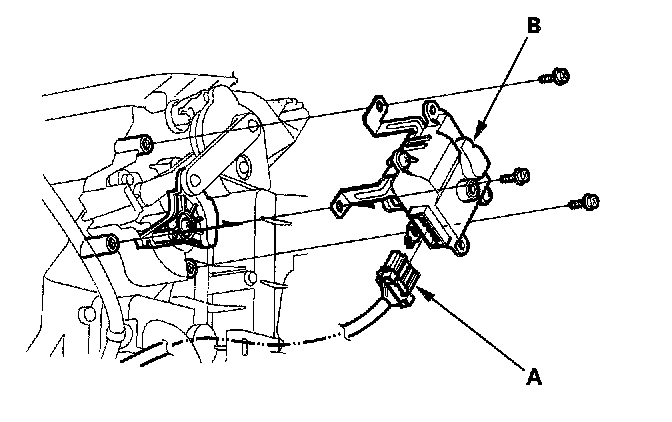

2. Disconnect the 10P connector (A) from the mode control motor (B). Remove the self-tapping screws and the mode control motor from the heater unit.
3. Install the motor in the reverse order of removal. After installation, make sure the motor runs smoothly.
