Home >> Acura >> 2002 >> RSX L4-2.0L (VTEC) >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Water Pump >> Service and Repair >> Water Outlet Installation

Water Outlet Installation

Installation

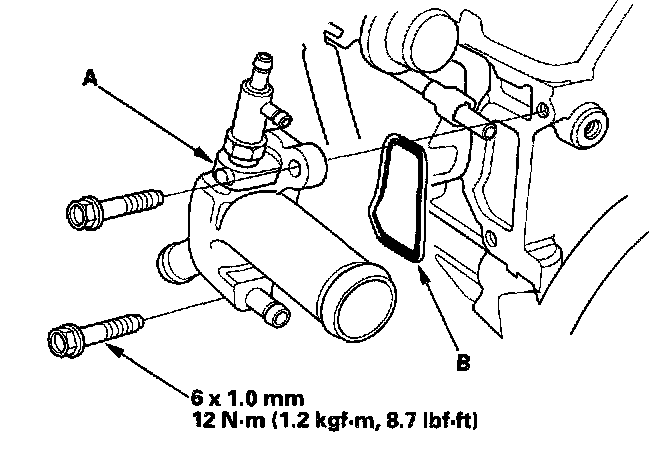

Install the water outlet (A) with a new O-ring (B).
