Harmonic Balancer - Crankshaft Pulley: Service and Repair

Removal and Installation

Special Tools Required
^ Holder handle 07JAB-001020A
^ Holder attachment, 50 mm 07JAB-001040A
^ Socket, 19 mm 07JAA-001020A or a commercially available 19 mm socket

Removal
1. Remove front tires/wheels.
2. Remove the splash shield (see step 24).

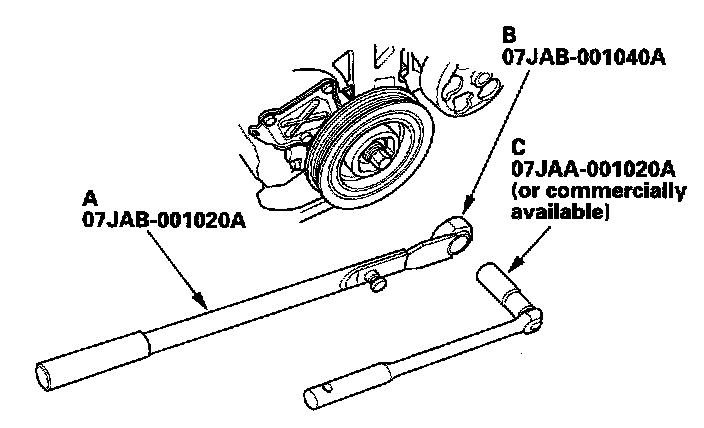

3. Hold the pulley with holder handle (A) and holder attachment (B).
4. Remove the bolt with a 19 mm socket (C) and breaker bar.

Installation

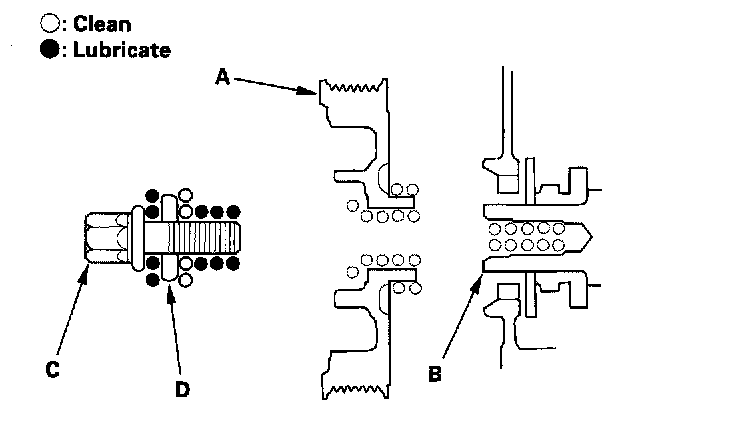

1. Clean the crankshaft pulley (A), crankshaft (B), bolt (C), and washer (D). Lubricate as shown.

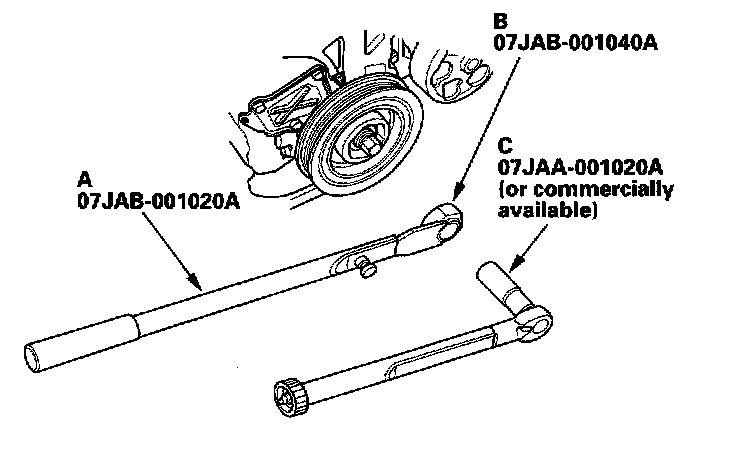

2. Install the crankshaft pulley, and hold the pulley with holder handle (A) and holder attachment (B).
3. Tighten the bolt to 245 Nm (25.0 kgf-m, 181 ft. lbs.) with a torque wrench and 19 mm socket (C). Do not use an impact wrench.
4. Install the splash shield (see step 21).
5. Install front tires/wheels.
