Temperature Sensor (Gauge): Service and Repair

Gauge Assembly Replacement

1. Remove the driver's dashboard lower cover. then remove the upper column cover.

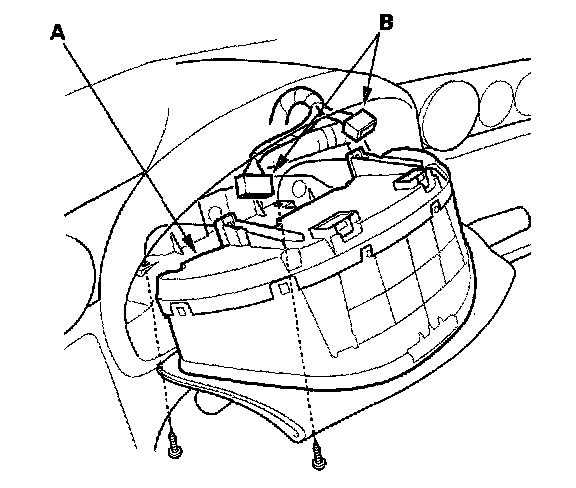

2. Remove the two mounting screws from the gauge assembly (A).
3. Disconnect the connectors (B), and remove the gauge assembly.
4. Install the gauge assembly in the reverse order of removal.
