Cooling Fan Motors Test

Fan Motor Test

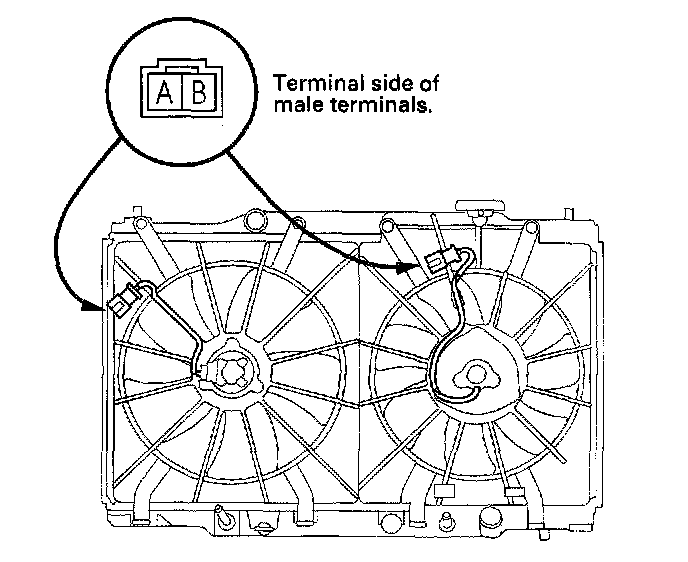

1. Disconnect the 2P connectors from the radiator fan motor and condenser fan motor.
2. Test the motor by connecting battery power to the B terminal and ground to the A terminal.
3. If the motor fails to run or does not run smoothly, replace it.
