Diagrams
>>
Harness
>>
Engine Ground Cable
Engine Ground Cable

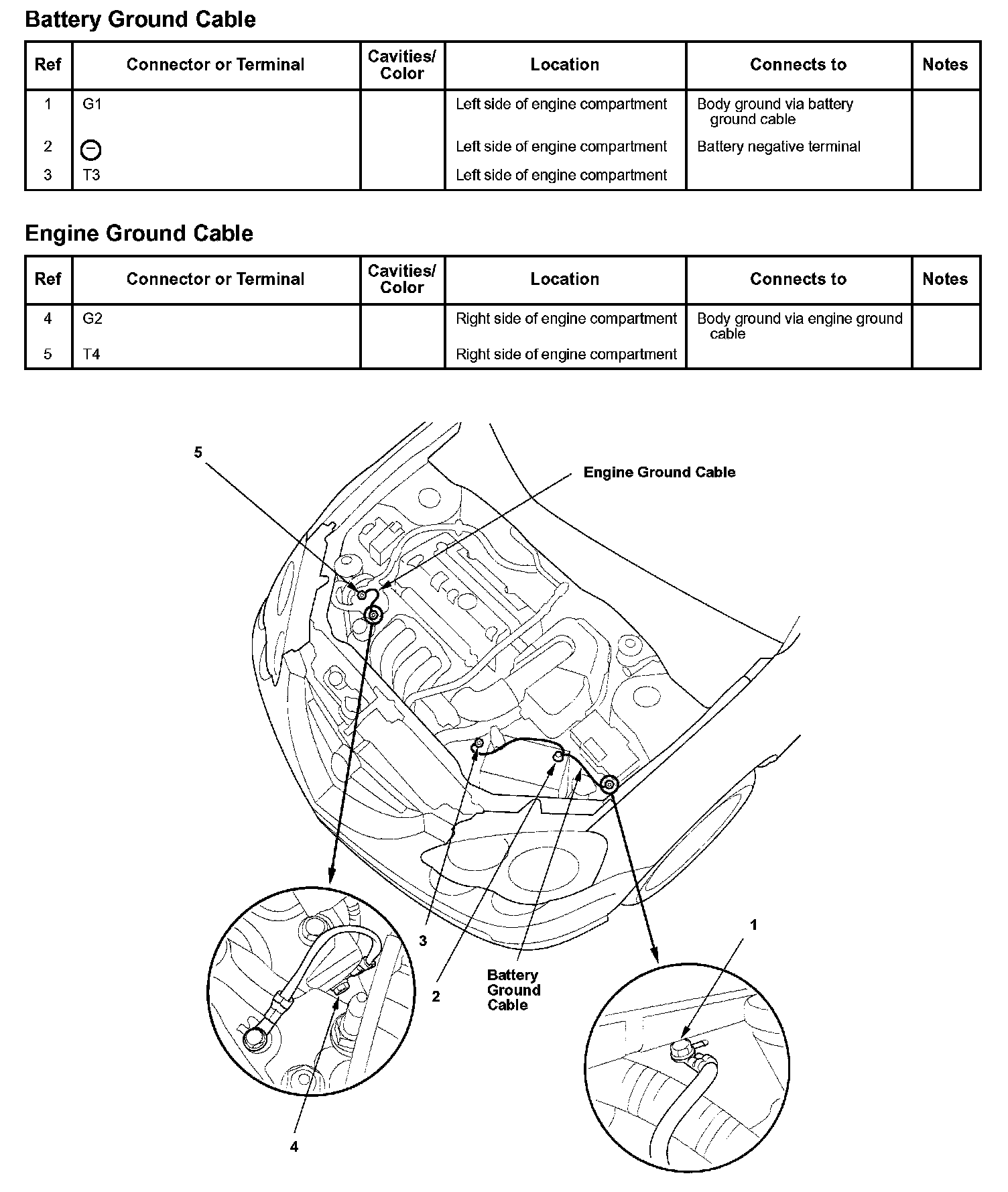

Battery Ground Cable/Engine Ground Cable:
