Home >> Acura >> 2002 >> RSX L4-2.0L (VTEC) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> System Diagram >> Splice and Junction Connector Details >> Circuit M22 A/T Neutral Position

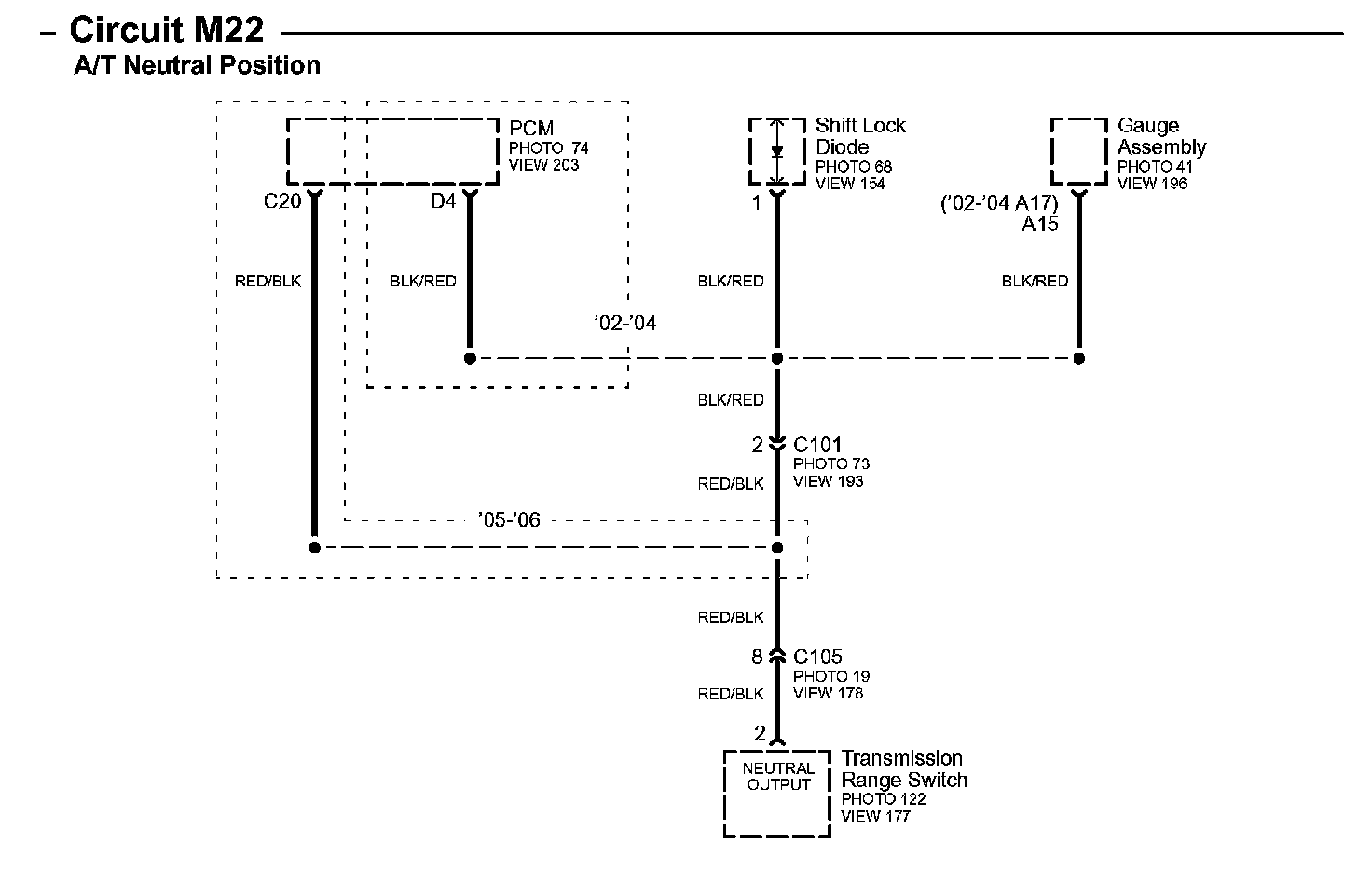

Circuit M22 A/T Neutral Position

Circuit M22 A/T Neutral Position:
