Home >> Acura >> 2002 >> RSX L4-2.0L (VTEC) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> Turn Signals >> Turn Signal Lamp

Turn Signal Lamp

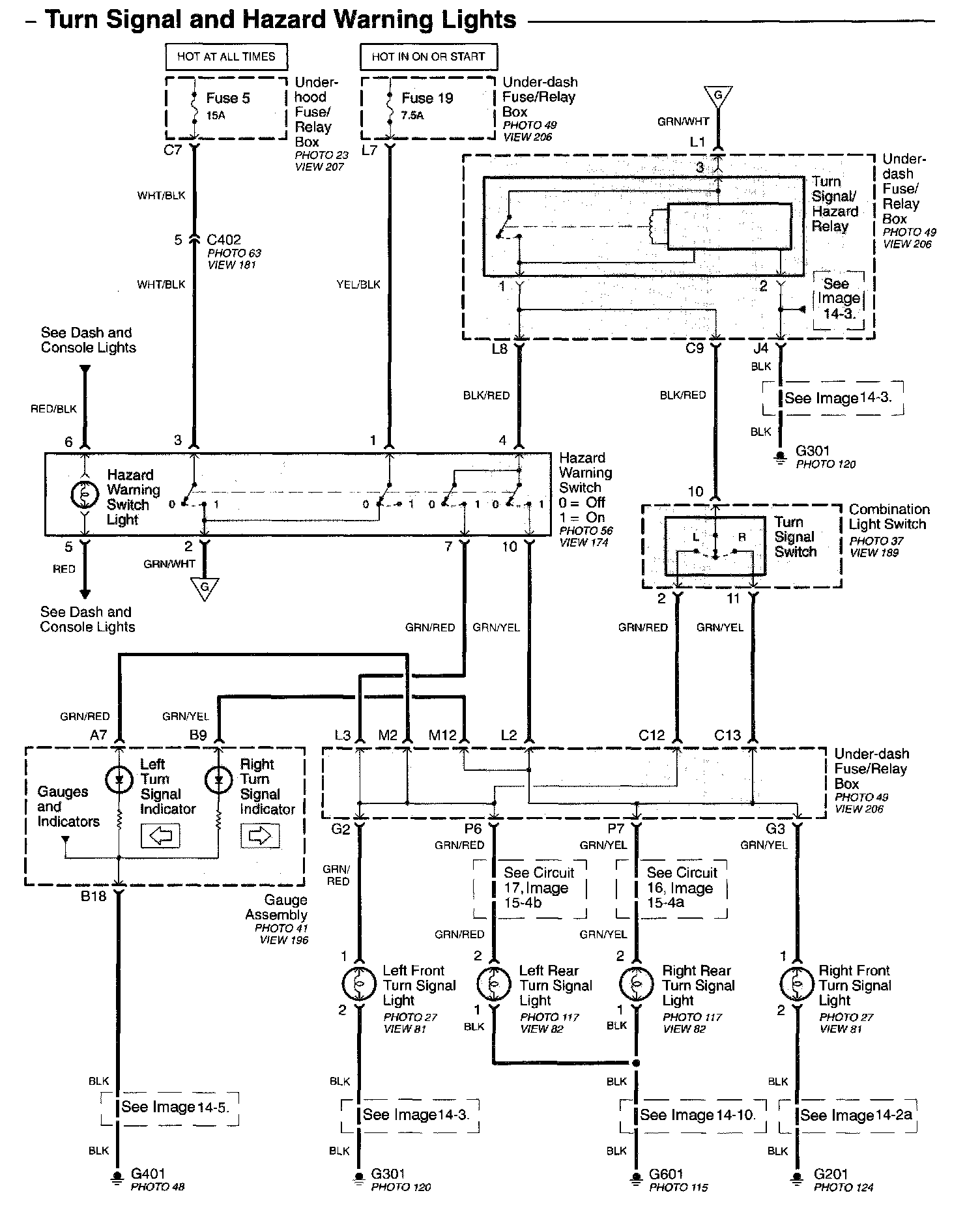

Exterior Lights (Turn Signal And Hazard Warning Lights) Image 110-6:
