Exterior Lights

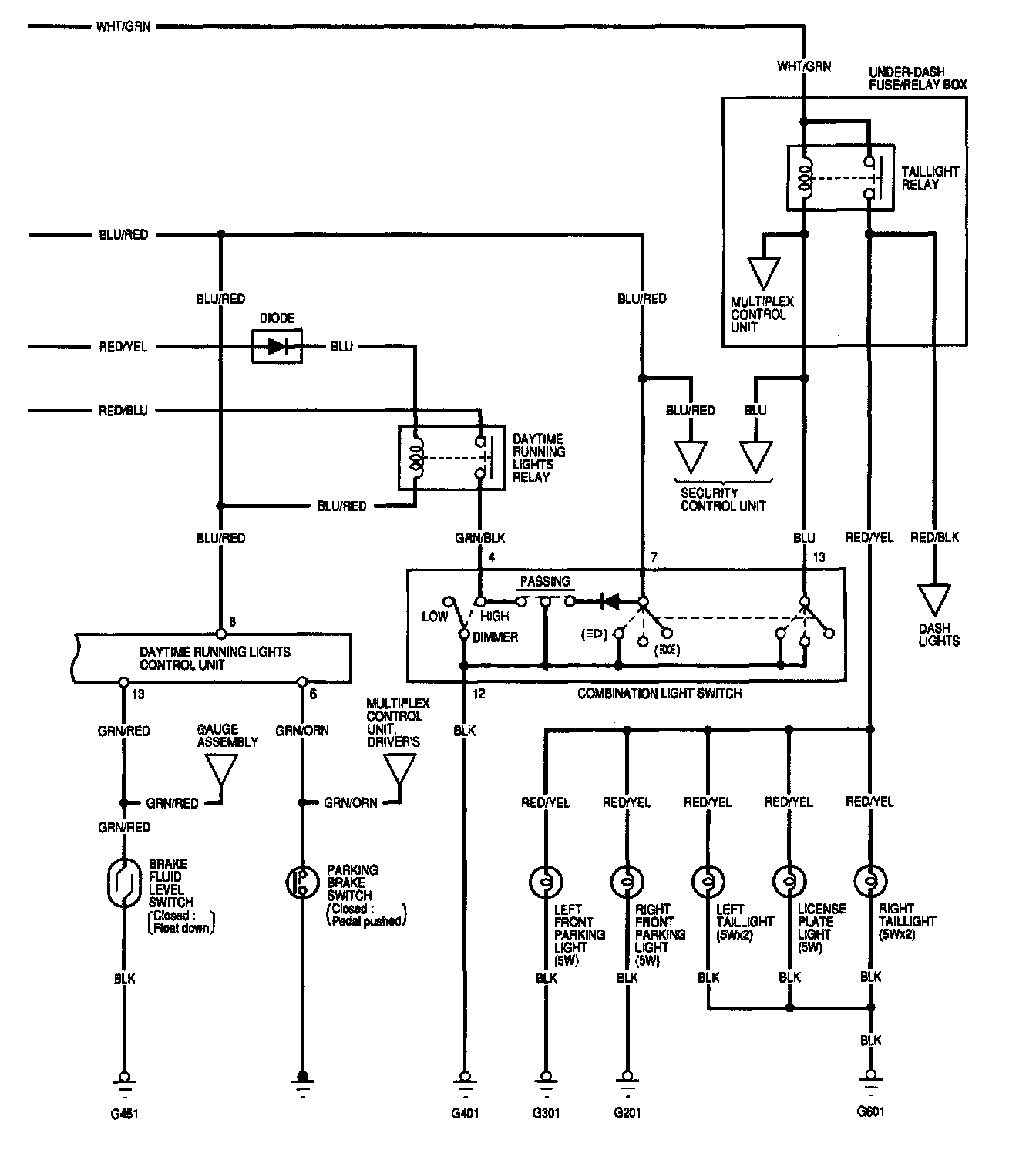

Exterior Lights - Circuit Diagram (USA):

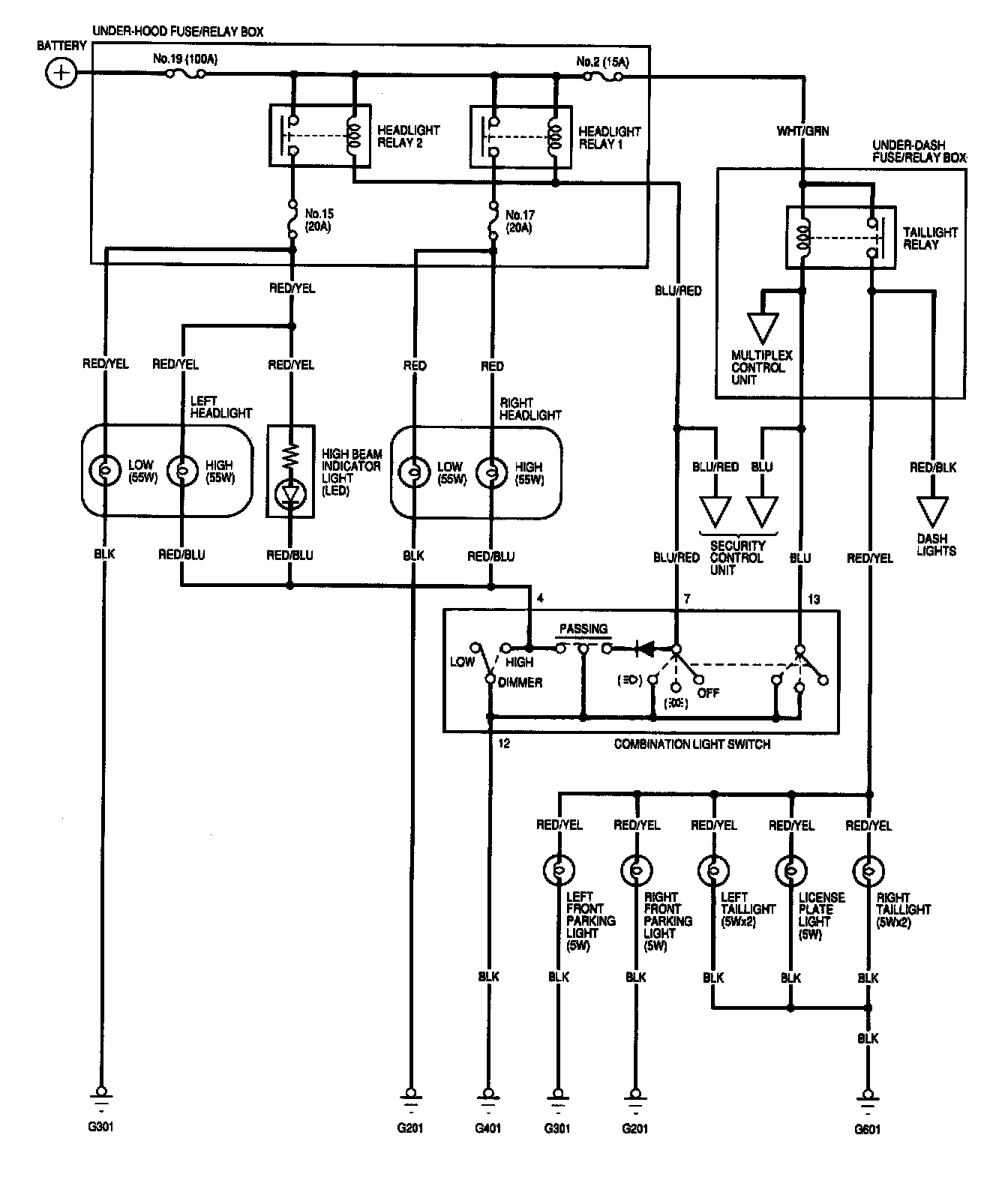

Exterior Lights - Circuit Diagram (Canada) Image 22-74:

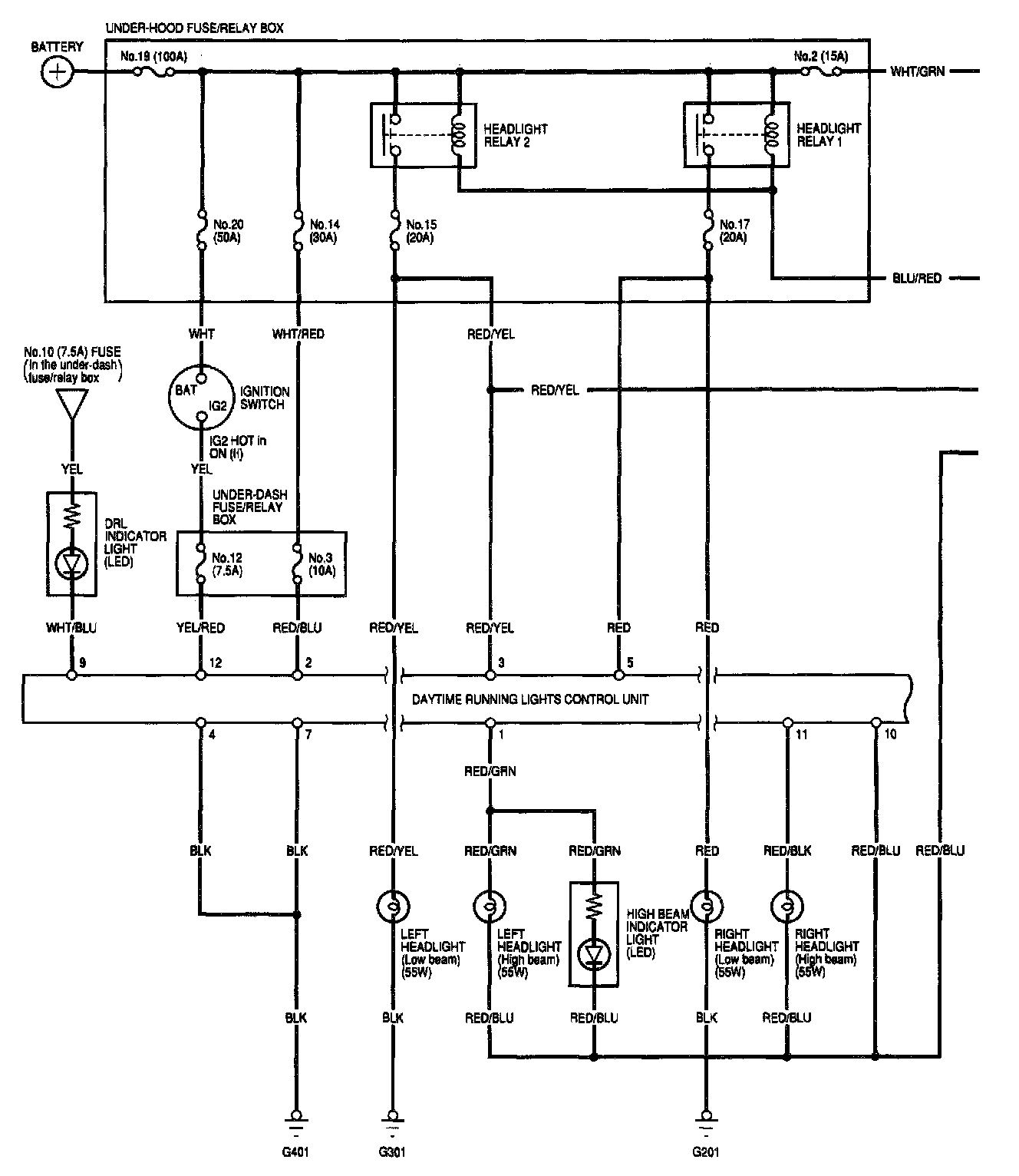

Exterior Lights - Circuit Diagram (Canada) Image 22-75:
