Home >> Acura >> 2002 >> RSX L4-2.0L (VTEC) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Number >> Diagram Set 89 (A/T Gear Position Indicator)

Diagram Set 89 (A/T Gear Position Indicator)

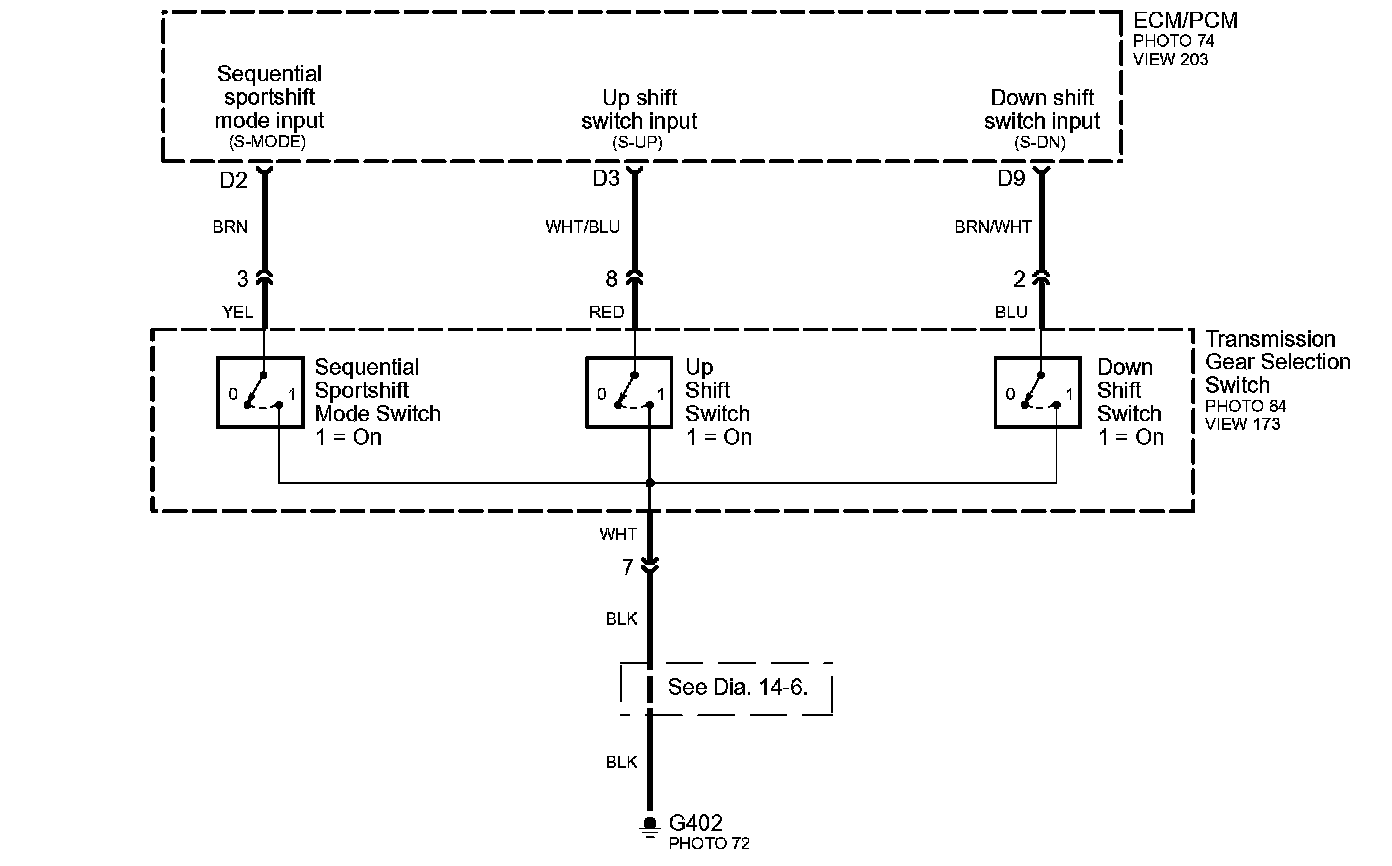

Diagram 89-0:

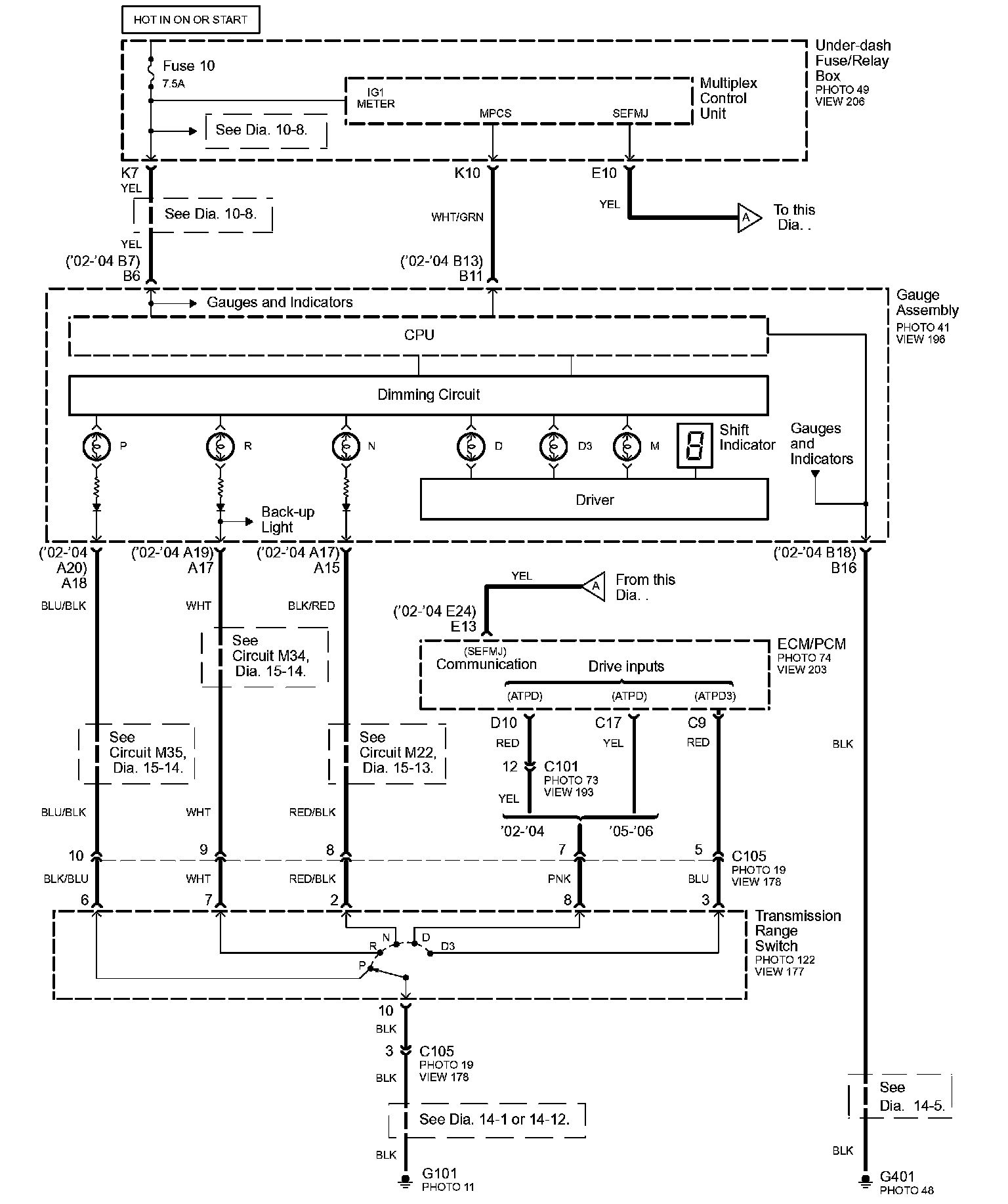

Diagram 89-1:
