Home >> Acura >> 2002 >> RSX L4-2.0L (VTEC) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Number >> Diagram Set 64 (Rear Window Defogger)

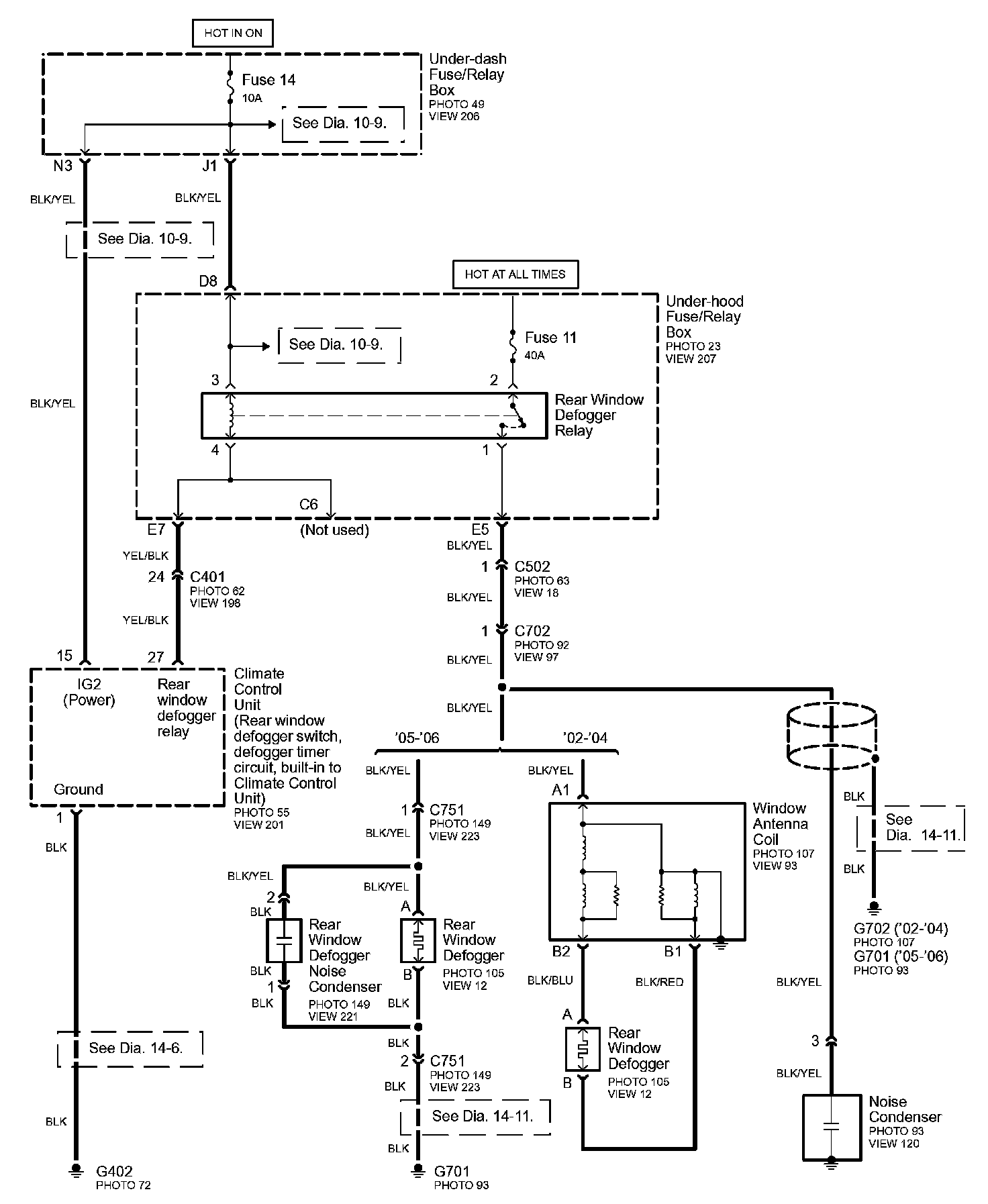

Diagram Set 64 (Rear Window Defogger)

Diagram 64:
