Home >> Acura >> 2002 >> RSX L4-2.0L (VTEC) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Number >> Diagram Set 44 (ABS (Anti-Lock Brake System))

Diagram Set 44 (ABS (Anti-Lock Brake System))

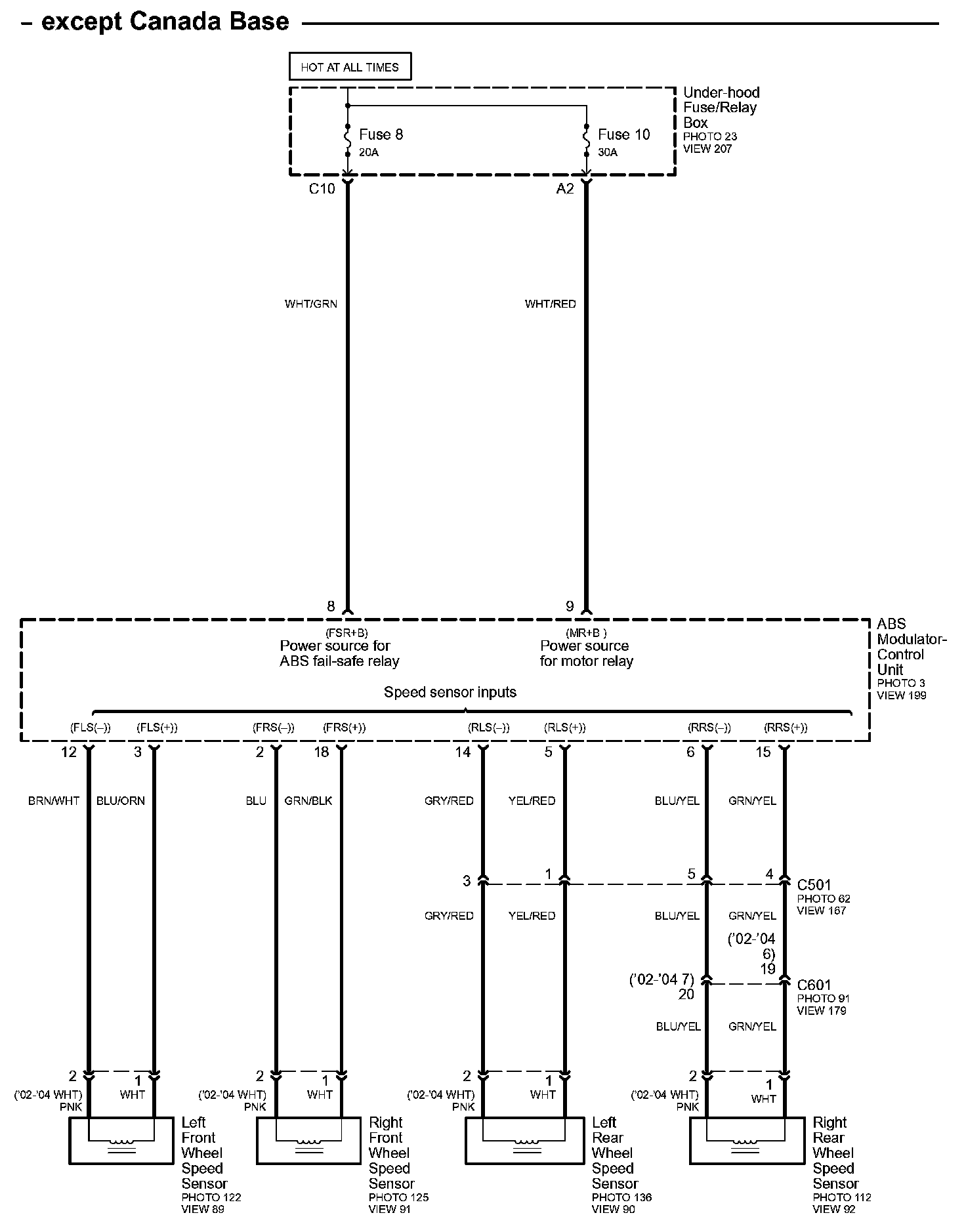

Diagram 44-0:

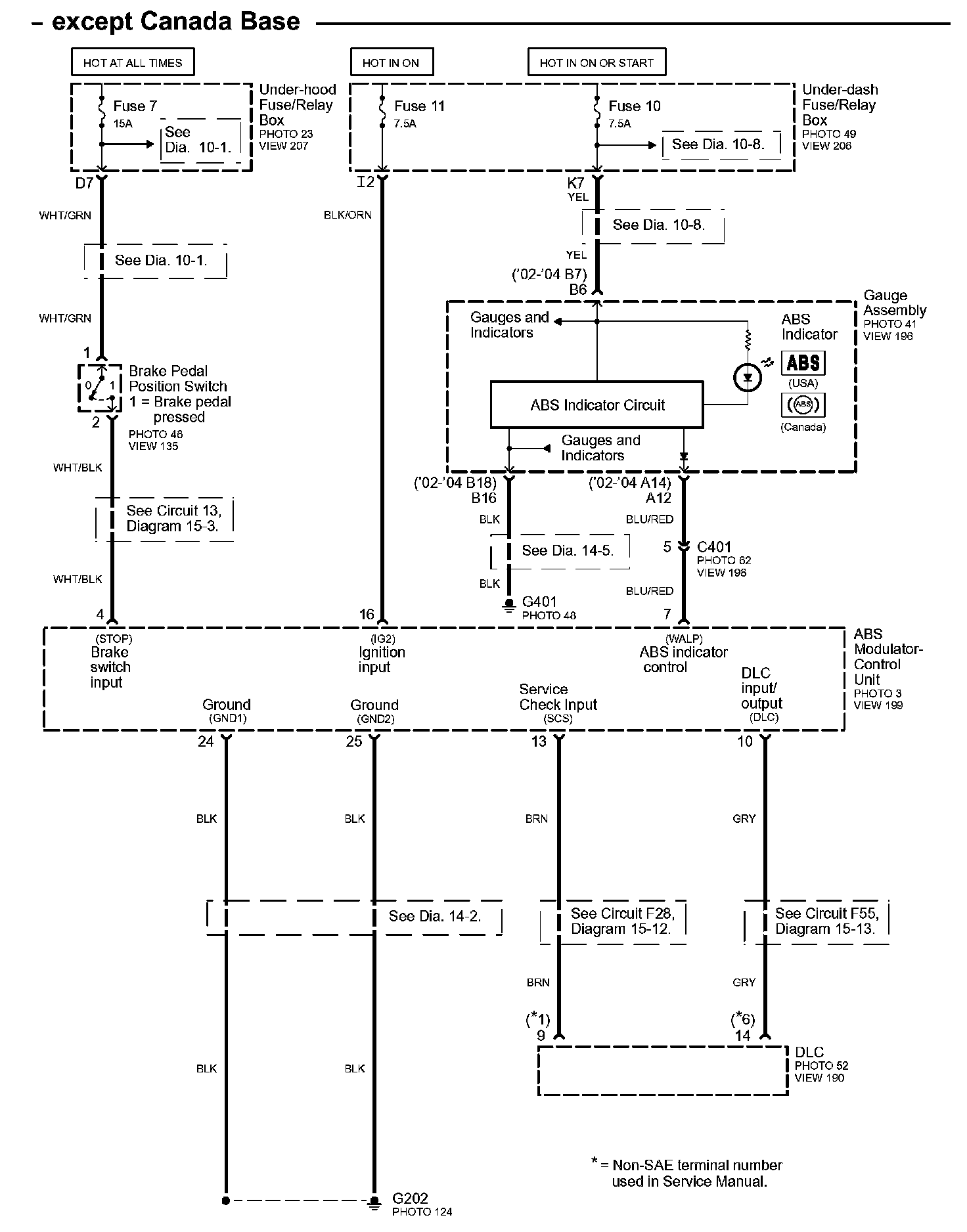

Diagram 44-1:
