Home >> Acura >> 2002 >> RSX L4-2.0L (VTEC) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Number >> Diagram Set 21 (Starting System)

Diagram Set 21 (Starting System)

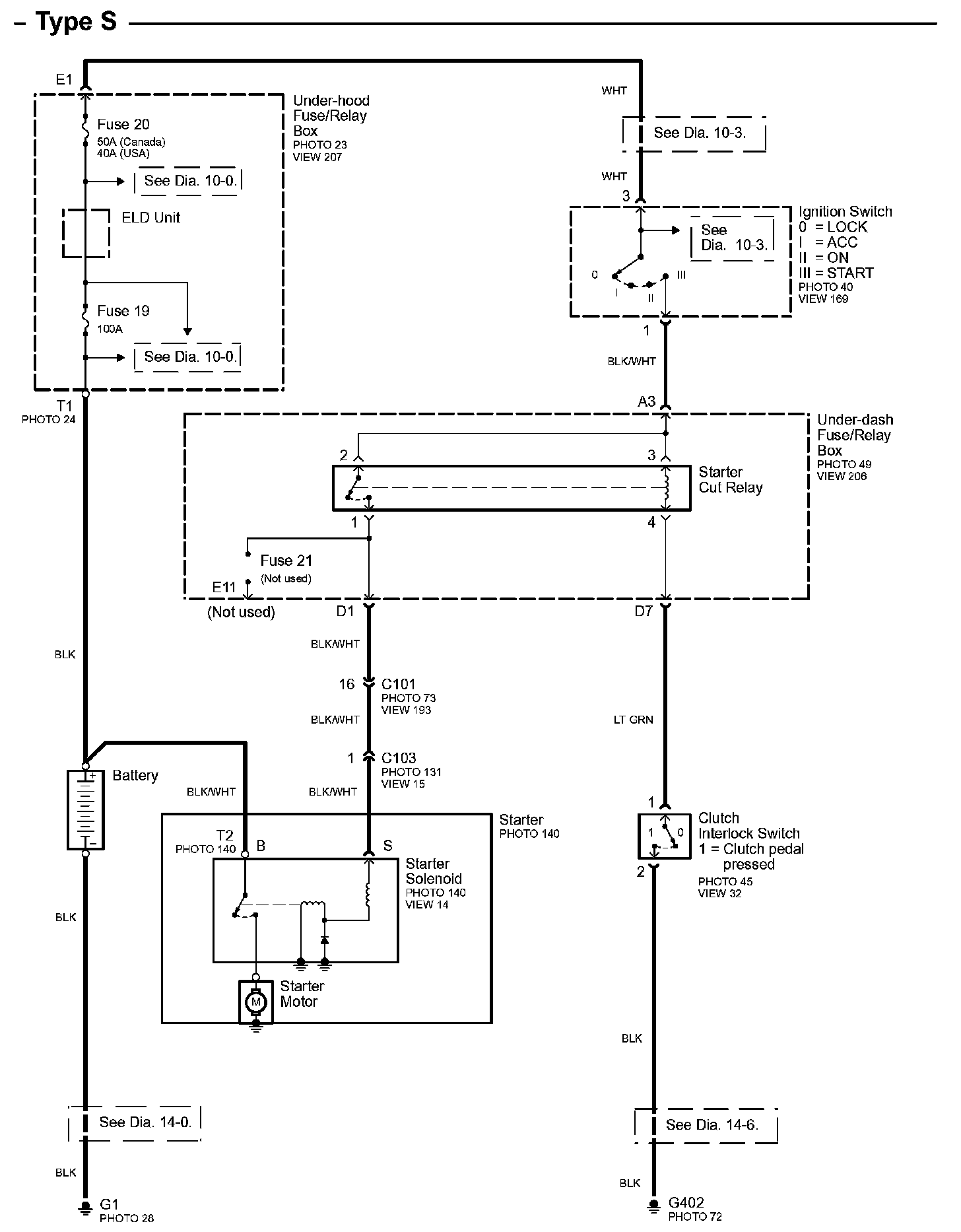

Diagram 21-0:

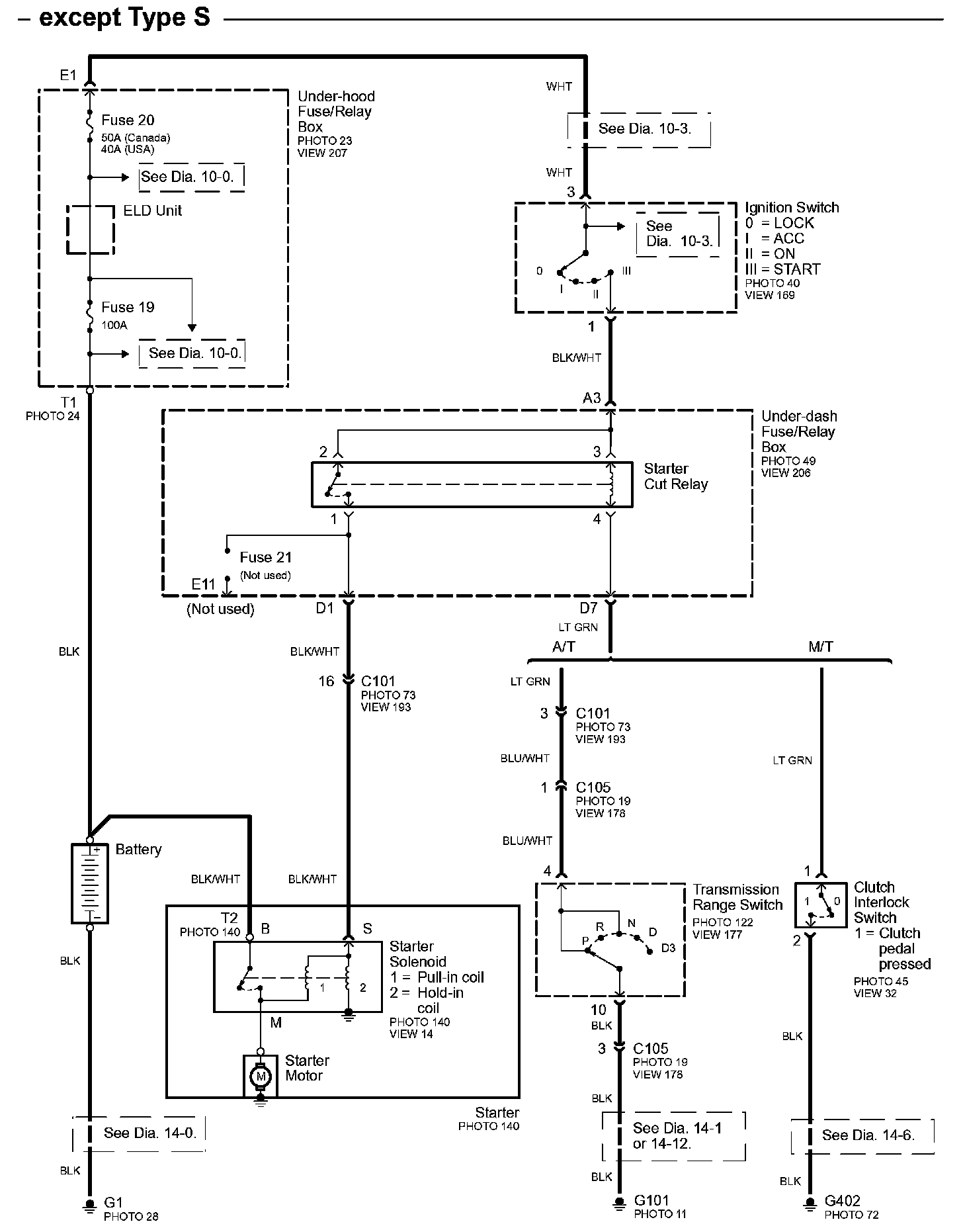

Diagram 21-1:
