Home >> Acura >> 2002 >> RSX L4-2.0L (VTEC) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Number >> Diagram Set 155 (Accessory Power Sockets)

Diagram Set 155 (Accessory Power Sockets)

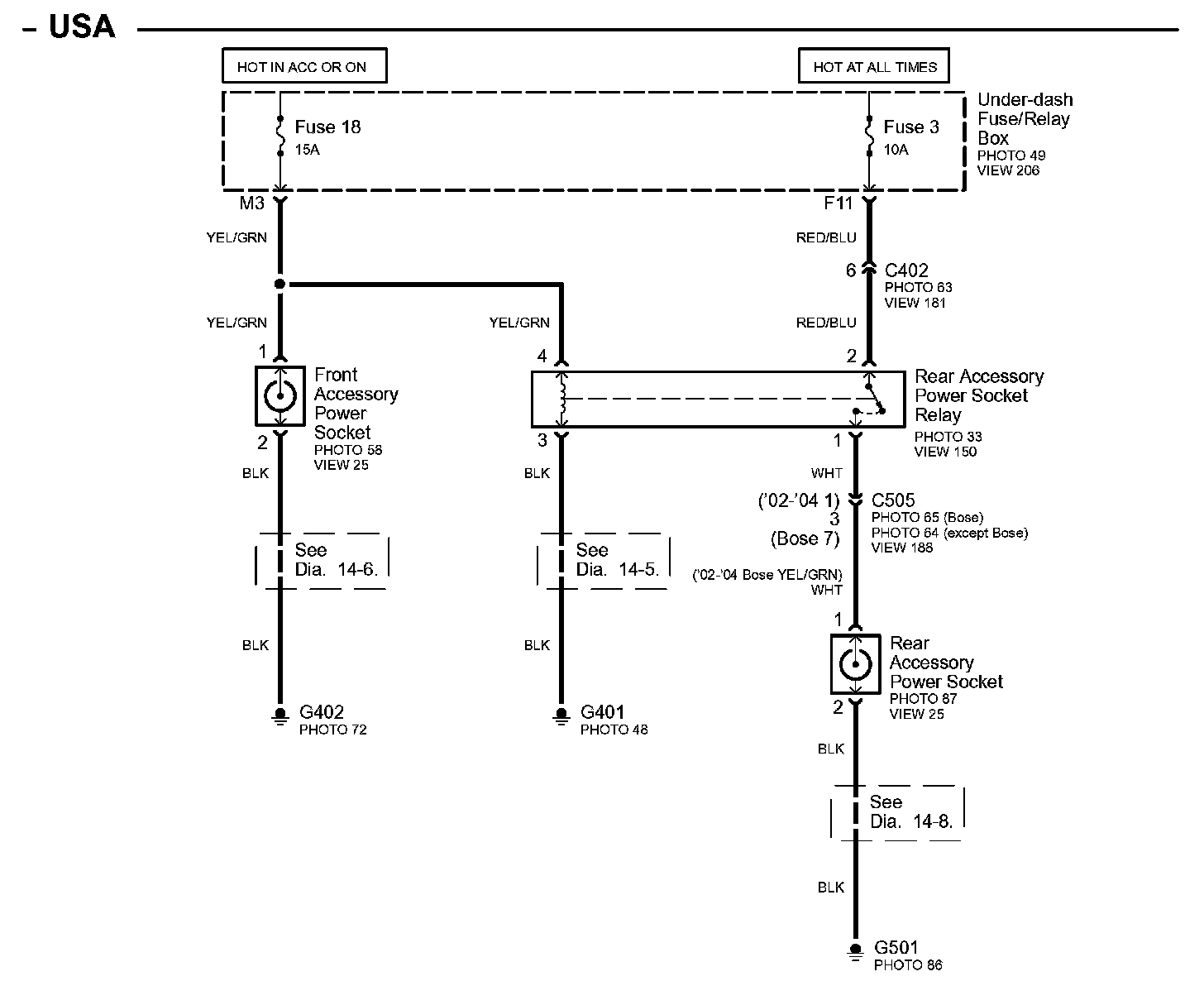

Diagram 155-0:



Diagram 155-1:
