Home >> Acura >> 2002 >> RSX L4-2.0L (VTEC) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Number >> Diagram Set 152 (Cellular Phone System)

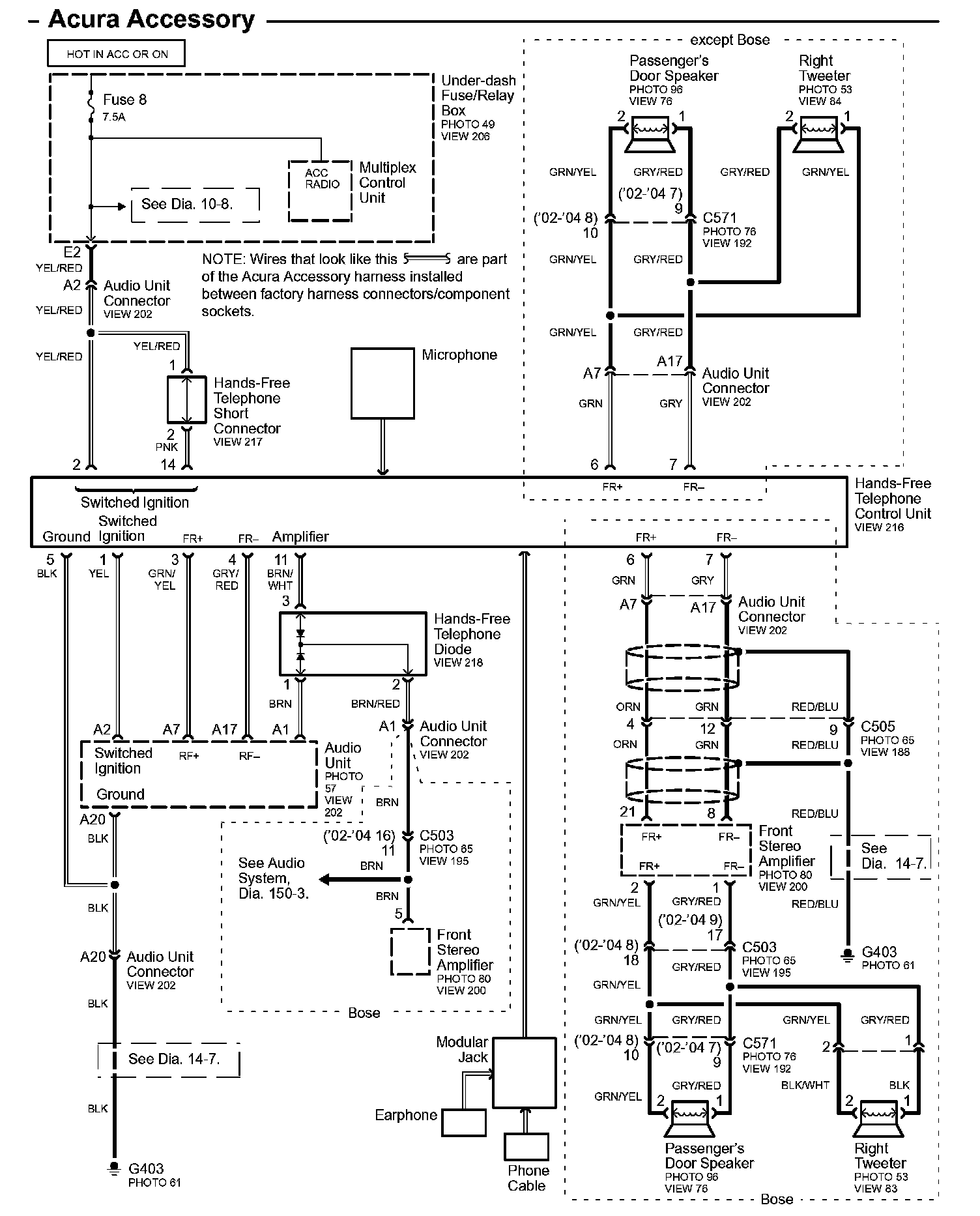

Diagram Set 152 (Cellular Phone System)

Diagram 152:
