Home >> Acura >> 2002 >> RSX L4-2.0L (VTEC) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Number >> Diagram Set 122 (Moonroof)

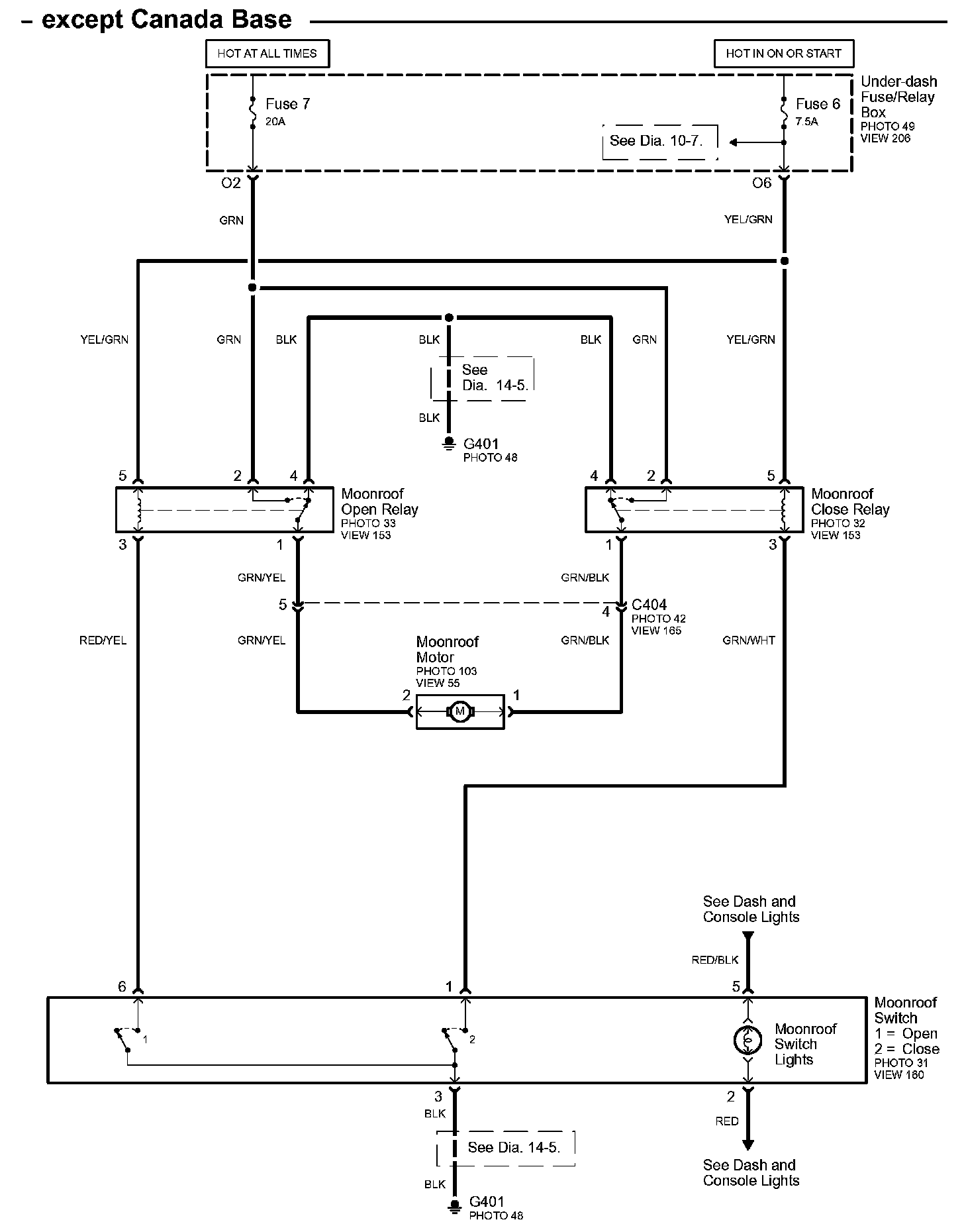

Diagram Set 122 (Moonroof)

Diagram 122:
