Diagram Set 110 (Exterior Lights)
Diagram Set 110 (Exterior Lights)

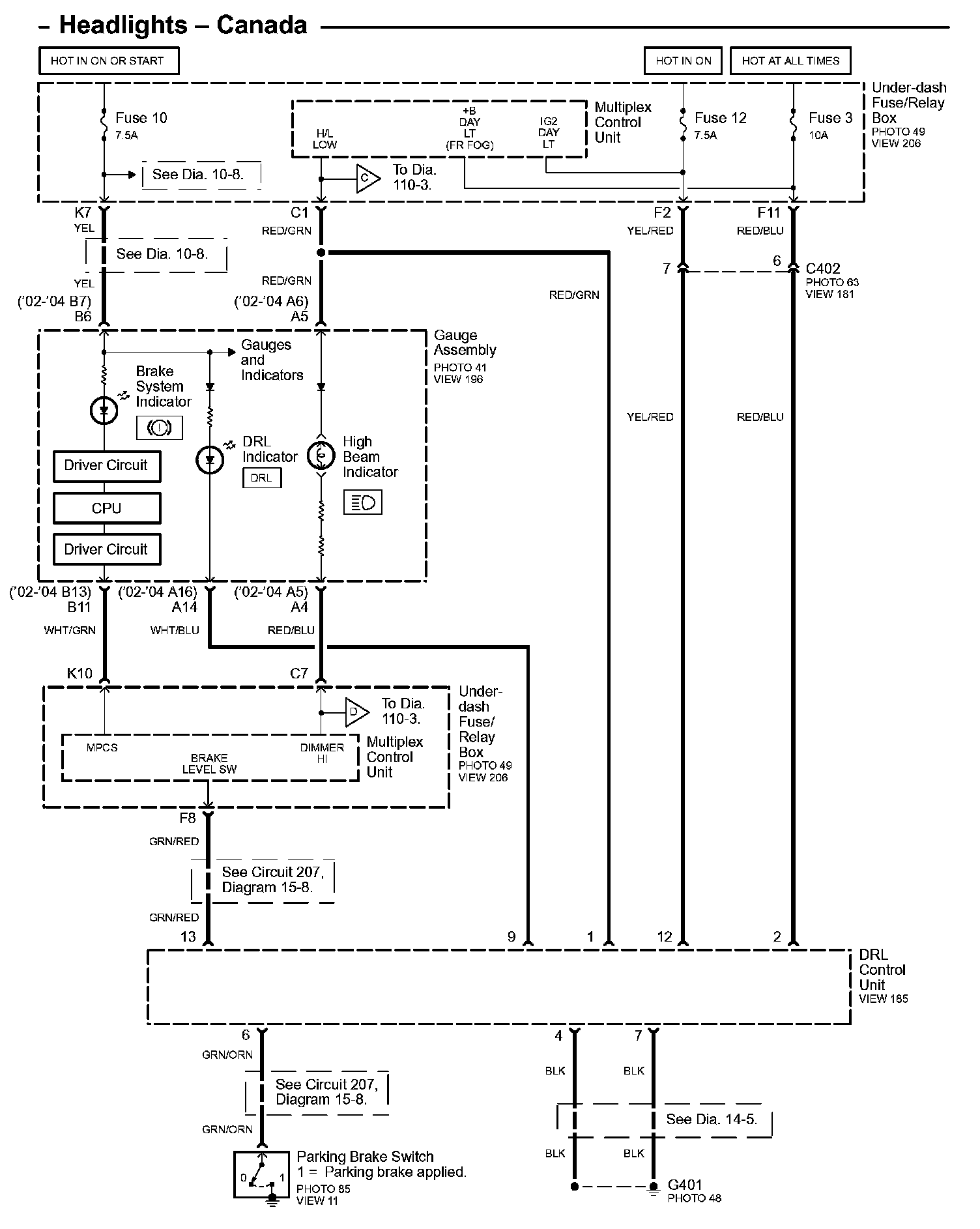

Diagram 110-0:

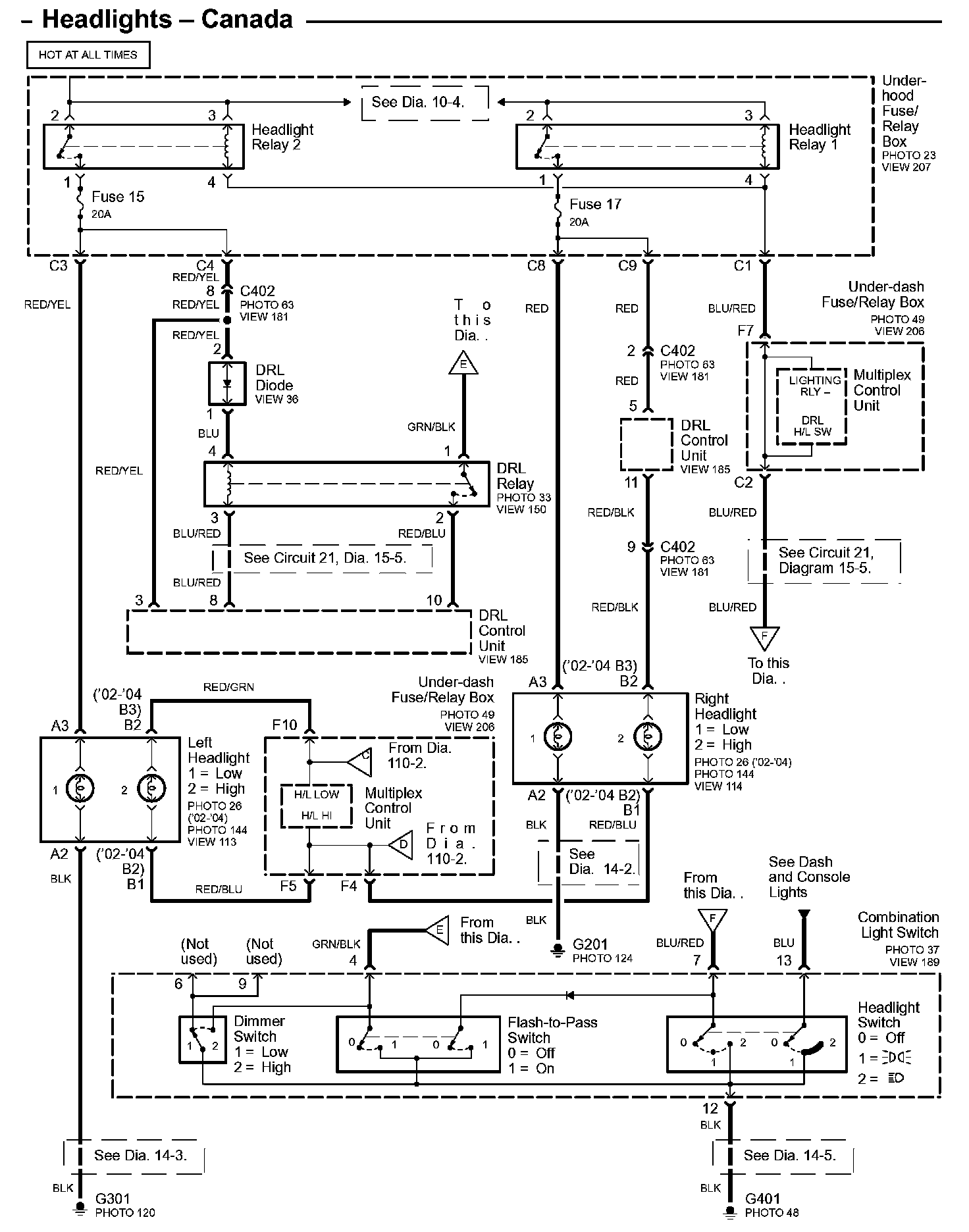

Diagram 110-2:
Diagram 110-3:
Diagram 110-5:
Diagram 110-6:
Diagram 110-7:
Diagram 110-8:
Diagram 110-9:
Diagram 110-10:
