Home >> Acura >> 2002 >> RSX L4-2.0L (VTEC) >> Repair and Diagnosis >> Diagrams >> Connectors >> Connector ID By Location On Harness >> Floor Wire Harness (front side)

Floor Wire Harness (front side)

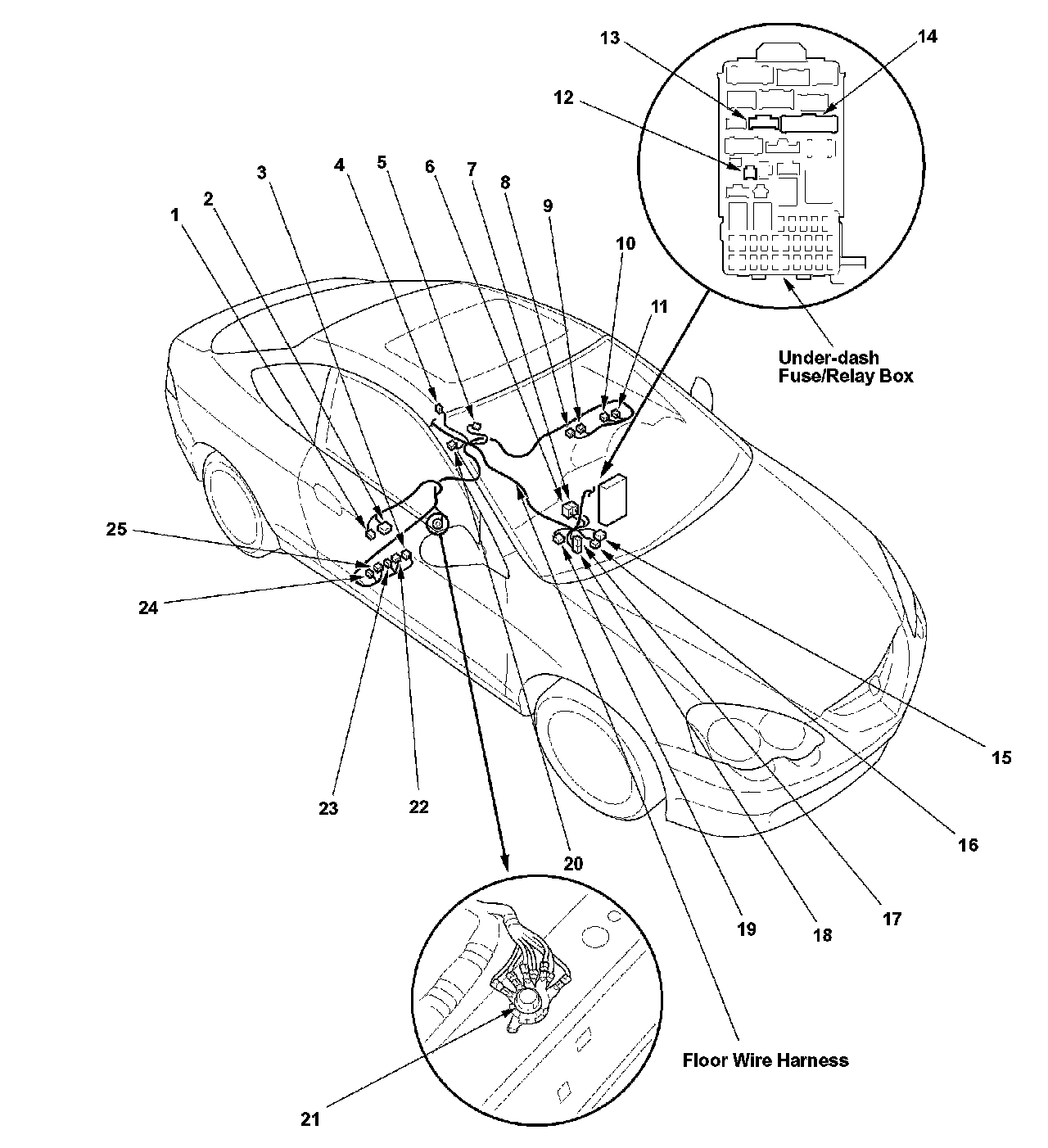

Harness Location View:

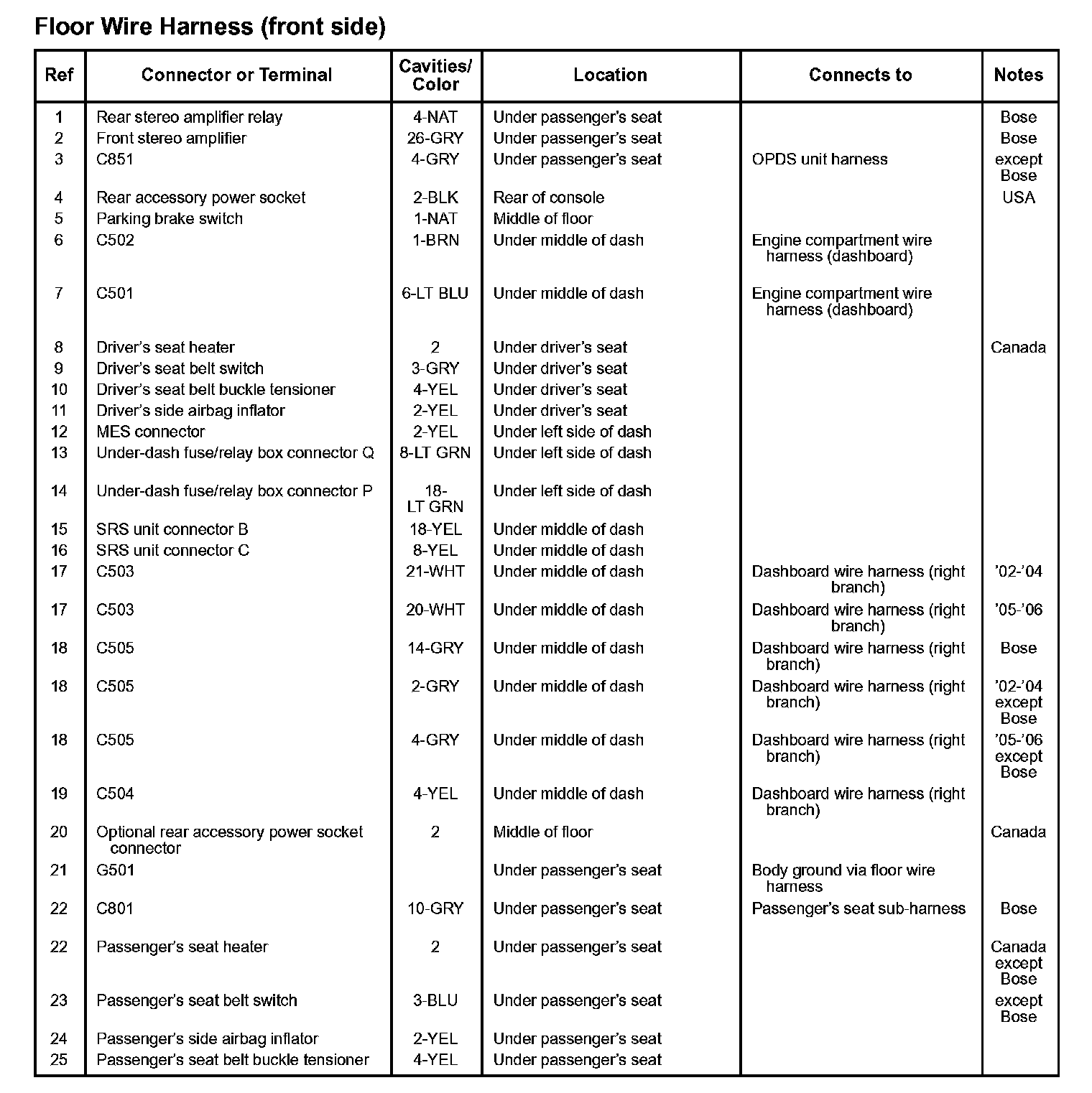

Floor Wire Harness (front Side):
