Floor Wire Harness (SRS branch) (except Bose)

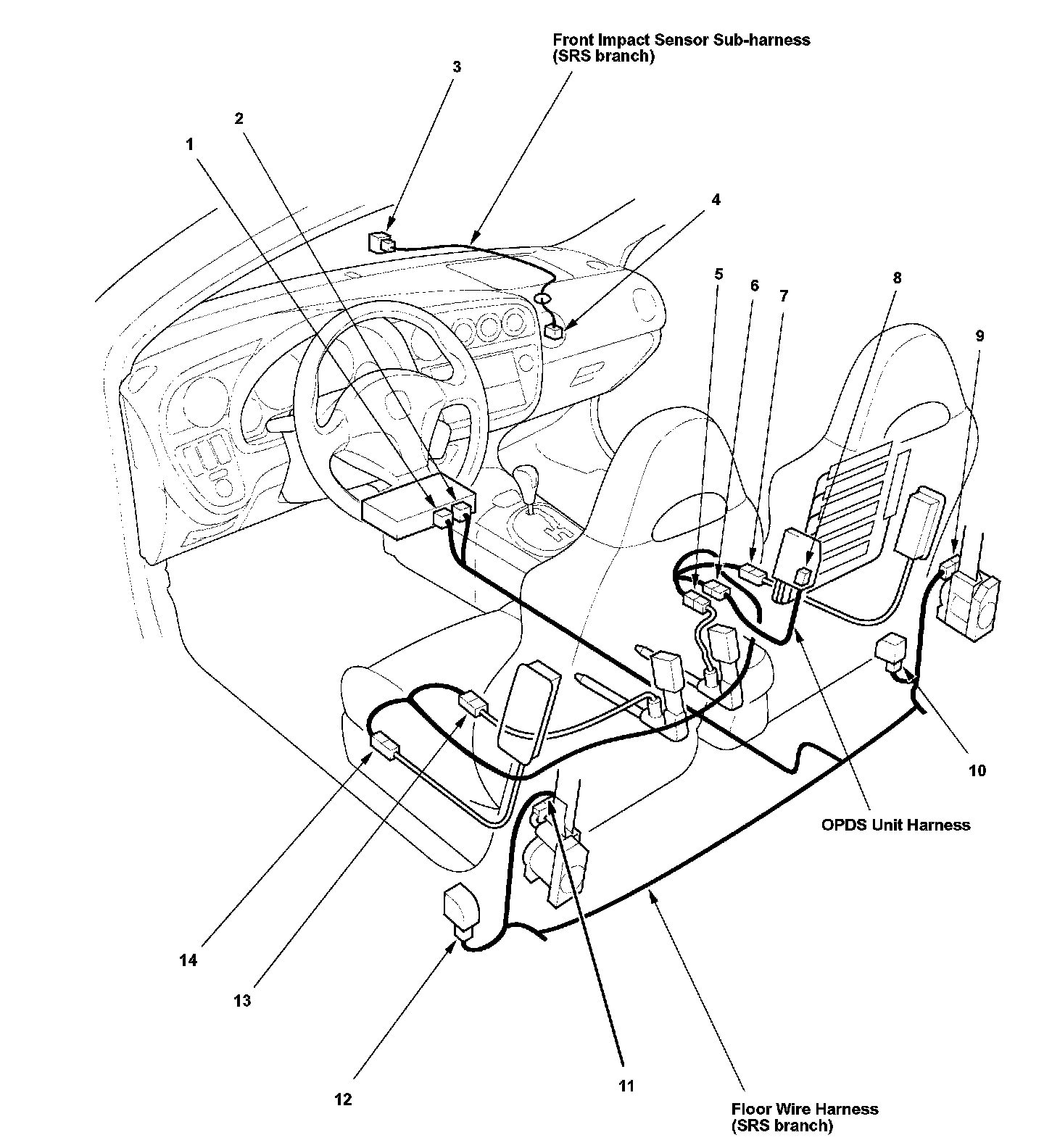

Harness Location View:

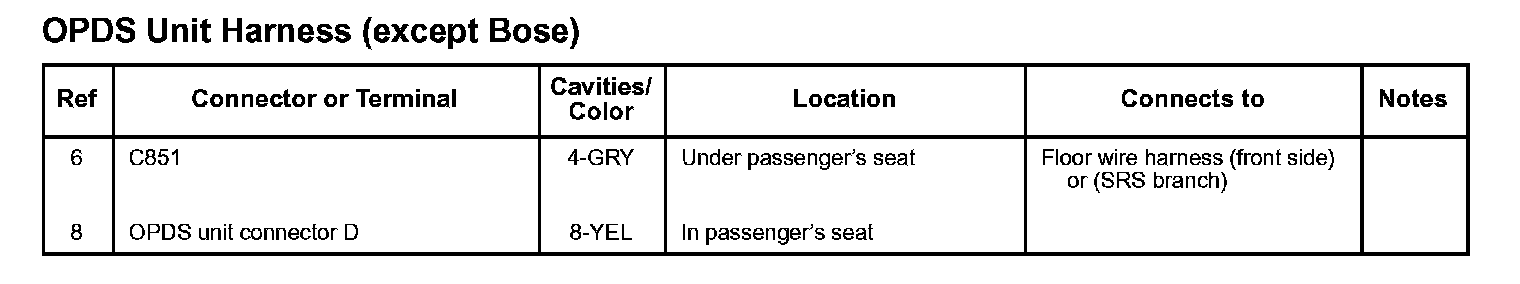

OPDS Unit Harness (except Bose):
