Home >> Acura >> 2002 >> RSX L4-2.0L (VTEC) >> Repair and Diagnosis >> Diagrams >> Connectors >> Connector ID By Location On Harness >> Engine Compartment Wire Harness (left branch)

Engine Compartment Wire Harness (left branch)

Harness Location View:

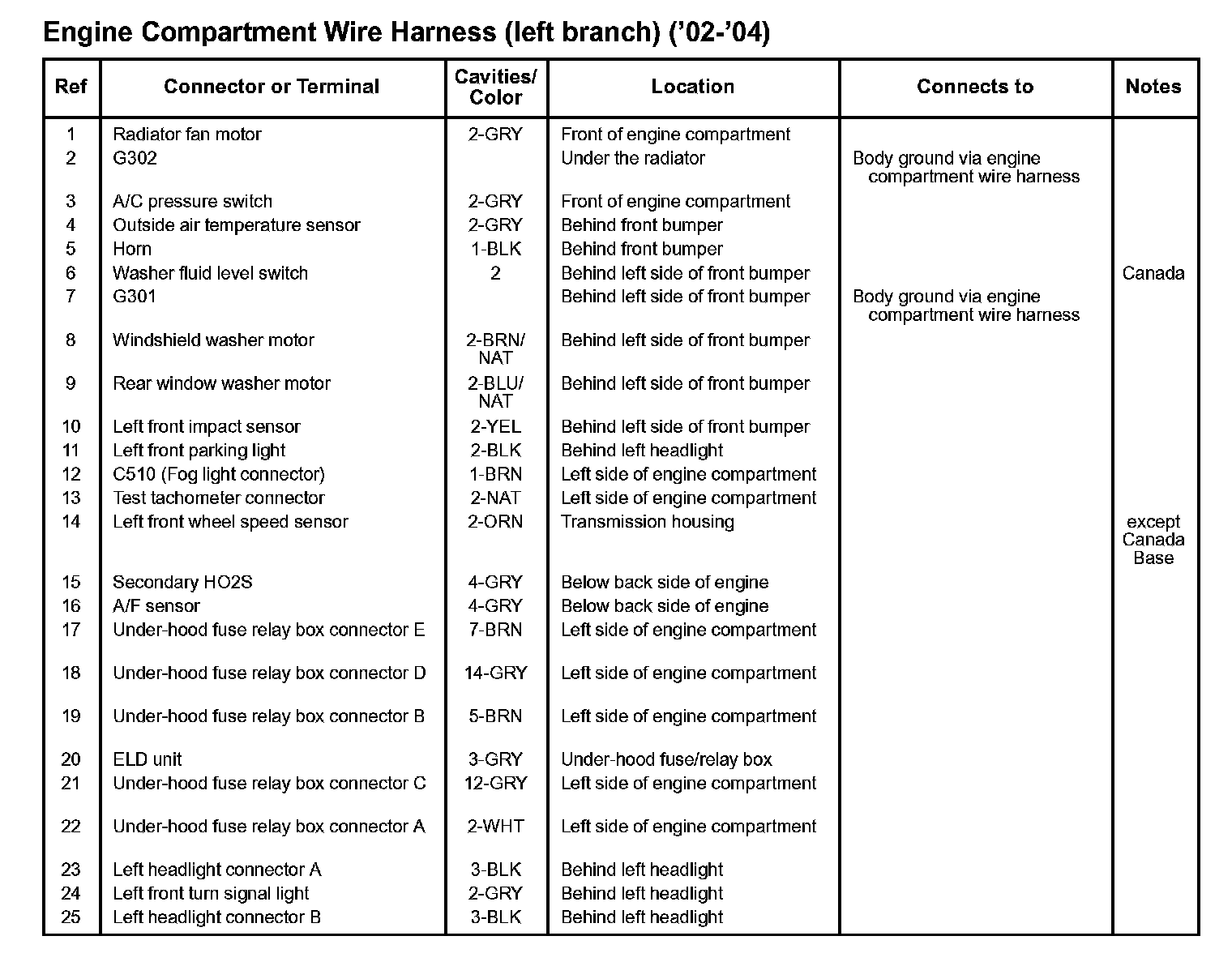

Engine Compartment Wire Harness (left branch):
