Home >> Acura >> 2002 >> RSX L4-2.0L (VTEC) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Shift Interlock, A/T >> Shift Interlock Solenoid

Shift Interlock Solenoid

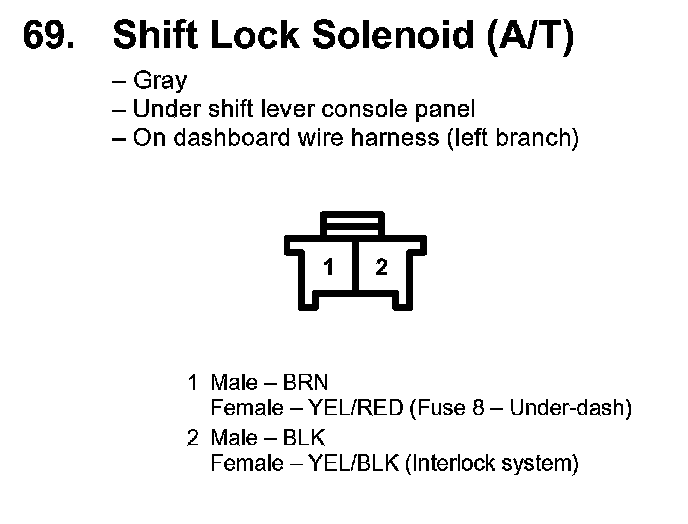

69. Shift Lock Solenoid (A/T):
