Home >> Acura >> 2002 >> RSX L4-2.0L (VTEC) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Radio, Stereo, and Compact Disc >> Audio Control Relay

Audio Control Relay

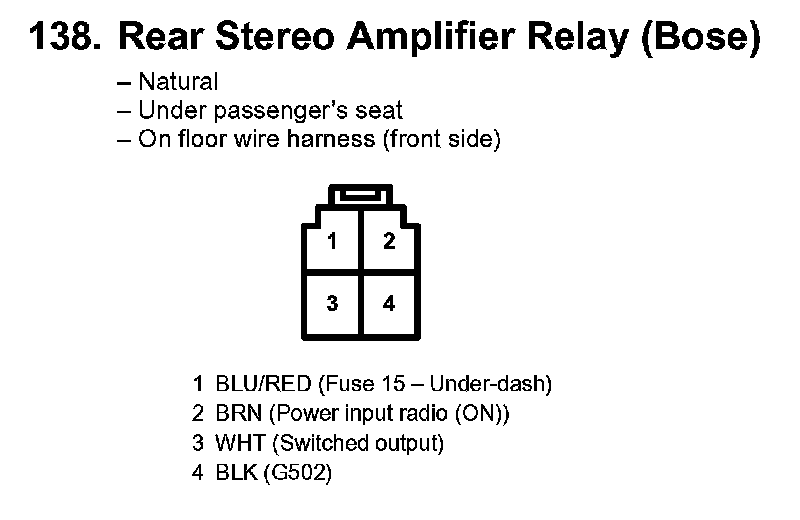

138. Rear Stereo Amplifier Relay (Bose):
