Home >> Acura >> 2002 >> RSX L4-2.0L (VTEC) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Window Motor >> System Diagram

System Diagram

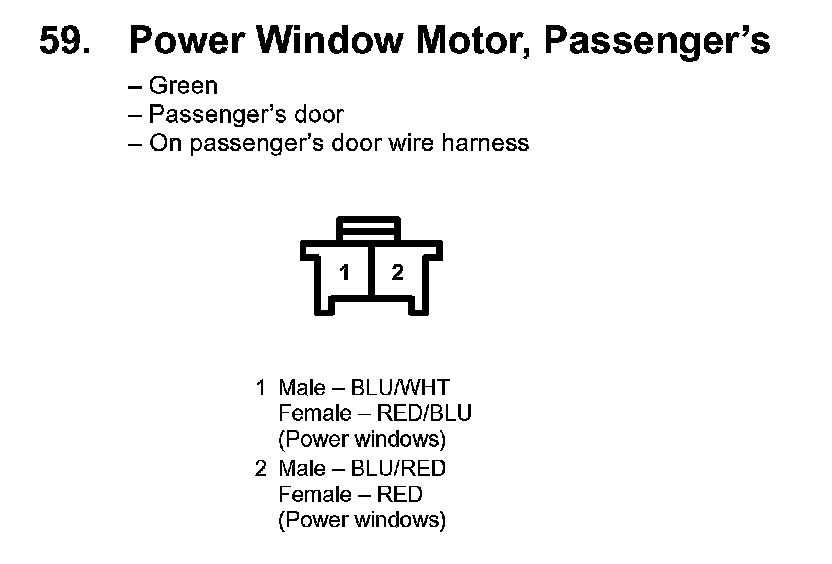

59. Power Window Motor, Passenger's:

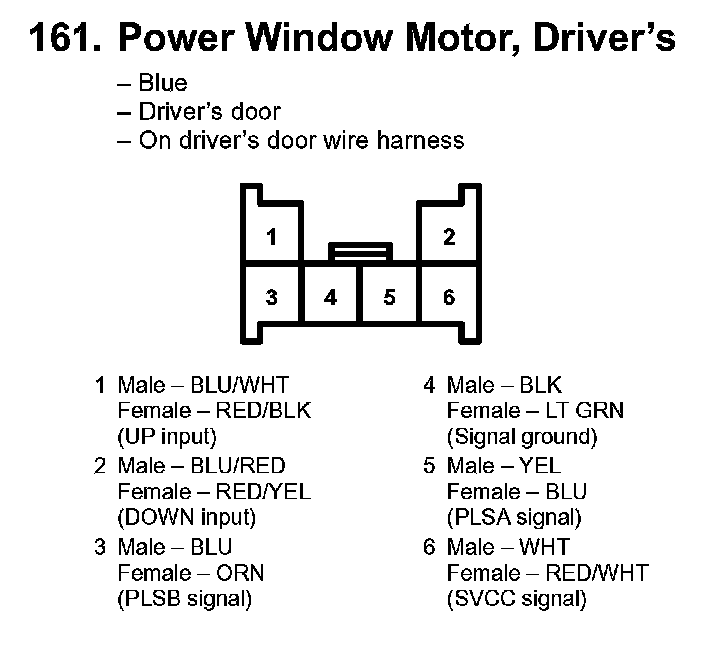

161. Power Window Motor, Driver's:
