Cruise Control Switch
Cruise Control Switch

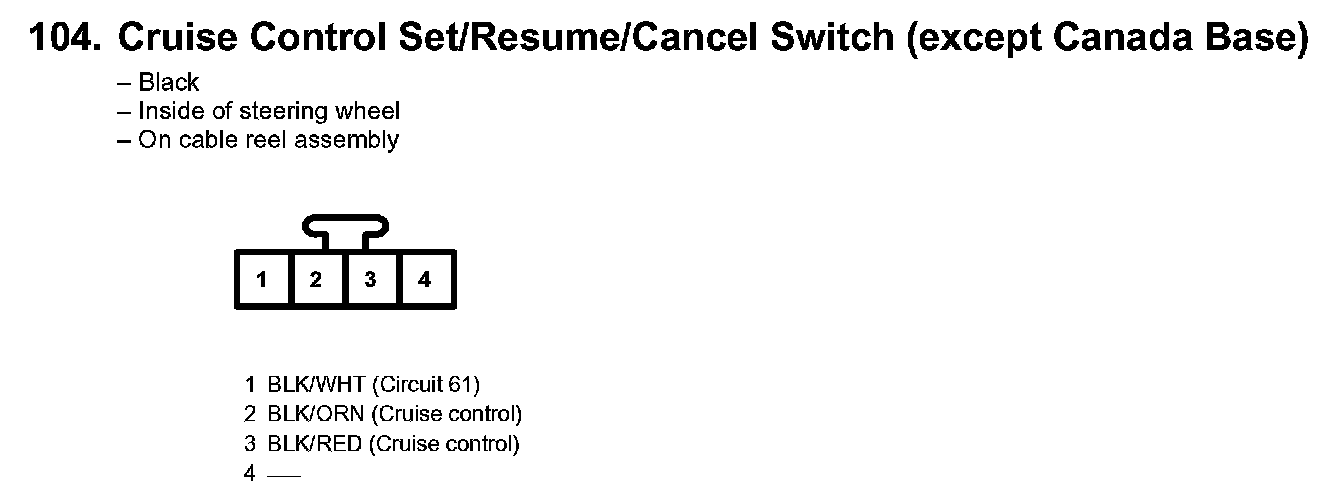

104. Cruise Control Set/Resume/Cancel Switch (except Canada Base):

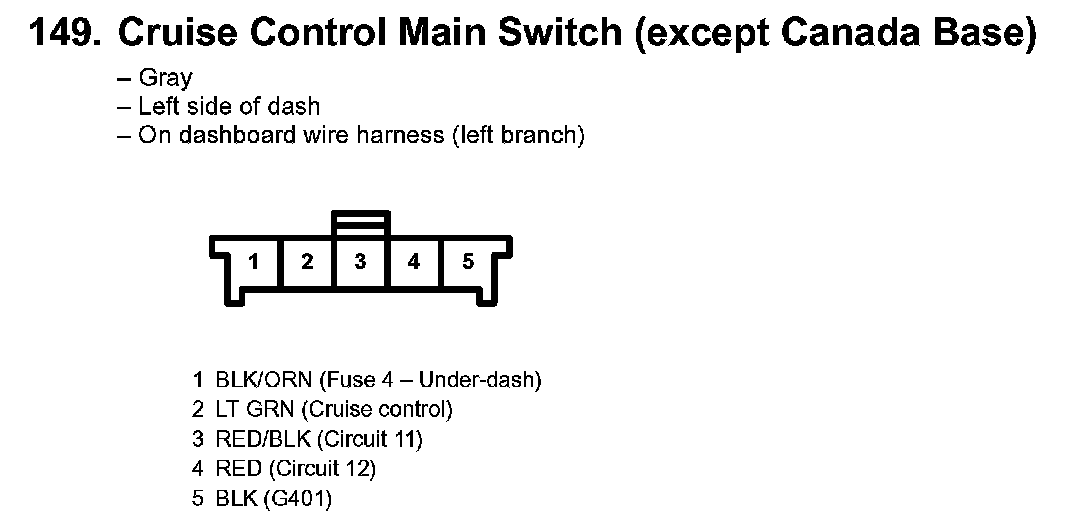

149. Cruise Control Main Switch (except Canada Base):
