Home >> Acura >> 2002 >> RSX L4-2.0L (VTEC) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 76-100 >> 100

View 76-100: 100

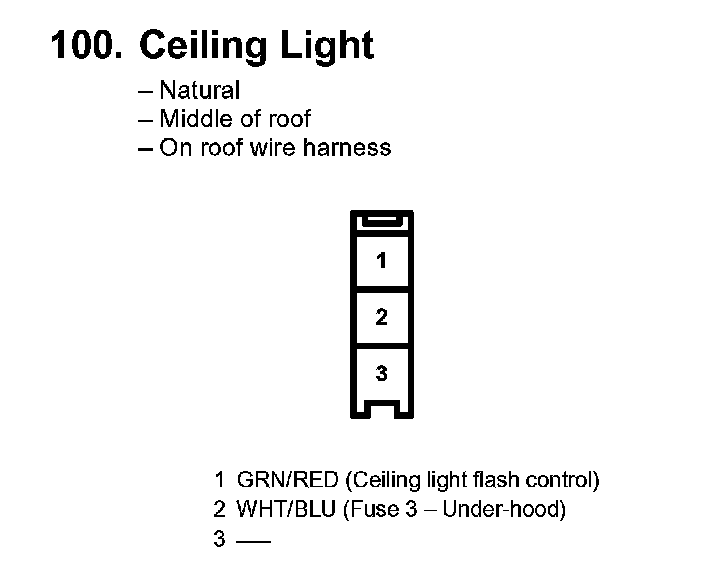

100. Ceiling Light:
